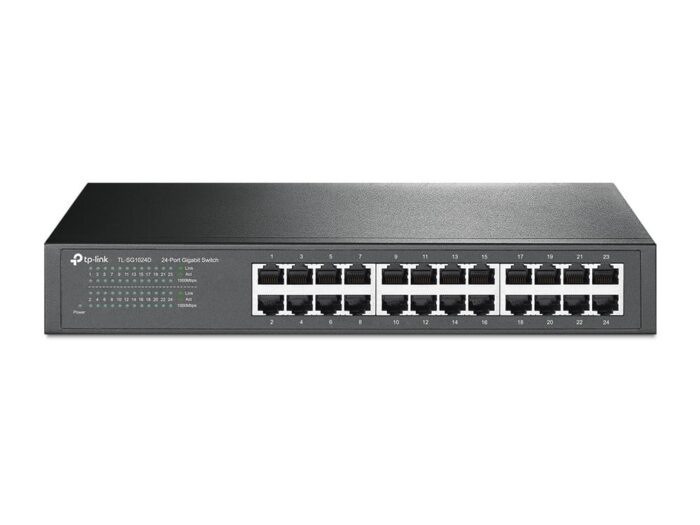

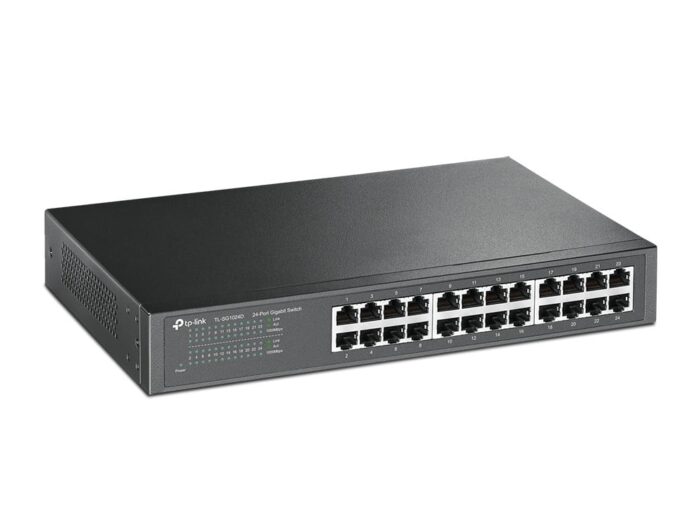

TP-Link TL-SG1024D 24-Port Gigabit Switch

The TP-Link TL-SG1024D is an advanced unmanaged switch designed to enhance network connectivity for businesses and organizations. It features 24 RJ-45 Ethernet ports that support Gigabit Ethernet speeds (10/100/1000), ensuring high-speed data transfer and reliable performance. With full duplex operation, it allows simultaneous data transmission and reception, maximizing bandwidth efficiency and overall network performance.

This switch is equipped with a substantial MAC address table that can accommodate up to 8000 entries, effectively managing network traffic and making it ideal for environments with large data transfers. Its impressive total switching capacity of 48 Gbit/s guarantees swift and uninterrupted data flow, minimizing the risk of bottlenecks. It adheres to essential networking standards, including IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility with a wide range of network devices and protocols.

Designed for scalability and high performance, the TP-Link TL-SG1024D comes with a DC-in jack for power and supports rack mounting, making it suitable for installation in server rooms or data centers. This switch is an excellent choice for businesses looking to establish a robust network infrastructure that can grow with their needs. With its reliable performance and advanced features, the TL-SG1024D stands out as a top-tier solution in the unmanaged switch market.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
24
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Full duplex
Full duplex
Yes
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
48 Gbit/s
show more


Forwarding rate
35.7 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
10000
show more

Protocols

Supported network protocols
Supported network protocols
CSMA/CD, TCP/IP
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Product colour
Product colour
Grey
show more


LED indicators
Yes
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
13.08 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
44.63 BTU/h
show more

Weight & dimensions

Width
Width
294 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more


User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
