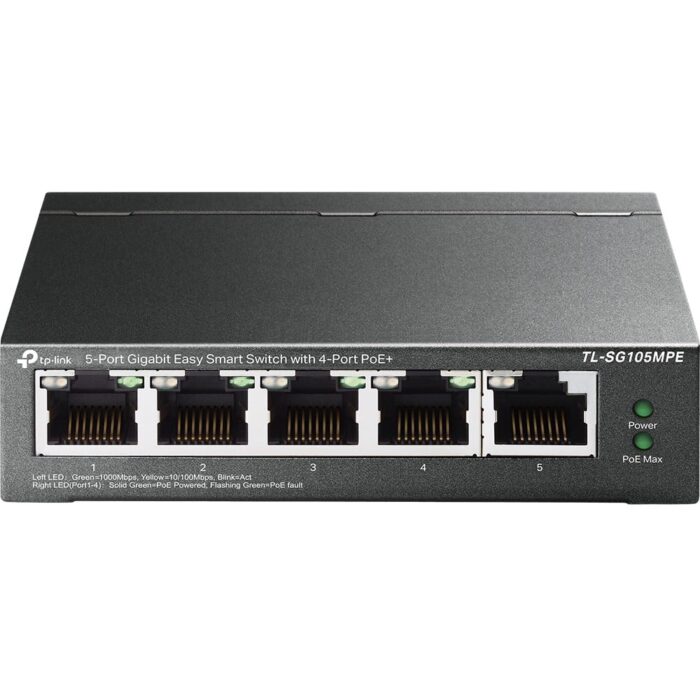

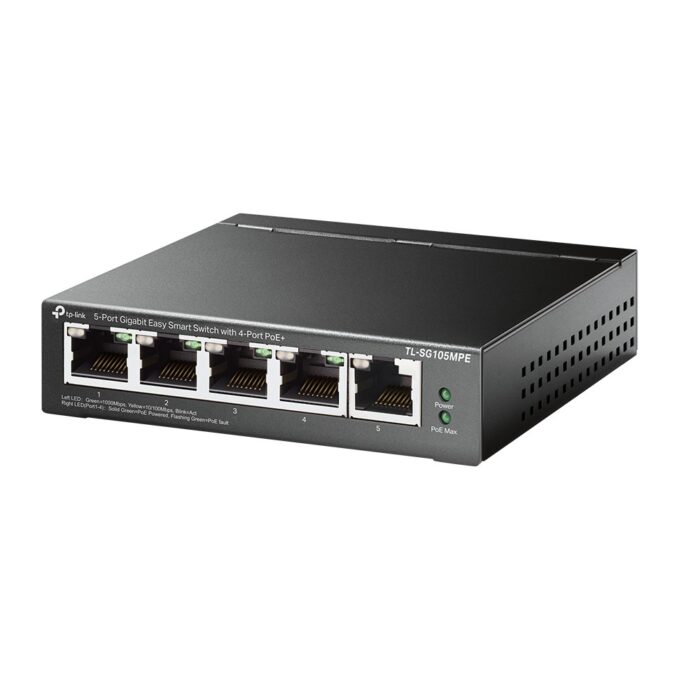

TP-Link TL-SG105MPE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

The TP-Link TL-SG105MPE is a high-performance 5-Port Gigabit Easy Smart Switch designed to improve your network connectivity. It features five Gigabit Ethernet ports, supporting 10/100/1000 Mbps for seamless data transfer and efficient traffic management. The switch boasts a robust MAC address table with 2000 entries and a switching capacity of 10 Gbit/s, ensuring smooth operation even under heavy network loads.

The TL-SG105MPE is equipped with advanced Layer 2 switching capabilities and adheres to multiple networking standards, such as IEEE 802.1Q for VLANs, IEEE 802.1p for CoS, and IEEE 802.3af/at for PoE and PoE+. This compatibility makes it versatile for deployment in various networking environments, suitable for both home and business use. The switch's Power over Ethernet functionality on four of its ports simplifies the installation of PoE-capable devices, such as IP cameras and wireless access points, by allowing both power and data to be transmitted over a single Ethernet cable.

Operating with a required DC input voltage of 53.5 V, the TL-SG105MPE ensures efficient power management across all connected devices. This feature enhances the overall performance of your network and provides necessary power to your devices without requiring additional power adapters. As a product from TP-Link, a leader in networking solutions, the TL-SG105MPE is notable for its reliability and superior technical specifications, making it a valuable addition to any network setup.

Management features

Switch layer
Switch layer
L2
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Port mirroring
Yes
show more


Rate limiting
Yes
show more


Broadcast storm control
Yes
show more

Data transmission

Switching capacity
Switching capacity
10 Gbit/s
show more


Forwarding rate
7.44 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Static route
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
16
show more

Security

IGMP snooping
Yes
show more


Loop protection
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more

Power

Power source
Power source
DC/PoE
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


DC input voltage
53.5 V
show more


Power consumption (max)
Power consumption (max)
137.01 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Total Power over Ethernet (PoE) budget
120 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
99.8 mm
show more


Depth
Depth
98 mm
show more


Height
Height
25 mm
show more

Packaging content

Cables included
LAN (RJ-45)
show more
