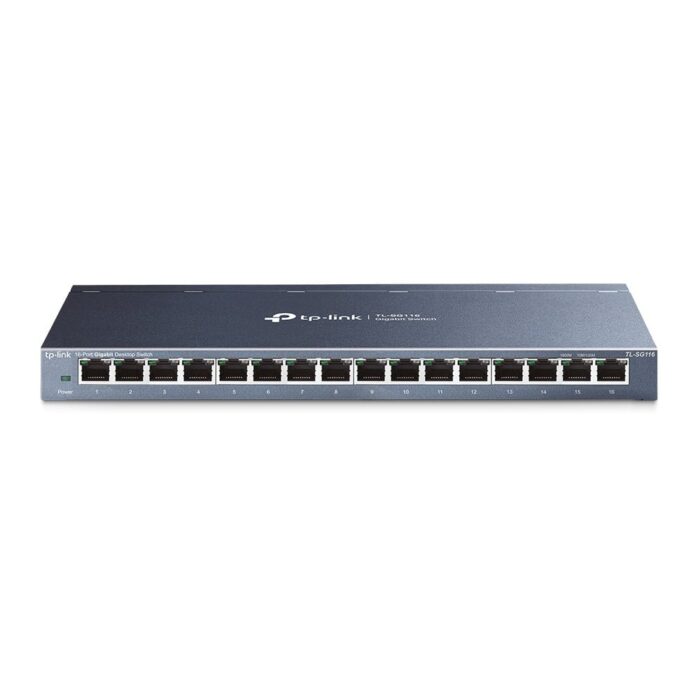

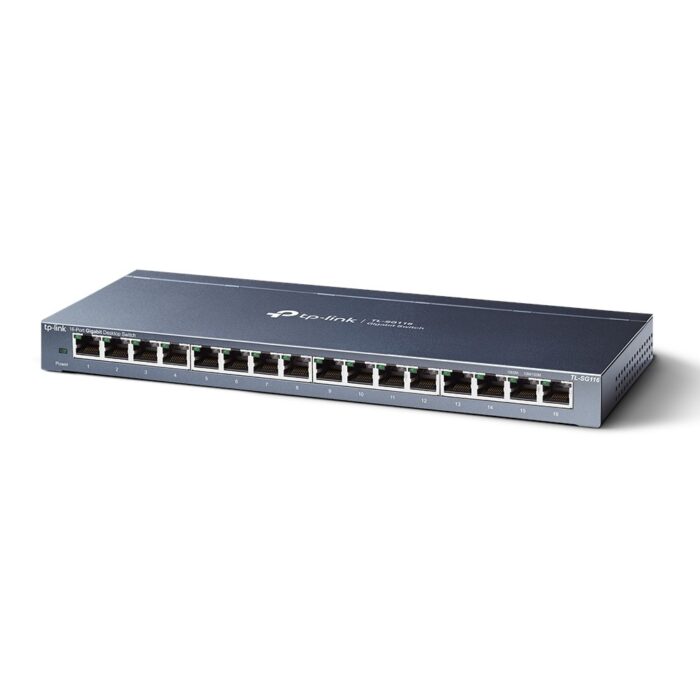

TP-Link TL-SG116 16-Port Gigabit Desktop Switch

The TP-Link TL-SG116 is an advanced unmanaged switch crafted to improve your network connectivity with its 16 Gigabit Ethernet ports supporting 10/100/1000 Mbps speeds. Each port is equipped with auto-negotiation capabilities and operates in full duplex mode, allowing for simultaneous data transmission in both directions. This feature enhances network efficiency, making it perfect for situations that require high-speed connections.

The switch features a robust MAC address table with a capacity for up to 8000 entries and a sizeable switching capacity of 32 Gbit/s, ensuring smooth data flow even during heavy usage. It conforms to various networking standards, including IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, and IEEE 802.3u, making it a versatile choice compatible with numerous devices and network configurations.

The TP-Link TL-SG116 is designed for flexibility, offering easy wall mounting to optimize space in both small office and enterprise environments. Its durable construction and compliance with multiple IEEE standards ensure high performance and adaptability, making it a reliable option for expanding network capacity and enhancing connectivity. The incorporation of advanced technology makes this switch a superior choice for those seeking dependable network solutions.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
16
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto-negotiation
Yes
show more


Cable length detection
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Link aggregation
Yes
show more


Rate limiting
Yes
show more


Flow control support
Yes
show more


Broadcast storm control
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Protocol-based VLAN, Tagged VLAN
show more


Number of VLANs
32
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


Forwarding rate
23.81 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Number of queues
4
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Packet buffer memory
4.1 MB
show more

Security

IGMP snooping
Yes
show more


Loop protection
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more


Wall mountable
Wall mountable
Yes
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
9 V
show more


Input current
0.6 A
show more


Power consumption (max)
Power consumption (max)
9.3 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
31.68 BTU/h
show more

Weight & dimensions

Width
Width
286 mm
show more


Depth
Depth
111.7 mm
show more


Height
Height
25.4 mm
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more

Logistics data

Harmonized System (HS) code
85176990
show more
