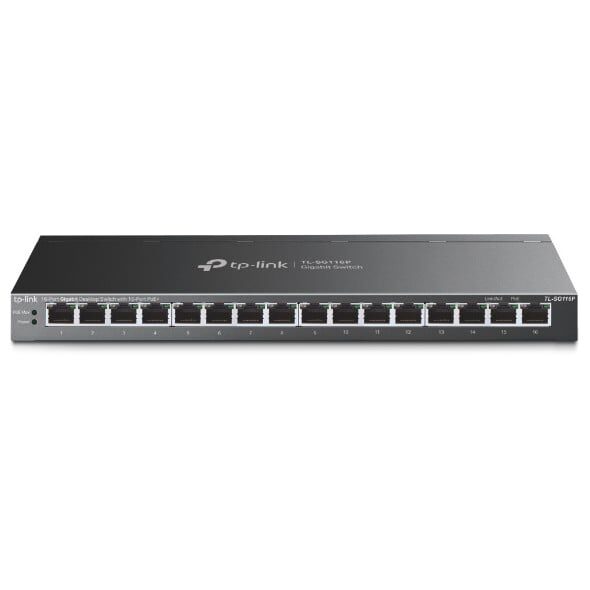

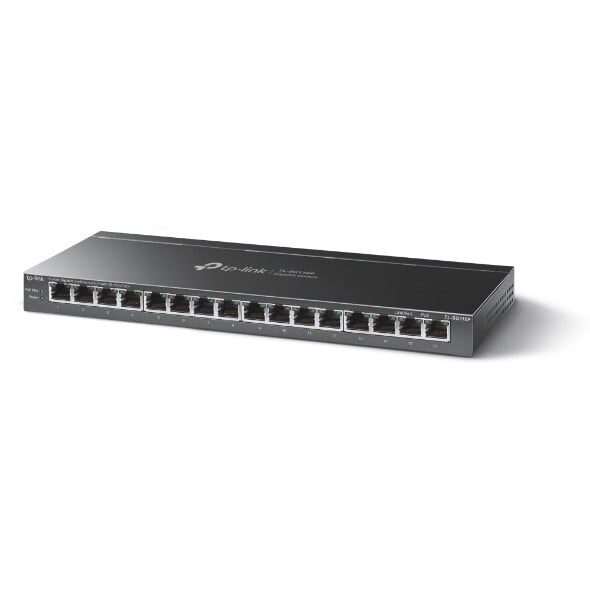

TP-Link TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+

The TP-Link TL-SG116P is an advanced 16-port gigabit desktop switch designed to enhance your network's performance. Each of the 16 RJ-45 Ethernet ports supports gigabit Ethernet (10/100/1000), ensuring robust and high-speed data transfer across your network. Its unmanaged nature makes it easy to set up and use, making it an ideal choice for both home and small office environments.

One of the standout features of the TL-SG116P is its PoE+ capability on all ports, allowing you to power PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points directly through the network cables. This feature eliminates the need for additional power supplies, simplifying your setup and reducing cable clutter. With a switching capacity of 32 Gbit/s and a MAC address table that can hold up to 8000 entries, the switch efficiently manages traffic without bottlenecks, ensuring smooth operation even under heavy loads.

Compliant with various networking standards, including IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, and IEEE 802.3u, the TP-Link TL-SG116P is built for reliable integration into diverse network setups. Its wall-mountable design offers flexible installation options, making it suitable for various environments. Operating on a DC input voltage of 9 V, this switch combines functionality with ease of use, making it a valuable addition to your networking equipment.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
16
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Cable length detection
Yes
show more


Auto-negotiation
Yes
show more


Broadcast storm control
Yes
show more


Rate limiting
Yes
show more


Flow control support
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Protocol-based VLAN, Tagged VLAN
show more


Number of VLANs
32
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


Forwarding rate
23.81 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Number of queues
4
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Packet buffer memory
4.1 MB
show more

Security

IGMP snooping
Yes
show more


Loop protection
Yes
show more

Design

Stackable
Stackable
Yes
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more


Wall mountable
Wall mountable
Yes
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
9 V
show more


Input current
0.6 A
show more


Power consumption (typical)
Power consumption (typical)
11.72 W
show more


Power consumption (max)
Power consumption (max)
144.28 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
490.55 BTU/h
show more

Weight & dimensions

Width
Width
286 mm
show more


Depth
Depth
111.7 mm
show more


Height
Height
25.4 mm
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more

Packaging data

Package width
Package width
227 mm
show more


Package depth
Package depth
434 mm
show more


Package height
Package height
70 mm
show more


Package weight
Package weight
2 kg
show more
