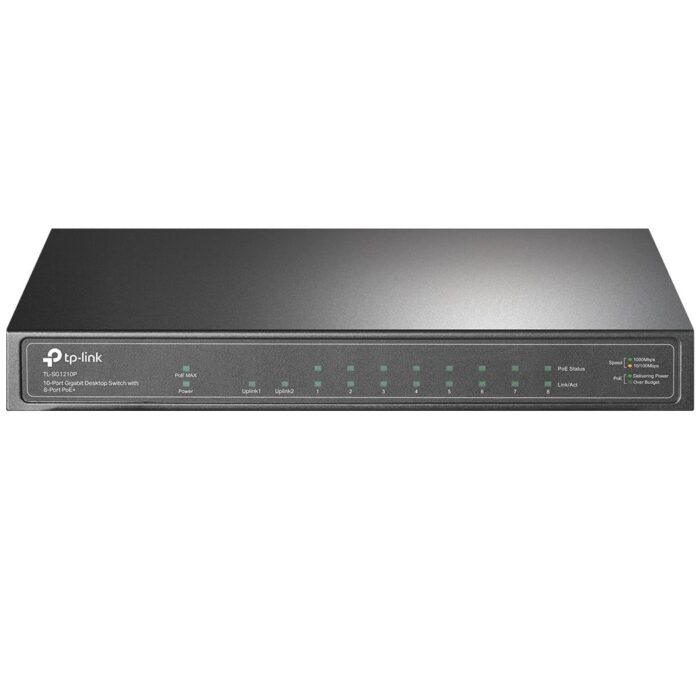

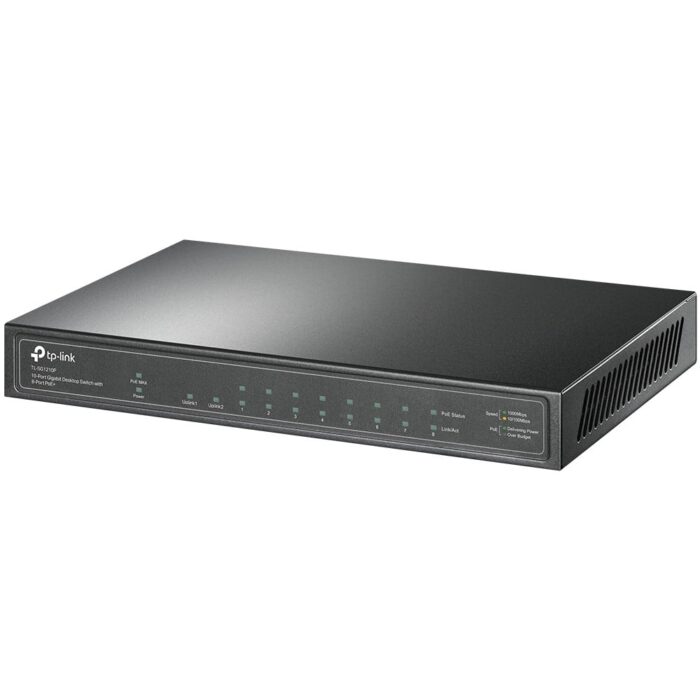

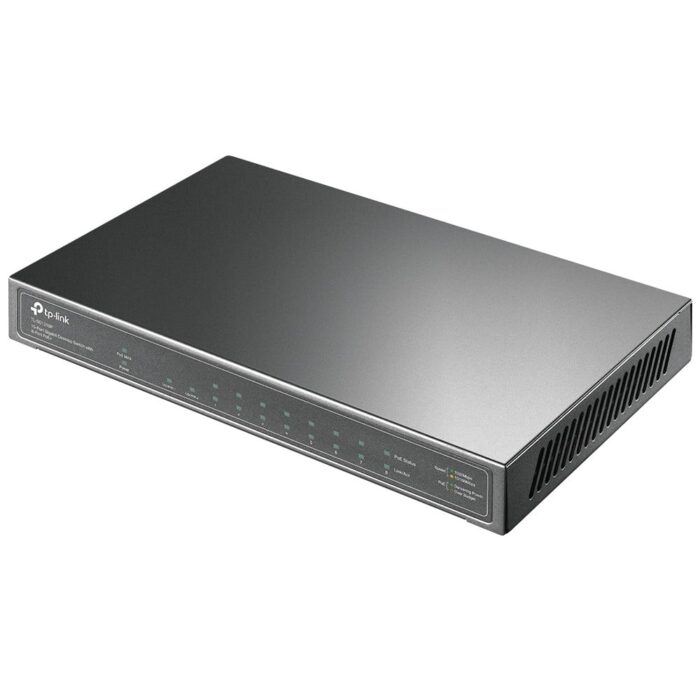

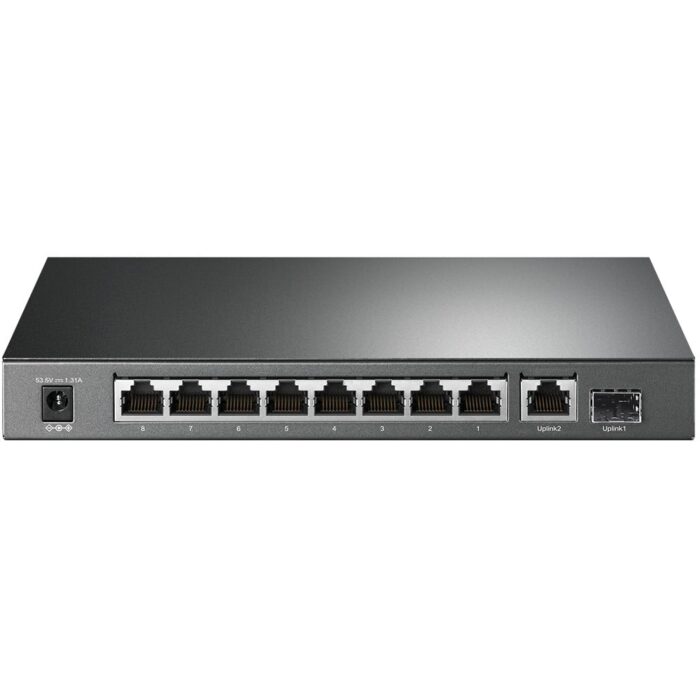

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

The TP-Link TL-SG1210P is an advanced unmanaged switch designed to enhance network performance with its 10 impressive Gigabit Ethernet ports. Of these ports, 8 are equipped with PoE+ capability, making it easy to integrate devices like IP cameras and wireless access points without needing additional power supplies. This model is suitable for both small offices and large enterprise environments, providing a reliable solution for high-speed data transfer.

With a robust MAC address table containing 4000 entries and a switching capacity of 20 Gbit/s, the TL-SG1210P effectively manages network traffic and minimizes the risk of bottlenecks. It complies with essential networking standards, including IEEE 802.1p for Layer 2 Quality of Service (QoS), IEEE 802.3af and IEEE 802.3at for Power over Ethernet, and IEEE 802.3x for flow control. These features ensure optimal performance and compatibility with a wide range of network devices, distinguishing it from competitors.

Powered by a DC input voltage of 53.5 V, the TL-SG1210P simplifies installation while maintaining high efficiency. Its wall-mountable design offers placement flexibility, making it a versatile choice for various settings. With its combination of high performance, PoE support, and adherence to industry standards, the TP-Link TL-SG1210P is a superior choice for those seeking reliable network solutions.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
9
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
9
show more


SFP module slots quantity
1
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


MAC address auto-aging supported
Yes
show more


MAC address auto-learning supported
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Auto-negotiation
Yes
show more

Optical fiber

Fiber ethernet cabling technology
1000BASE-X
show more


Fiber type
Single-mode
show more

Data transmission

Switching capacity
Switching capacity
20 Gbit/s
show more


MAC address table
MAC address table
4000 entries
show more


Store-and-forward
Yes
show more

Security

IGMP snooping
Yes
show more

Design

Product colour
Product colour
Grey
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power supply included
Power supply included
No
show more


DC input voltage
53.5 V
show more


Input current
1.31 A
show more


Power consumption (typical)
Power consumption (typical)
7.11 W
show more


Power consumption (max)
Power consumption (max)
78.13 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Total Power over Ethernet (PoE) budget
63 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
266.42 BTU/h
show more

Weight & dimensions

Width
Width
209 mm
show more


Depth
Depth
126 mm
show more


Height
Height
26 mm
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more


Manual
Yes
show more


User guide
Yes
show more

Certificates

Certification
CE, FCC, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
