TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16-Port PoE+

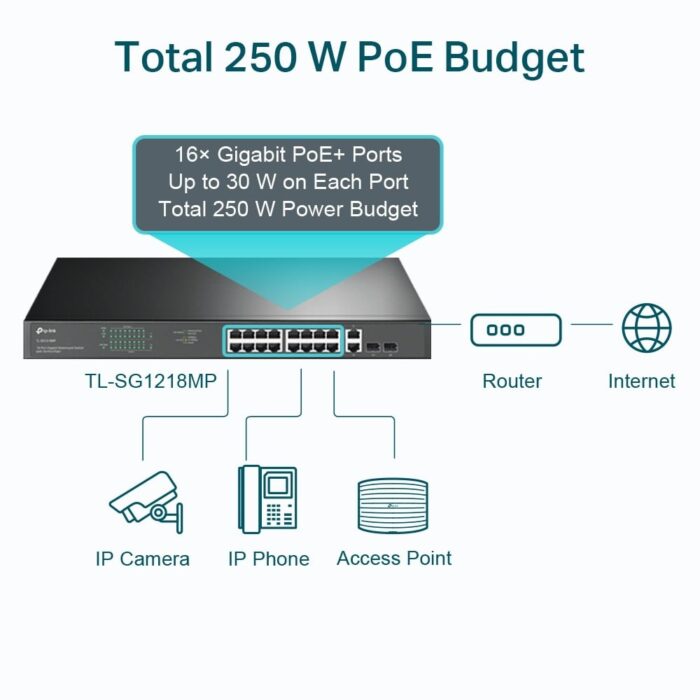

The TP-LINK TL-SG1218MP is a high-performance 18-Port Gigabit Rackmount Switch designed to enhance your network management capabilities. It includes 16 PoE+ enabled ports, allowing for the simultaneous transmission of power and data over a single Ethernet cable. This feature makes it ideal for deploying PoE devices such as IP cameras and VoIP phones. The switch supports Gigabit Ethernet (10/100/1000), ensuring fast and reliable connectivity for all your networking needs.

With a robust MAC address table that accommodates up to 8000 entries and a substantial switching capacity of 36 Gbit/s, the TL-SG1218MP guarantees smooth data processing and transmission across your network. Its support for full duplex communication further enhances network speed by effectively eliminating traffic bottlenecks. This switch adheres to multiple networking standards, including IEEE 802.1q, IEEE 802.1p, and IEEE 802.3, ensuring robust performance and compatibility with a wide range of devices.

The 1U rack-mountable design of the TL-SG1218MP optimizes space in your server room while improving air circulation around the device. This feature, combined with its advanced Power over Ethernet capabilities, sets it apart from competitors, making it a superior choice for businesses looking to streamline their network infrastructure. As a product from TP-LINK, a trusted name in networking solutions, you can be assured of quality and reliability in your network setup.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more


Traffic classification
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
18
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
18
show more


Combo SFP ports quantity
2
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-learning supported
Yes
show more


MAC address auto-aging supported
Yes
show more


Auto-negotiation
Yes
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more

Data transmission

Switching capacity
Switching capacity
36 Gbit/s
show more


Forwarding rate
26.78 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
10000
show more


Packet buffer memory
4.1 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more


Number of fans
Number of fans
2 fan(s)
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
286.64 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
16
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
250 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
977.44 BTU/h
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more

Packaging data

Package width
Package width
250 mm
show more


Package depth
Package depth
528 mm
show more


Package height
Package height
80 mm
show more


Package weight
Package weight
3.05 kg
show more

Certificates

Certification
CE, FCC, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
