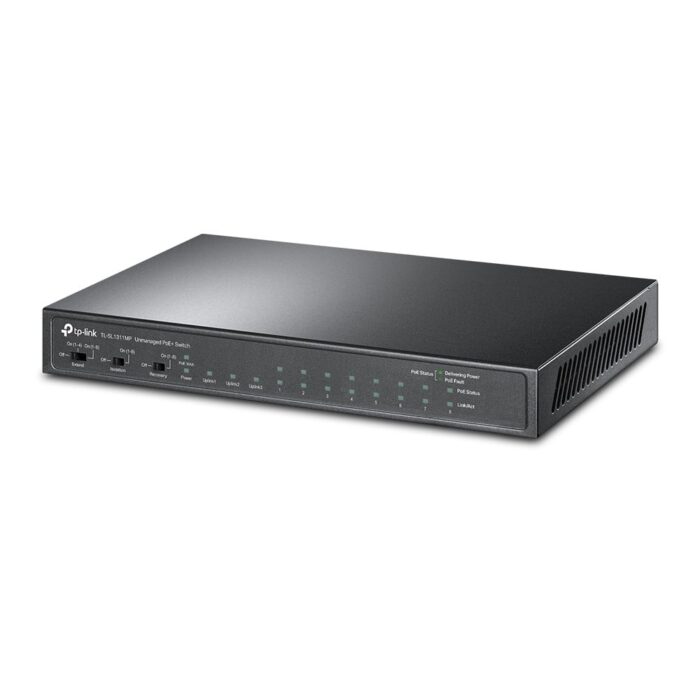

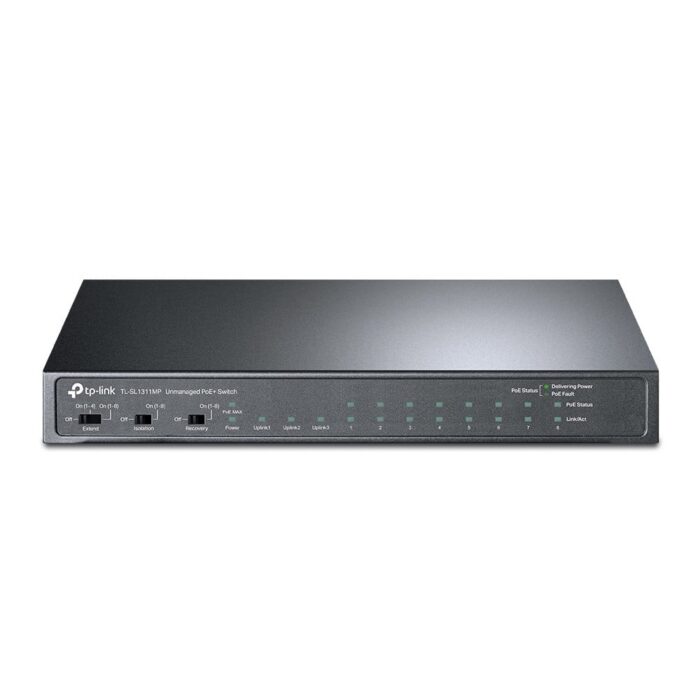

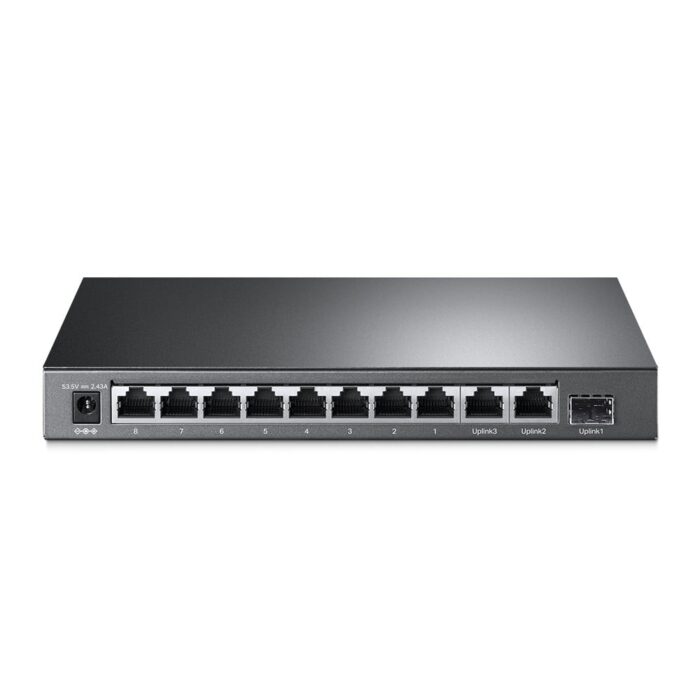

TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

The TP-Link TL-SL1311MP is an advanced unmanaged desktop switch designed to improve network connectivity and expansion. It features eight Fast Ethernet ports with speeds of 10/100Mbps and three additional Gigabit ports, offering exceptional flexibility and performance for various network setups. All eight Fast Ethernet ports are equipped with Power over Ethernet (PoE) capabilities, enabling easy deployment of devices like IP cameras, VoIP phones, and wireless access points by delivering power and data through a single network cable.

This switch has a substantial MAC address table that can accommodate up to 2000 entries, along with a robust switching capacity of 7.6 Gbit/s. This ensures seamless data transmission across the network, making it an ideal choice for both home and business environments. The TL-SL1311MP complies with IEEE 802.3af and IEEE 802.3at standards, ensuring compatibility with a wide range of PoE devices, which further enhances its versatility.

Powered with a DC input voltage of 53.5 V, the switch includes a DC-in jack for straightforward power connectivity. The TP-Link brand is known for its commitment to quality and innovation in networking solutions, making the TL-SL1311MP a solid choice for those seeking to improve their network's efficiency and connectivity. With its combination of performance, flexibility, and PoE support, this switch is a reliable solution for expanding network capabilities.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
10
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


SFP module slots quantity
1
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3at
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
7.6 Gbit/s
show more


Forwarding rate
5.6544 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
16000
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


Number of fans
Number of fans
0 fan(s)
show more

Power

Power supply included
Power supply included
Yes
show more


Number of power supply units
1
show more


DC input voltage
53.5 V
show more


Input current
2.43 A
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Total Power over Ethernet (PoE) budget
124 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
209 mm
show more


Depth
Depth
126 mm
show more


Height
Height
26 mm
show more

Packaging content

Manual
Yes
show more

Packaging data

Package type
Package type
Box
show more

Logistics data

Harmonized System (HS) code
85176990
show more
