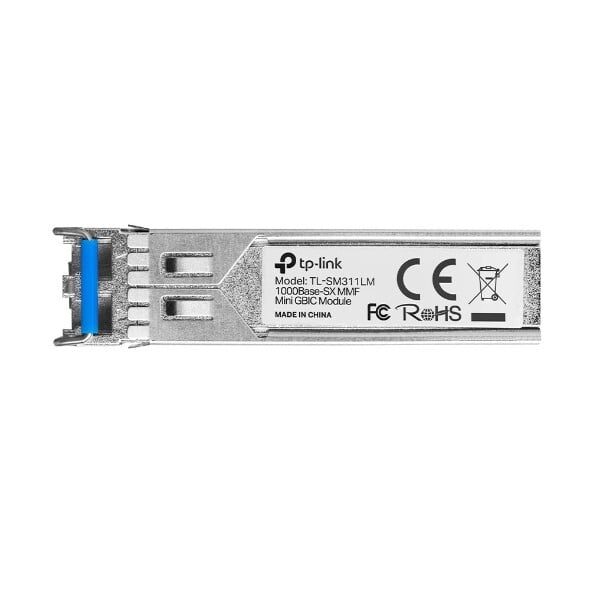

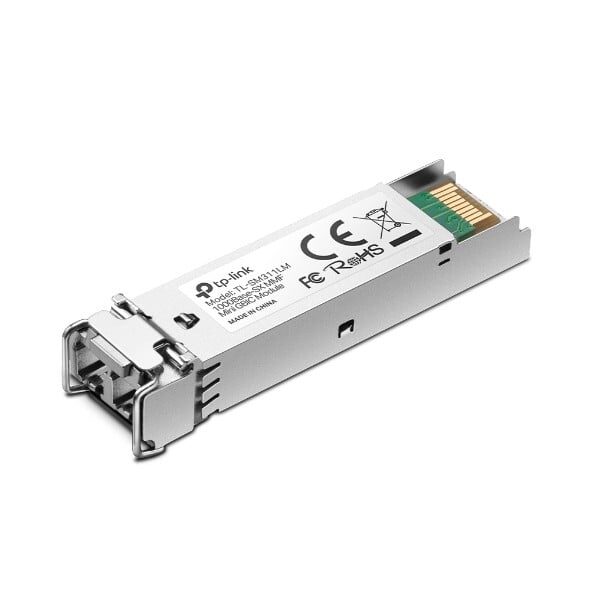

TP-Link TL-SM311LM Gigabit Multi-Mode SFP Module

The TP-LINK TL-SM311LM is a high-performance MiniGBIC module designed for seamless fiber optic connectivity. This SFP transceiver supports a maximum data transfer rate of 1250 Mbit/s, ensuring efficient and reliable network performance. It is compatible with standard SFP slots, making it a versatile choice for various networking equipment and enhancing the flexibility of your network setup.

Engineered to meet rigorous standards, the TP-LINK TL-SM311LM has both FCC and CE certifications, ensuring compliance with international safety and operational guidelines. It operates on a 3.3 V input voltage and is designed for low power consumption, making it an environmentally friendly option for high-speed data transmission. The module uses an LC (UPC) connector, allowing compatibility with both 50/125 and 62.5/125 µm fiber types, providing flexibility in fiber optic installations.

With an effective transmission range of up to 550 meters, the TP-LINK TL-SM311LM is ideal for extended network setups across larger spaces, ensuring that your data travels efficiently without loss of quality. This compact module, measuring 55.4 mm in width, 13.7 mm in depth, and 12.9 mm in height, is easy to install in tight spaces, making it a practical choice for any networking environment. Trust in the quality and performance of TP-LINK to elevate your network capabilities.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
1250 Mbit/s
show more


Interface type
mini-GBIC/SFP
show more


Single-mode fiber (SMF) supported
No
show more


Multi-mode fiber (MMF) supported
Yes
show more


Fiber optic connector
Fiber optic connector
LC (UPC)
show more


Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
show more


Maximum transfer distance
Maximum transfer distance
550 m
show more


Wavelength
Wavelength
850 nm
show more


Networking standards
Networking standards
IEEE 802.3z
show more

Features

Product colour
Product colour
Metallic
show more

Power

Input voltage
Input voltage
3.3 V
show more

Certificates

Compliance certificates
RoHS
show more


Certification
FCC, CE
show more

Operational conditions

Minimum operating temperature
0 °C
show more


Maximum operating temperature
70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 80 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
55.4 mm
show more


Depth
Depth
13.7 mm
show more


Height
Height
12.9 mm
show more

Packaging content

Quantity per pack
1 pc(s)
show more

Packaging data

User guide
Yes
show more


Package width
Package width
148 mm
show more


Package depth
Package depth
207 mm
show more


Package height
Package height
38 mm
show more


Package weight
Package weight
110 g
show more

Logistics data

Harmonized System (HS) code
85369010
