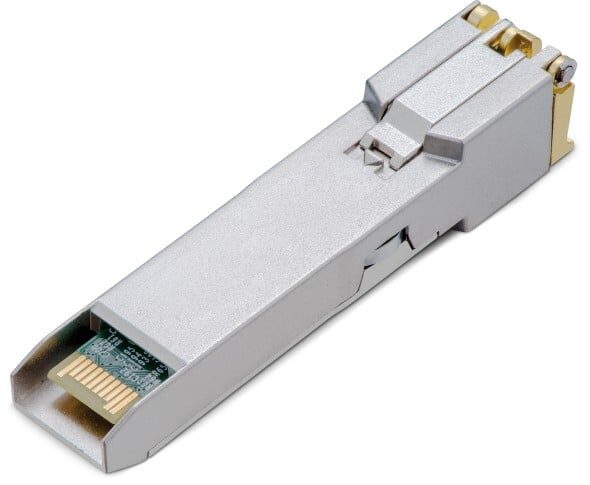

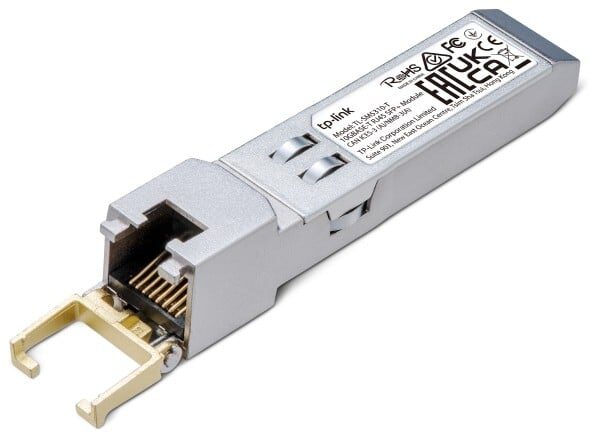

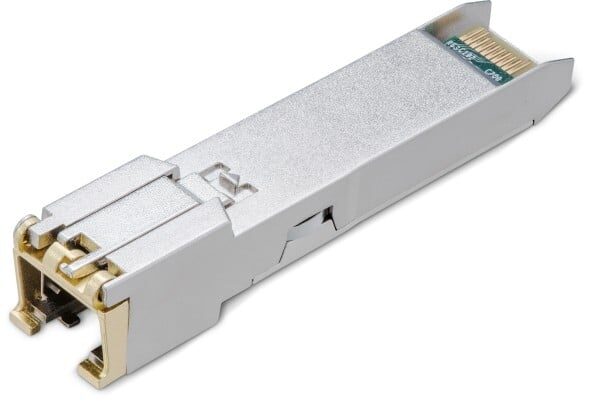

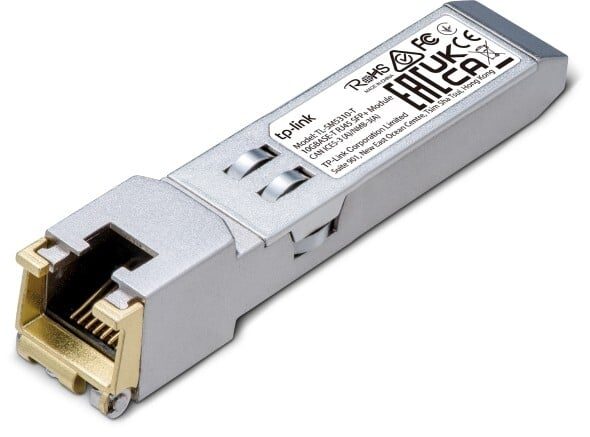

TP-Link TL-SM5310-T 10GBASE-T RJ45 SFP+ Module

The TP-LINK TL-SM5310-T is a cutting-edge 10G Base-T RJ45 SFP+ module that offers exceptional high-speed data transmission capabilities. It supports a maximum data transfer rate of 10300 Mbit/s, ensuring your network can effortlessly handle demanding applications. The module features an RJ-45 interface, making it compatible with standard copper networking cables, and adheres to the SFP+ form factor standard, which is widely recognized for its reliability and performance in the industry.

Designed for versatility, the TL-SM5310-T is compatible with a wide range of Ethernet standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, and IEEE 802.3bz. This broad compatibility allows for seamless integration into various networking environments, making it an ideal choice for enterprise and home networks alike. Built with a robust metal housing for durability and longevity, the module features a sleek silver color that blends effortlessly with other network equipment.

Operating efficiently on a low input voltage of 3.3 V, the TP-LINK TL-SM5310-T not only maintains system stability but also enhances energy efficiency, making it a smart choice for environmentally conscious users. It is particularly effective for extending network connections up to 100 meters, guaranteeing reliable and fast data transfer across your network. With its advanced technology and superior performance, the TL-SM5310-T stands out as a leading solution for high-speed networking needs.

Performance

SFP transceiver type
Copper
show more


Maximum data transfer rate
Maximum data transfer rate
10300 Mbit/s
show more


Interface type
RJ-45
show more


Maximum transfer distance
Maximum transfer distance
100 m
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
show more


Copper ethernet cabling technology
10GBASE
show more

Features

Product colour
Product colour
Silver
show more


Housing material
Housing material
Metal
show more


Form factor
Form factor
SFP+
show more


Hot-Plug support
Hot-Plug support
Yes
show more


Easy to install
Yes
show more

Power

Input voltage
Input voltage
3.3 V
show more

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
show more

Sustainability

Sustainability compliance
Yes
show more

Operational conditions

Minimum operating temperature
0 °C
show more


Maximum operating temperature
70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more

Packaging content

Quantity per pack
1 pc(s)
show more

Packaging data

Package width
Package width
81.5 mm
show more


Package depth
Package depth
122.5 mm
show more


Package height
Package height
38.5 mm
show more


Package weight
Package weight
2.87 kg
show more

Logistics data

Harmonized System (HS) code
85369010
