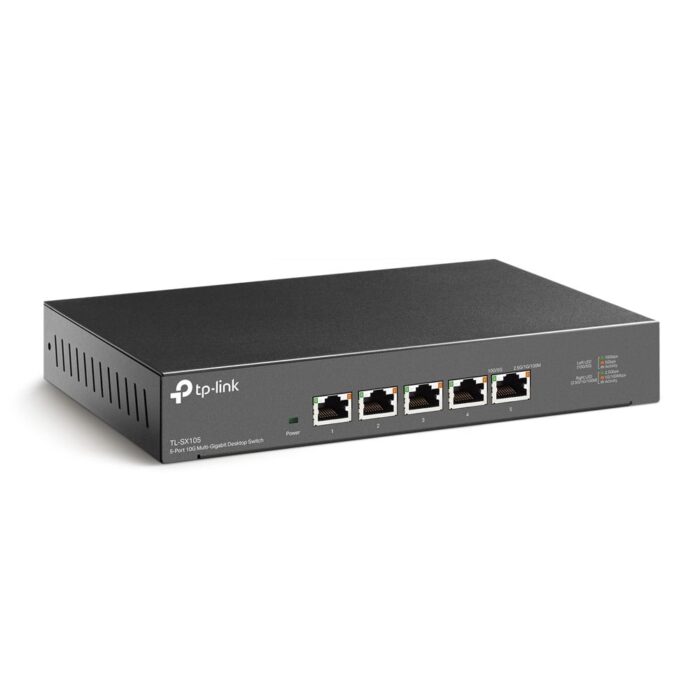

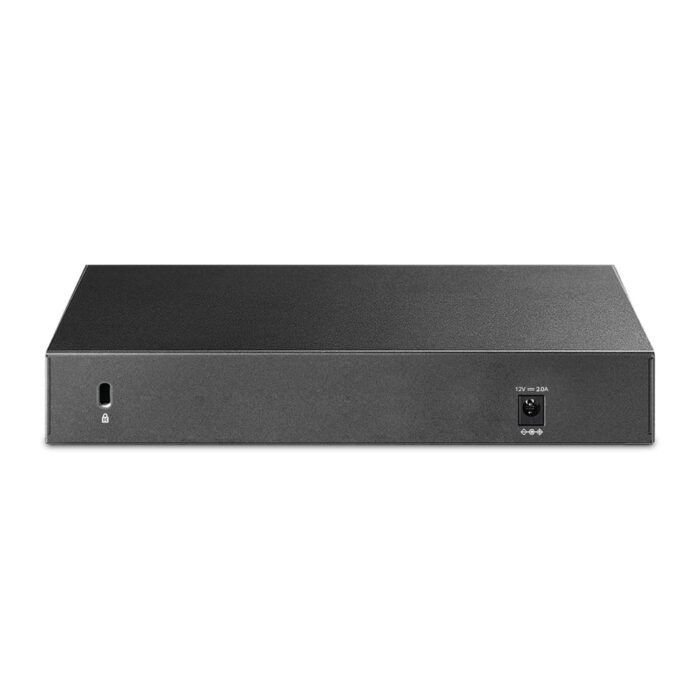

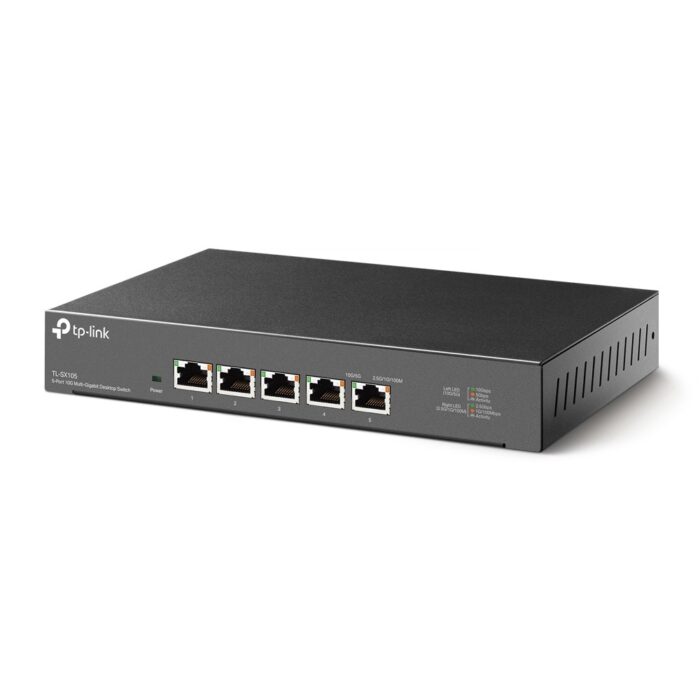

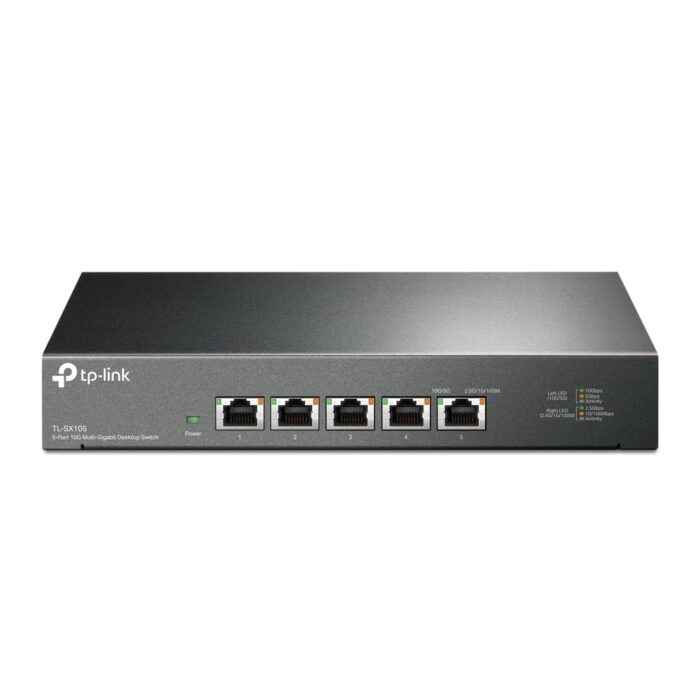

TP-Link TL-SX105 5-Port 10G Multi-Gigabit Desktop Switch

The TP-Link TL-SX105 is an unmanaged 5-port 10G multi-gigabit desktop switch designed for high-speed networking. Equipped with five RJ-45 Ethernet ports that support 10G Ethernet (100/1000/10000), this switch is perfect for bandwidth-intensive tasks. It features a substantial MAC address table with 32,000 entries and an impressive switching capacity of 100 Gbit/s, ensuring efficient network traffic management and providing reliable seamless connectivity.

Compliant with various networking standards such as IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, and IEEE 802.3x, the TP-Link TL-SX105 ensures a dependable networking experience. Its wall-mountable design offers installation flexibility, making it suitable for spaces with constraints. This feature enhances its applicability in both home and office settings, allowing optimal placement without sacrificing performance.

Reflecting TP-Link's commitment to high-quality networking solutions, the TL-SX105 is notable for its capability to connect multiple devices with large data transfer rates. This makes it particularly beneficial in scenarios needing high-speed, wired connections. Whether expanding your network or upgrading your current setup, the TP-Link TL-SX105 offers an effective solution for modern networking requirements.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


10G Ethernet (copper) ports quantity
5
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
Yes
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
100 Gbit/s
show more


Forwarding rate
74.4 Mpps
show more


MAC address table
MAC address table
32000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
10000
show more


Packet buffer memory
16 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


Input current
2 A
show more


Input voltage
Input voltage
12 V
show more


Power consumption (max)
Power consumption (max)
21.4 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
226 mm
show more


Depth
Depth
131 mm
show more


Height
Height
35 mm
show more

Packaging content

Cables included
AC
show more


Manual
Yes
show more

Packaging data

Package type
Package type
Box
show more


Package width
Package width
240 mm
show more


Package depth
Package depth
315 mm
show more


Package height
Package height
70 mm
show more


Package weight
Package weight
1.58 kg
show more

Certificates

Certification
CE, FCC ,RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
