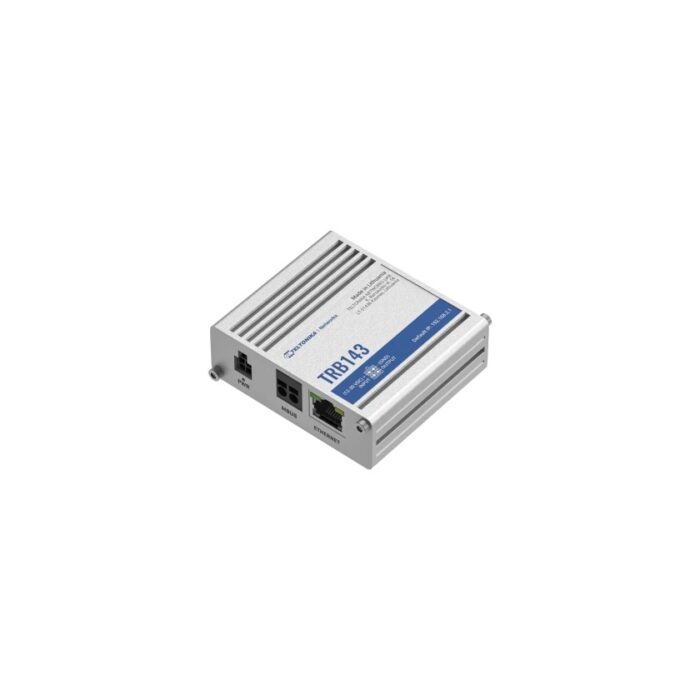

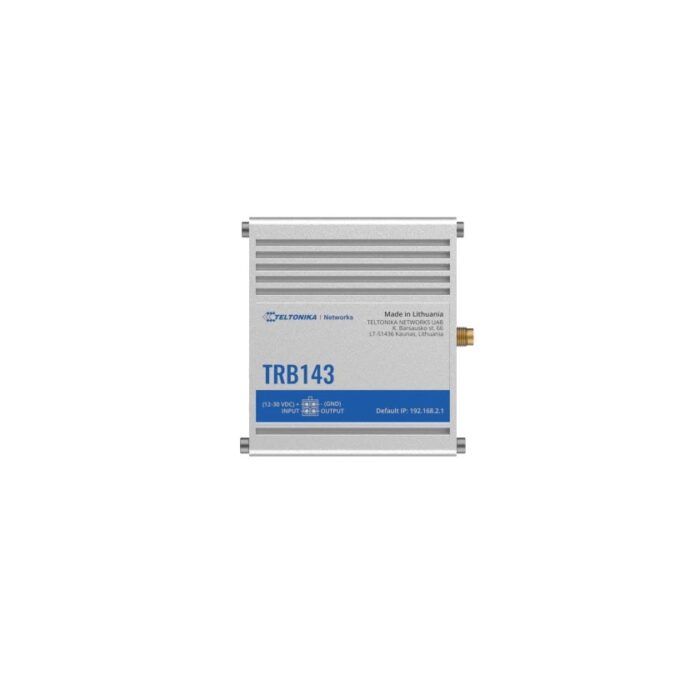

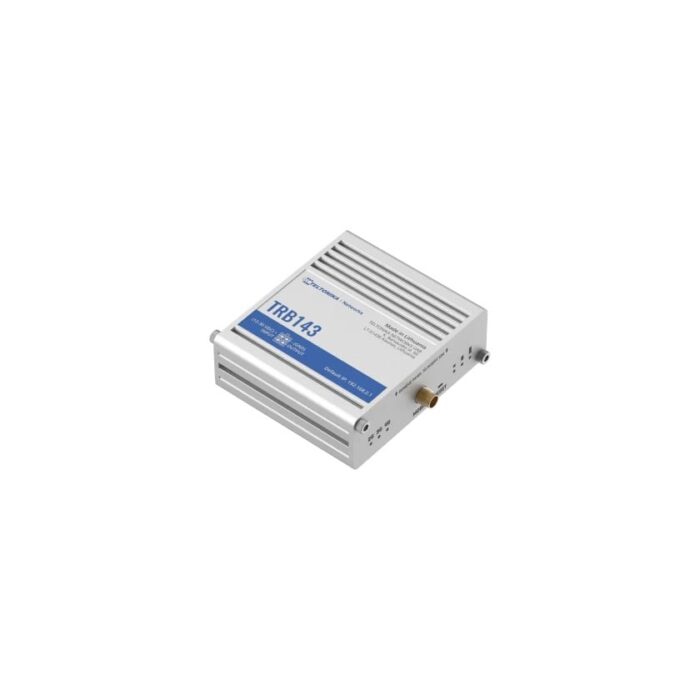

Teltonika TRB143 LTE/4G M-Bus Industrial Gateway without Power Supply

The TRB143400300 is a compact industrial gateway designed for efficient M-Bus data acquisition in various applications, such as utility metering and industrial automation. It operates on LTE/4G networks, providing fast and stable connectivity for critical data transmission. The device supports up to 250 M-Bus slave devices, making it suitable for large-scale deployments. Built with robust components, the gateway is encased in durable aluminum, offering increased resistance to environmental factors like dust and moisture, making it ideal for harsh industrial environments. It features a wide range of power input options and low power consumption, enhancing its suitability for remote applications where power supply options are limited. For secure data communication, the gateway includes several advanced security protocols such as Firewall and OpenVPN. These features help protect sensitive data from unauthorized access and ensure safe internet connectivity. The device is easy to integrate with existing systems, thanks to its support for multiple network protocols and an intuitive web-based interface that simplifies configuration and management tasks.

Design

Product colour
Product colour
Steel
show more


Enclosure material
Aluminium
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more


Enclosure International Protection (IP) code
IP30
show more

Features

Antenna type
Antenna type
External
show more


Antenna connector type
Antenna connector type
SMA
show more


Antennas quantity
1
show more


Short Message Service (SMS)
Yes
show more

Performance

Control display unit
No
show more


Processor family
Processor family
ARM Cortex
show more


Processor model
Processor model
Cortex-A7
show more


Built-in processor
Built-in processor
Yes
show more


Processor manufacturer
Processor manufacturer
ARM
show more


Processor frequency
Processor frequency
1300 MHz
show more


Internal memory
Internal memory
256 MB
show more


Internal memory type
Internal memory type
DDR3
show more


Flash memory
512 MB
show more

Protocols

DMZ support
Yes
show more


Data link protocols
HTTP(S), MQTT, Azure MQTT, Kinesis
show more


Supported network protocols
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
show more

Network

Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3az, IEEE 802.3u
show more


4G LTE category
4
show more


Mobile network generation
4G
show more


Data network
Data network
2G, 3G, 4G
show more


Dynamic DNS (DDNS)
Yes
show more


Cabling technology
Cabling technology
10/100/1000Base-T(X)
show more

Security

Network address translation (NAT)
Yes
show more


VLAN support
VLAN support
Yes
show more


Firewall security
Firewall security
Yes
show more

Ports & interfaces

WAN connection
WAN connection
Ethernet (RJ-45)
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more

Management features

Quality of Service (QoS) support
Yes
show more

Power

Power consumption (typical)
Power consumption (typical)
3 W
show more


Power consumption (max)
Power consumption (max)
6 W
show more


DC input voltage
12 – 30
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Weight & dimensions

Height
Height
25 mm
show more


Depth
Depth
73 mm
show more


Width
Width
74.5 mm
show more


Weight
Weight
145 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more
