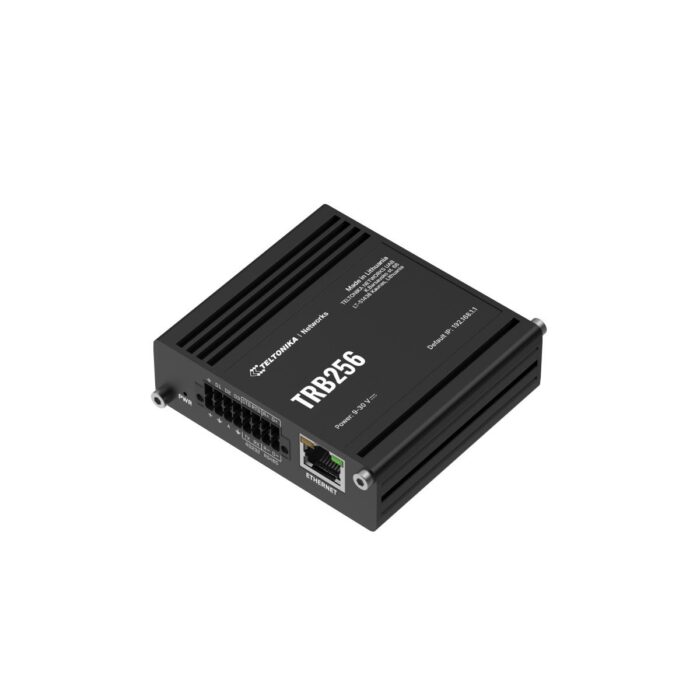

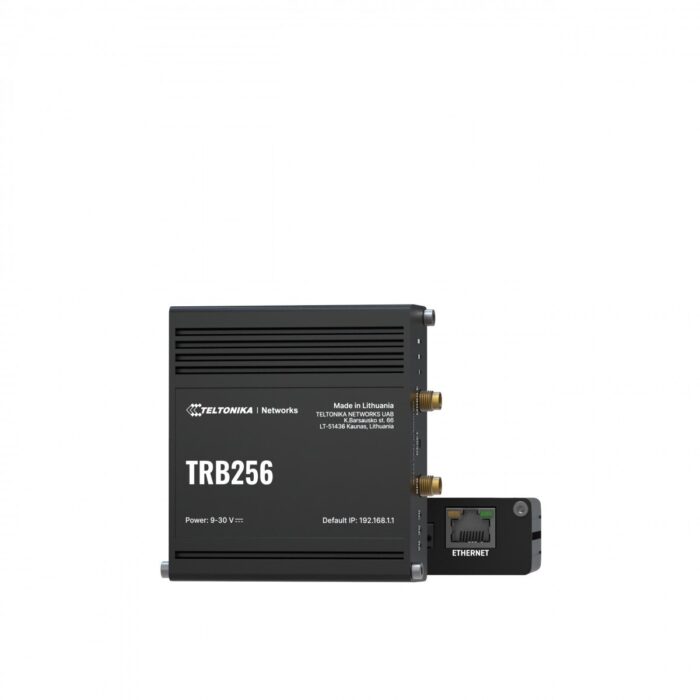

Teltonika Networks TRB256 4G/LTE Industrial NB-IoT Gateway

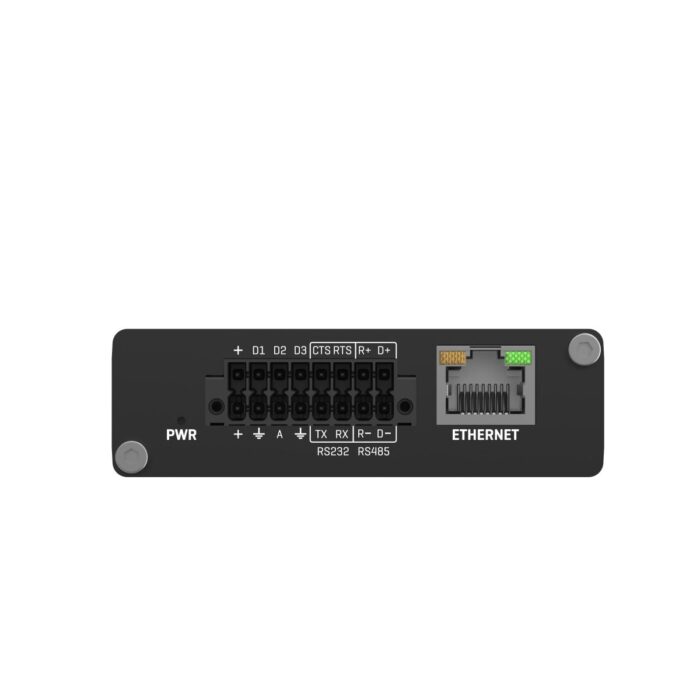

The TRB256000000 is a 4G/LTE industrial gateway crafted for seamless communication in diverse applications. It supports NB-IoT (Narrowband Internet of Things) technology, ensuring efficient connectivity even in environments with limited signal penetration. With a durable casing, this device is built to withstand harsh industrial conditions, making it ideal for deployment in remote or challenging locations. It features multiple interfaces, including digital inputs and outputs, serial RS232/RS485, and Ethernet ports, offering versatile connectivity options. There is also a microSD card slot for additional storage. Powered by a robust ARM Cortex-A7 processor, the device ensures fast and efficient data processing. Security is prioritized with a built-in firewall and support for numerous VPN services, safeguarding sensitive data transmitted across networks. The TRB256000000 is easy to install and manage, featuring a user-friendly web interface and support for remote management protocols like SNMP, MQTT, and HTTP. It operates within a temperature range of -40°C to 75°C, underscoring its suitability for extreme operational environments.

Design

Product colour
Product colour
Black
show more


Enclosure material
Aluminium
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more

Features

Antenna type
Antenna type
External
show more


Antenna connector type
Antenna connector type
R-SMA
show more

Performance

Control display unit
No
show more

Protocols

Management protocols
WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS
show more


DMZ support
Yes
show more


Supported network protocols
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
show more

Network

Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3az, IEEE 802.3u
show more


Dynamic DNS (DDNS)
Yes
show more

Security

Network address translation (NAT)
Yes
show more


DoS attack prevention
Yes
show more


Authentication method
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
show more


Firewall security
Firewall security
Yes
show more

Ports & interfaces

RS-232 ports
RS-232 ports
1
show more


SIM card type
MiniSIM
show more


SIM card slot
SIM card slot
Yes
show more


Number of simultaneous SIM cards
2
show more


Serial interface type
RS-232, RS-485
show more


WAN connection
WAN connection
Ethernet (RJ-45)
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more

Management features

Reset button
Yes
show more


Universal Plug and Play (UPnP)
Yes
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Power

DC input voltage
9 – 30 V
show more

Weight & dimensions

Height
Height
25 mm
show more


Depth
Depth
74.2 mm
show more


Width
Width
83 mm
show more


Weight
Weight
165 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

Certificates

Safety
Safety
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018
show more
