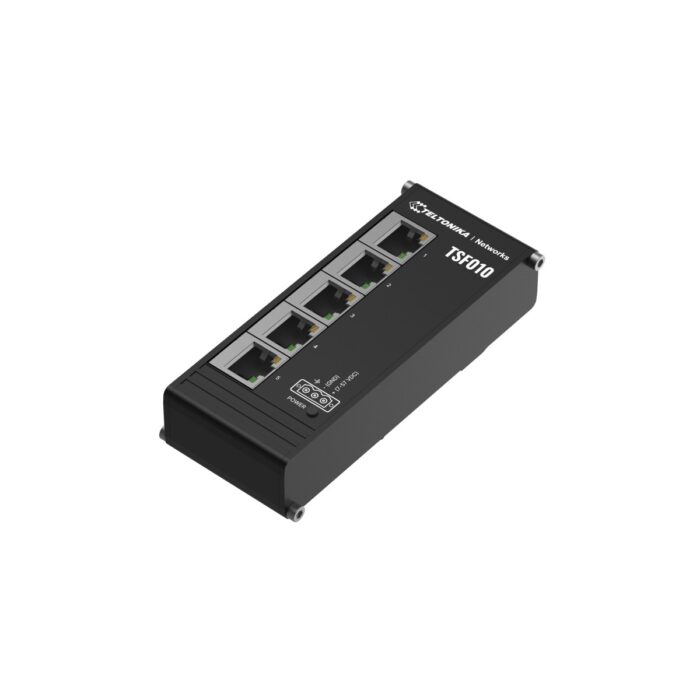

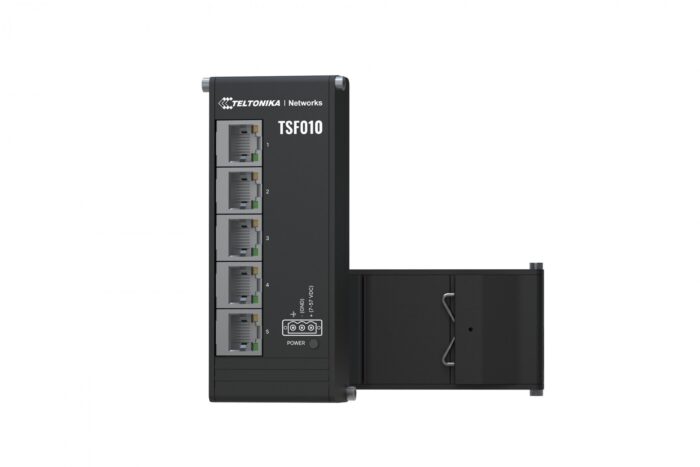

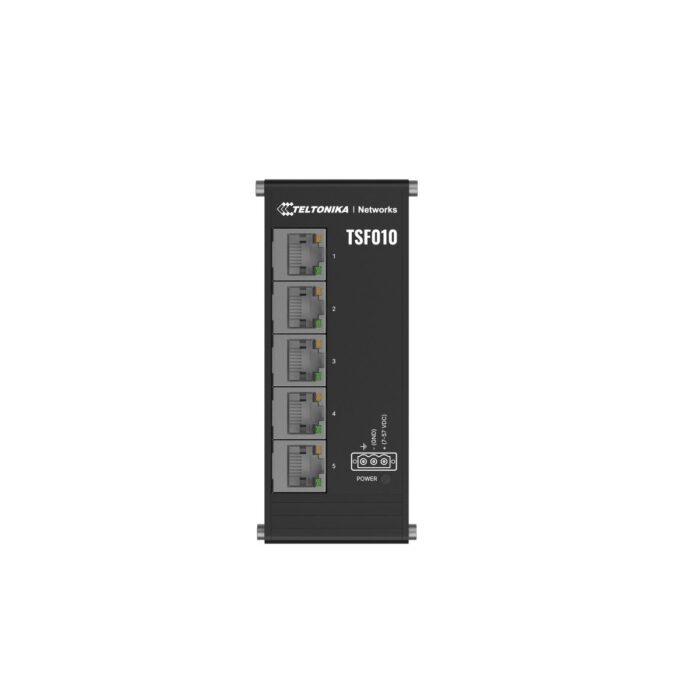

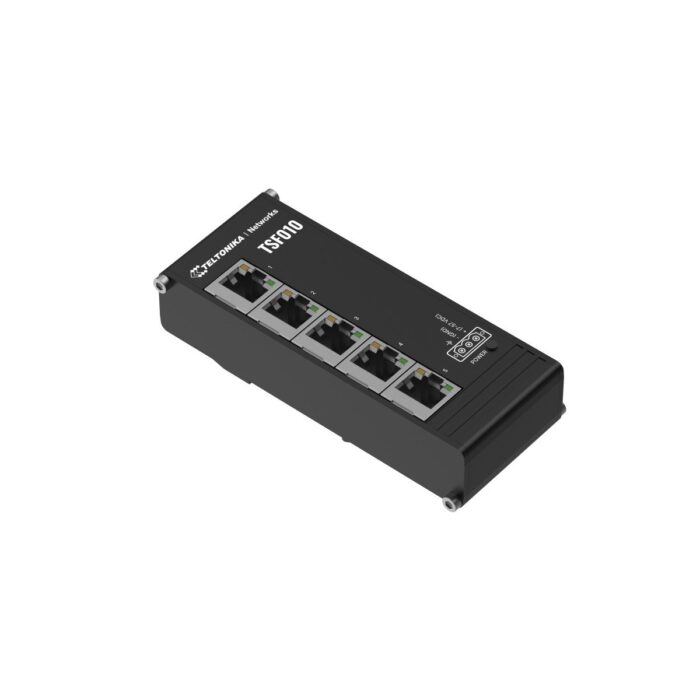

Teltonika TSF010 5 Port 10/100 Flat Industrial Unmanaged Switch

Introducing the Teltonika NETWORKS TSF010 Flat Ethernet Switch. It is an unmanaged switch designed to facilitate basic network connections. The switch comes equipped with five RJ-45 Ethernet ports, all supporting Fast Ethernet speeds of 10/100 Mbps. It operates in full duplex mode, allowing simultaneous two-way data transmission. The switch's MAC address table can accommodate up to 2,048 entries, ensuring ample room for device identification and management. It boasts a switching capacity of 10 Gbit/s, enabling efficient data handling and transfer across connected devices. This switch supports various networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x. Designed for easy installation, it features a DIN rail form factor, ideal for industrial environments and setups.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Fast Ethernet (copper) ports quantity
5
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
10 Gbit/s
show more


MAC address table
MAC address table
2048 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Form factor
Form factor
DIN rail
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Aluminium
show more


DIN rail mounting
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
No
show more


Input voltage
Input voltage
7 – 57 V
show more


Power consumption (typical)
Power consumption (typical)
1 W
show more


Power consumption (max)
Power consumption (max)
1.5 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

Weight & dimensions

Width
Width
113 mm
show more


Depth
Depth
50 mm
show more


Height
Height
28 mm
show more


Weight
Weight
142 g
show more
