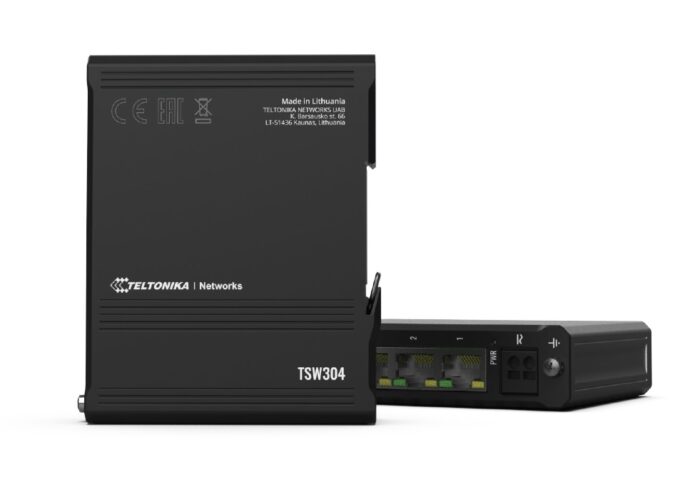

Teltonika TSW304 Gigabit Switch with DIN Rail

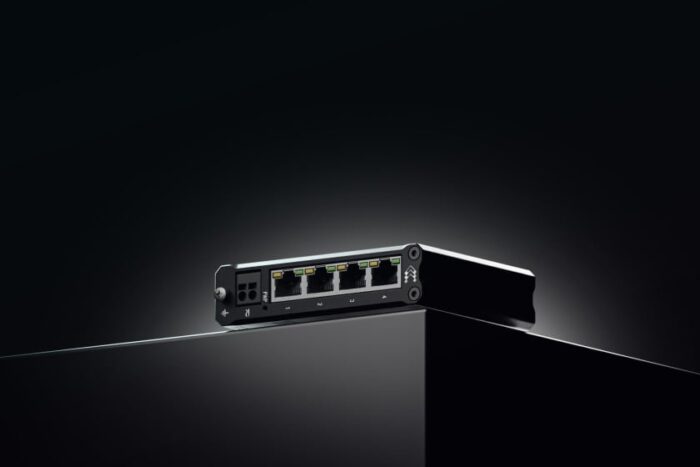

The Teltonika TSW304 is a compact industrial switch that offers robust performance in challenging environments. It features four RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000) for high-speed data transfer rates of up to 1 Gbps. The switch is equipped with a MAC address table that can hold 2000 entries and provides a switching capacity of 8 Gbit/s. It adheres to networking standards such as IEEE 802.3, IEEE 802.3az, and IEEE 802.3u, ensuring compatibility and energy efficiency. The device supports a wide range of DC input voltages from 7 to 57 V and includes Power over Ethernet (PoE) capabilities, simplifying wiring and reducing installation costs. Designed for industrial application scenarios, the switch includes an integrated DIN rail mounting option and can also be mounted on a wall, making it versatile for various setups. With dimensions of 102 x 25 x 81.5 mm, it is one of the smallest switches in its category yet durable enough to withstand industrial conditions.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
4
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3az, IEEE 802.3u
show more


10G support
10G support
No
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
8 Gbit/s
show more


MAC address table
MAC address table
2000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more


Packet buffer memory
0.128 MB
show more

Design

Product colour
Product colour
Black
show more


Housing material
Housing material
Aluminium
show more


LED indicators
Power, Status
show more


DIN rail mounting
Yes
show more


Wall mountable
Wall mountable
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more

Power

Power source
Power source
AC/DC
show more


DC input voltage
7 – 57 V
show more


Input voltage
Input voltage
9 – 40 V
show more


Power consumption (typical)
Power consumption (typical)
0.26 W
show more


Power consumption (max)
Power consumption (max)
1.44 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) type supported
Passive PoE
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

Weight & dimensions

Width
Width
102 mm
show more


Depth
Depth
81.5 mm
show more


Height
Height
25 mm
show more


Weight
Weight
210 g
show more

Certificates

Certification
CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
show more
