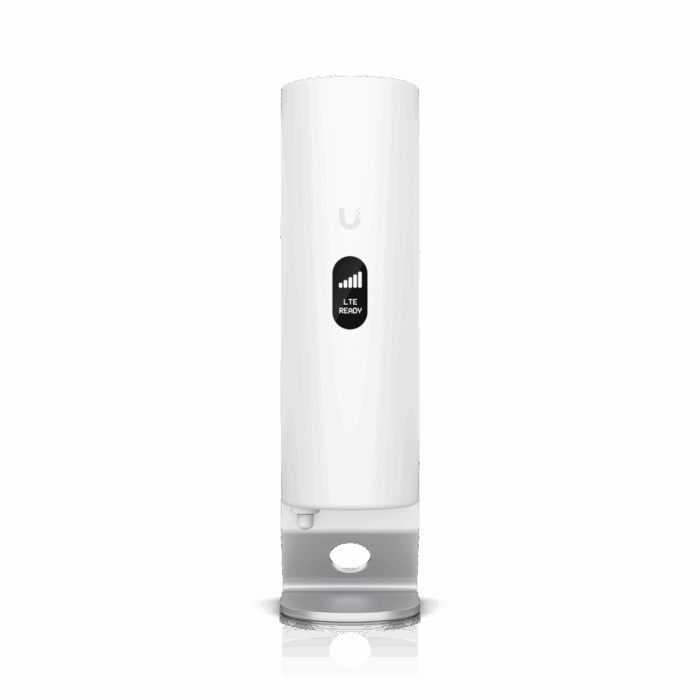

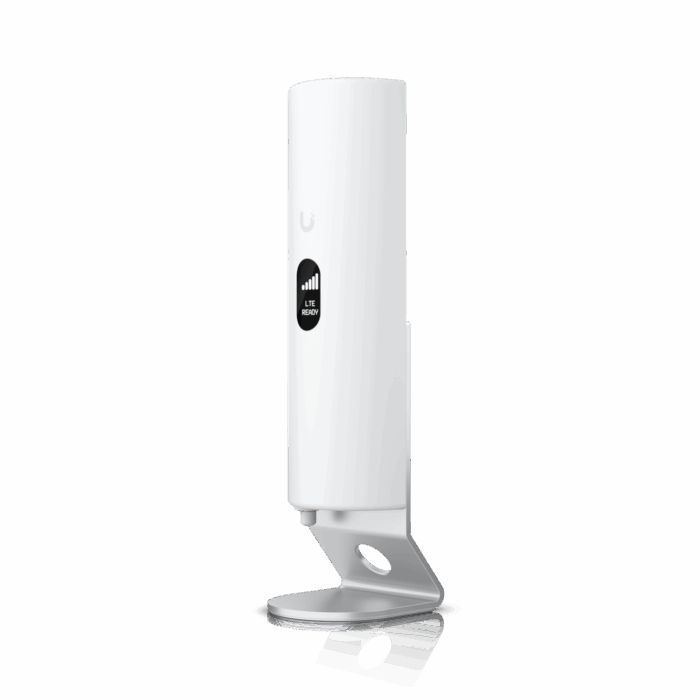

The Ubiquiti LTE Backup Pro is a reliable device designed to ensure uninterrupted connectivity. Featuring a sleek Grey and White color scheme, the unit is encased in durable Polycarbonate (PC). It offers versatile mounting options, with provisions for both desktop and wall installation.
The device includes an internal antenna with an RP-SMA connector type, ensuring a streamlined and compact setup. Users can easily navigate settings via the integrated LCM display.
Powered by a MIPS processor, specifically the MIPS32 74Kc model, the LTE Backup Pro is engineered for efficient performance. It supports Ethernet LAN data rates of up to 1000 Mbit/s and operates on a 4G data network, providing downlink speeds of up to 150 Mbit/s and uplink speeds up to 50 Mbit/s.
For connectivity, it uses a NanoSIM card and offers a WAN connection through an Ethernet (RJ-45) port, making integration with existing network setups straightforward and hassle-free.
| Mechanical | |
|---|---|
| Dimensions | 66 x 202 x 32 mm (2.6 x 8 x 1.3") |
| Weight | Without mount: 223 g (7.9 oz) With mount: 336 g (11.9 oz) |
| Enclosure material | Polycarbonate |
| Mount material | Stand: aluminum Wall mount: polycarbonate |
| Hardware | |
| Processor | 74 Kc MIPS processor at 775 MHz |
| Memory | 128 MB DDR2 |
| Management interface | Ethernet |
| Networking interface | (2) GbE RJ45 ports LTE Category 4 radio |
| SIM | nano-SIM |
| LTE bands | Bands 1, 3, 7, 8, 20, 28 |
| Power method | PoE+ Passive PoE, 48V |
| Power Supply | UniFi PoE switch 48V, 0.5A PoE adapter |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8.5W |
| Max. TX power | 19 dBm |
| MIMO | 2 x 2 LTE Category 4 |
| Throughput speeds | Download 150 Mbps / Upload 50 Mbps * Speed and coverage depend on location and network performance. |
| LCM display | 1.54" screen |
| Button | Factory reset |
| Mounting | Wall mount or foot stand (Included) |
| ESD/EMP protection | Air/Contact: ± 24 kV |
| Ambient operating temperature | -10 to 60° C (-14 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE |
| Software | |
| Management application | UniFi Network: Version 6.5.55 and later |
