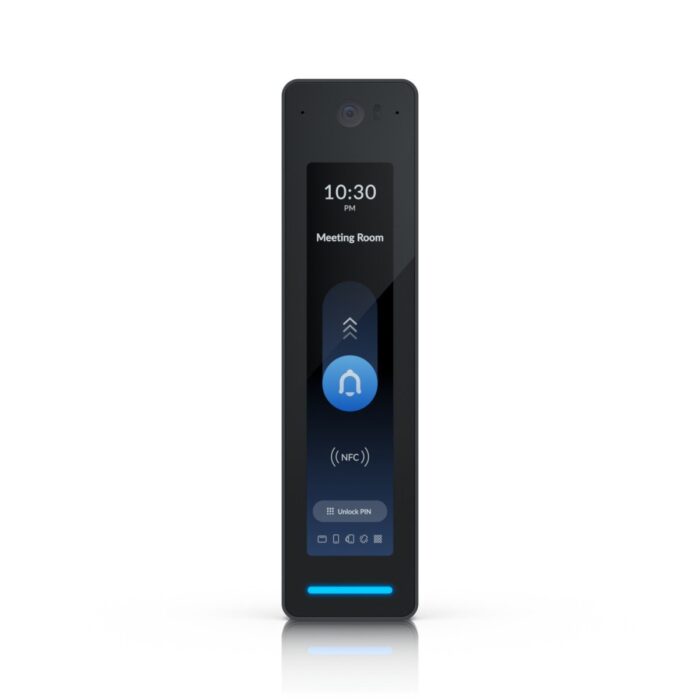

The Ubiquiti UA-G3-Pro-B is a sophisticated outdoor access control device, engineered with robust weatherproofing and an IP55 rating. It includes a proximity sensor and a high-definition camera with viewing angles of 96.67° horizontally, 123.15° vertically, and 153.11° diagonally. The device also has integrated audio capabilities, featuring a built-in microphone and speaker, all housed in a durable polycarbonate and glass enclosure with an aluminum alloy mount for long-lasting use. The PoE power method simplifies installation.
This model is distinguished by its advanced connectivity options, including BLE 4.2 and NFC, facilitating smooth interactions. Its comprehensive NFC technology supports multiple formats in line with various ISO/IEC standards, enhancing its functionality across different environments. Built to function effectively in temperatures ranging from -30 to 45°C and with an ambient humidity tolerance of 5 to 90% non-condensing, it is equipped to manage diverse outdoor conditions.
With the UniFi Access Management application, the UA-G3-Pro-B offers easy integration and user-friendly management. Built-in LED indicators provide status feedback, improving the user experience. The device is further distinguished by advanced ESD/EMP protection and certifications including CE, FCC, and IC, making it a dependable choice for access control in challenging environments.
| Mechanical | |
|---|---|
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Weight | 136 g (4.8 oz) |
| Enclosure material | Polycarbonate, glass |
| Mount material | Aluminium alloy |
| Mounting | Wall mount (Included) Gangbox mount (Included) Angle mount (Optional) Junction box (Optional) |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensor | Proximity sensor |
| Camera view angle | H: 96.67°, V: 123.15°, D: 153.11° |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 1.5W |
| LEDs | R/G/B/W/Amber (Learn more) |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| Operating environment | Outdoor use |
| Ambient operating temperature | Device: -30 to 45° C (-22 to 113° F) Display:* -10 to 45° C (14 to 113° F) *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: Version 3.0.15 and later |
