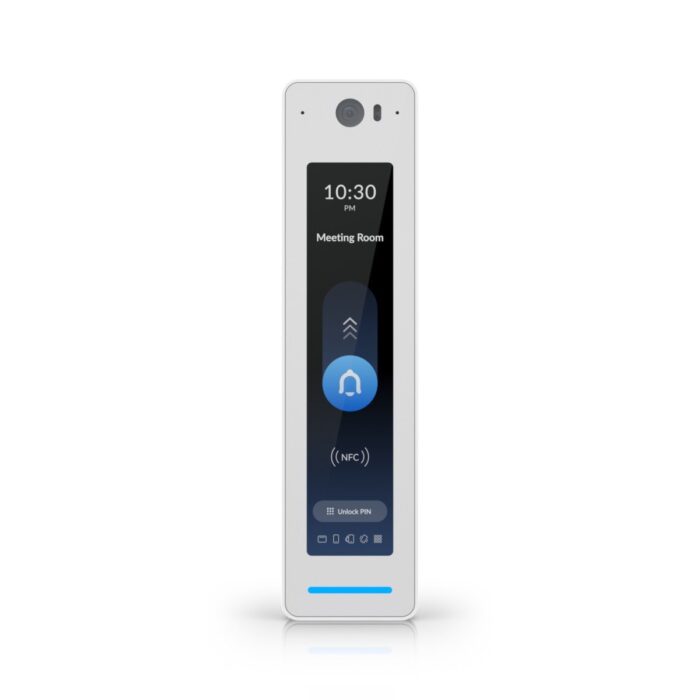

The Ubiquiti UA-G3-Pro-W is an advanced outdoor access device that combines durable construction with state-of-the-art technology. Built with IP55 weatherproofing and a sturdy polycarbonate and glass enclosure, it is designed to withstand challenging environmental conditions while ensuring reliable performance. This model is ideal for interactive applications, featuring a proximity sensor, a built-in microphone, and a 1.5W speaker. It offers flexibility in installation with support for various mounting options, including wall, gangbox, and angle mounts.
The device is equipped with a GbE RJ45 port for networking and supports critical connectivity options like BLE 4.2 and NFC, facilitating efficient communication and control. It operates on Power over Ethernet (PoE) with a supported voltage range of 48V DC and is highly power-efficient with a consumption rate of just 6W. It functions effectively in a wide temperature range from -30 to 45°C, making it suitable for diverse outdoor environments.
Management of the device is handled through the UniFi Access application, version 3.0.15 and later, enhancing usability and integration into existing networks. The UA-G3-Pro-W stands out with its superior camera view angle of H: 96.67°, V: 123.15°, D: 153.11°, providing a wider and more comprehensive monitoring perspective. Ubiquiti's dedication to innovation and quality is evident in this model, making it a valuable addition to any modern access control system.
| Mechanical | |
|---|---|
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Weight | 136 g (4.8 oz) |
| Enclosure material | Polycarbonate, glass |
| Mount material | Aluminium alloy |
| Mounting | Wall mount (Included) Gangbox mount (Included) Angle mount (Optional) Junction box (Optional) |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensor | Proximity sensor |
| Camera view angle | H: 96.67°, V: 123.15°, D: 153.11° |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 1.5W |
| LEDs | R/G/B/W/Amber (Learn more) |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| Operating environment | Outdoor use |
| Ambient operating temperature | Device: -30 to 45° C (-22 to 113° F) Display:* -10 to 45° C (14 to 113° F) *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: Version 3.0.15 and later |
