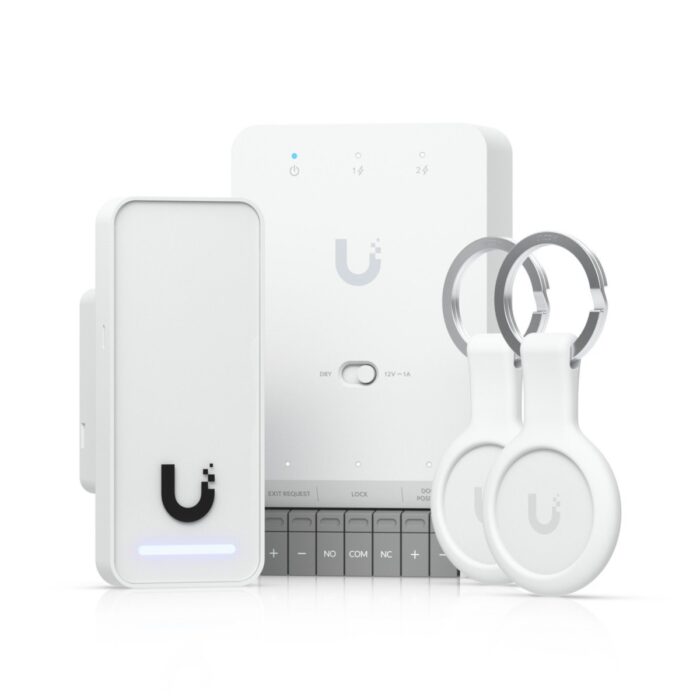

The Ubiquiti UA-G3-SK is a mechanical access control hub designed to efficiently and securely manage access points. Created by the renowned company Ubiquiti, this model is a key component of their advanced access control solutions, making it perfect for indoor applications where reliability and performance are crucial. The UA-G3-SK has a sturdy polycarbonate enclosure that ensures durability and complies with various safety standards, including UL 294 and CE certification.
This innovative device supports a range of technical specifications to enhance its functionality. The UA-G3-SK includes five networking interfaces (10/100/1000 Base-T) and offers extensive PoE options for easy installation, with a maximum power consumption of 50W using PoE output. Its capability to manage multiple PoE passthrough outputs provides convenient connectivity solutions for various devices. Additionally, the device operates efficiently within an ambient temperature range of 0 to 40°C and maintains functionality in humidity conditions from 5 to 95% non-condensing, making it suitable for diverse indoor environments.
Equipped with advanced features, the UA-G3-SK allows for seamless integration into existing systems, ensuring smooth operations. Its digital input capabilities support requests for exits and entries, while the LED indicators offer real-time status updates. Ubiquiti's dedication to innovation and security is clearly reflected in the UA-G3-SK, making it an excellent choice for businesses looking to upgrade their access control systems.
| UA-Hub-Door Mechanical |
|||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") | ||||||||||||||||||||||||
| Weight | 363 g (12.8 oz) | ||||||||||||||||||||||||
| Enclosure material | Polycarbonate | ||||||||||||||||||||||||
| Mounting material | Polycarbonate | ||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||
| Networking interface | (5) 10/100/1000 Base-T | ||||||||||||||||||||||||
| Power method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950/62368 LPS/PS2 PSU |
||||||||||||||||||||||||
| Max. power consumption | Without PoE output: 30W With PoE output: 50W |
||||||||||||||||||||||||
| PoE input | 50V DC, 1A | ||||||||||||||||||||||||
| PoE output | PoE passthrough, (4) PoE, 50V DC, total 20W | ||||||||||||||||||||||||
| LEDs | White/blue (Learn more) | ||||||||||||||||||||||||
| Button | (1) Factory-reset | ||||||||||||||||||||||||
| Digital input | Request to exit/request to enter/remote release/door position sensor | ||||||||||||||||||||||||
| Dry output relay | Lock: 30V DC, 1A Aux: 30V DC, 1A |
||||||||||||||||||||||||
| Powered output relay | Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A |
||||||||||||||||||||||||
| Operating environment | Indoor use only | ||||||||||||||||||||||||
| Ambient operating temperature | 0 to 40° C (32 to 104° F) | ||||||||||||||||||||||||
| Ambient operating humidity | 5 to 95% noncondensing | ||||||||||||||||||||||||
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
||||||||||||||||||||||||
| UL 294 statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
||||||||||||||||||||||||
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 | ||||||||||||||||||||||||
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 | ||||||||||||||||||||||||
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 | ||||||||||||||||||||||||
| Wiring Information | |||||||||||||||||||||||||
| Wiring gauge requirements (AWG) |
UACC-Cable-DoorLockRelay (18 AWG) is recommended. |
||||||||||||||||||||||||
| PoE cabling requirements | The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm 2 ) for horizontal or riser cable. | ||||||||||||||||||||||||
| UA-G2 Mechanical |
|||||||||||||||||||||||||
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") | ||||||||||||||||||||||||
| Weight | 82 g (2.9 oz) | ||||||||||||||||||||||||
| Enclosure material | Polycarbonate, glass | ||||||||||||||||||||||||
| Mounting | In wall, gang box | ||||||||||||||||||||||||
| Weatherproofing | IP55 | ||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||
| Networking interface | (1) 10/100 MbE RJ45 port | ||||||||||||||||||||||||
| Connectivity | BLE 4.1 | ||||||||||||||||||||||||
| Power method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
||||||||||||||||||||||||
| Supported voltage range | 48V DC | ||||||||||||||||||||||||
| Max. power consumption | 5W | ||||||||||||||||||||||||
| ESD/EMP protection | Air: ±15kV, contact: ±8kV | ||||||||||||||||||||||||
| Sensors | Proximity sensor | ||||||||||||||||||||||||
| Speaker | (1) 8 ohm, 0.7W | ||||||||||||||||||||||||
| LEDs | R/G/B/W (Learn more) | ||||||||||||||||||||||||
| Button | (1) Factory-reset | ||||||||||||||||||||||||
| NFC frequency | 13.56 MHz | ||||||||||||||||||||||||
| NFC read range | < 30 mm | ||||||||||||||||||||||||
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
||||||||||||||||||||||||
| Operating environment | Outdoor use | ||||||||||||||||||||||||
| Ambient operating temperature | -30 to 45° C (-22 to 113° F) | ||||||||||||||||||||||||
| Ambient operating humidity | 5 to 90% noncondensing | ||||||||||||||||||||||||
| Software information | The software version of a product can be checked at https://unifi.ui.com | ||||||||||||||||||||||||
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
||||||||||||||||||||||||
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
||||||||||||||||||||||||
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
||||||||||||||||||||||||
| CAN/ULC-60839-11-1 Grade | Grade assignment: I | ||||||||||||||||||||||||
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 | ||||||||||||||||||||||||
| Document number, and issue date and/or revision level | UA-G2/UA-G2-Black, V02 | ||||||||||||||||||||||||
| UA-Card Mechanical |
|||||||||||||||||||||||||
| Dimensions | 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03") | ||||||||||||||||||||||||
| Weight | 5 g (0.18 oz) | ||||||||||||||||||||||||
| Format | ISO 7810 ID-1 | ||||||||||||||||||||||||
| NFC frequency | 13.56 MHz | ||||||||||||||||||||||||
| NFC technology | ISO/IEC 14443 Type A MIFARE DESFire UniFi Access Proprietary Security Protocol |
||||||||||||||||||||||||
