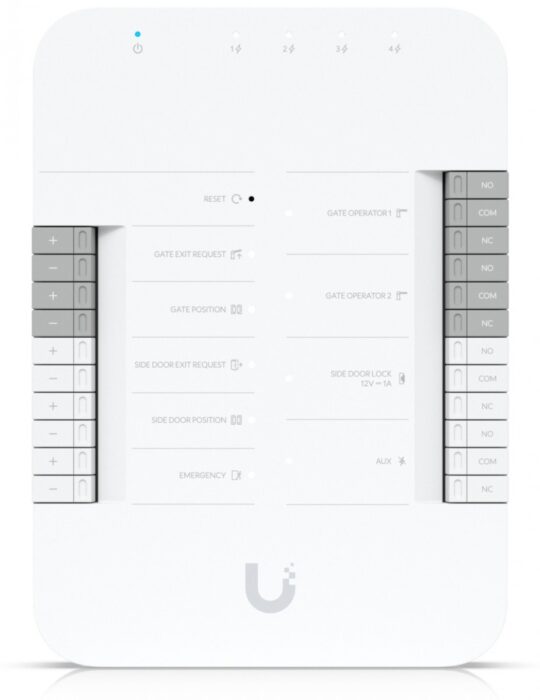

The Ubiquiti UA-Hub-Gate is a key component for modern access control systems, designed mainly for indoor use, but it can also be deployed outdoors when placed in a waterproof junction box. This model features a strong polycarbonate enclosure, providing both durability and reliability. Its compact size of 175 x 126 x 26 mm (6.9 x 5 x 1 inch) and light weight of 460 grams (1 pound) make it easy to install using the included DIN rail.
The UA-Hub-Gate is equipped with five networking interfaces of 10/100/1000 Base-T, ensuring ample connectivity and power through PoE++. It supports a maximum input of 50V DC and a maximum power consumption of 50W with PoE output. The product offers comprehensive digital input options and dry output relay connections to ensure compatibility with various electronic locking systems. It meets UL 294 compliance levels, ensuring a high standard of security, and operates within an ambient temperature range of -30 to 60 degrees Celsius (-22 to 104 degrees Fahrenheit), allowing for flexible deployment in different environments.
With its advanced technical capabilities, the Ubiquiti UA-Hub-Gate stands out by offering advanced power delivery through PoE passthrough, supporting up to four additional PoE devices on its own. Its durability and high level of security certifications, including CE, FCC, IC, UL 294, and CAN/ULC-60839-11-1, make it an excellent choice for enhancing access control systems in various settings.
| Mechanical | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1") | |||||||||||||||||||||||||
| Weight | 460 g (1 lb) | |||||||||||||||||||||||||
| Enclosure material | Polycarbonate | |||||||||||||||||||||||||
| Mounting | Din-rail (Included) | |||||||||||||||||||||||||
| Hardware | ||||||||||||||||||||||||||
| Networking interface | (5) 10/100/1000 Base-T | |||||||||||||||||||||||||
| Power method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
|||||||||||||||||||||||||
| Max. power consumption | Without PoE output: 22W With PoE output: 50W |
|||||||||||||||||||||||||
| PoE input | 50V DC, 1A | |||||||||||||||||||||||||
| PoE output | PoE passthrough, (4) PoE, 50V DC, Max. 28W | |||||||||||||||||||||||||
| LEDs | White/blue (Learn more) | |||||||||||||||||||||||||
| Button | (1) Factory reset | |||||||||||||||||||||||||
| Digital input | Gate exit request, gate position, side door exit request, side door position, emergency | |||||||||||||||||||||||||
| Dry output relay | (2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A |
|||||||||||||||||||||||||
| Output relay | Side door lock: 12V DC, up to 1A | |||||||||||||||||||||||||
| Recommend max. cable length |
|
|||||||||||||||||||||||||
| PoE cabling requirements | Category 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
|||||||||||||||||||||||||
| Operating environment | Indoor use only with device itself Outdoor use with waterproof junction box |
|||||||||||||||||||||||||
| Ambient operating temperature | -30 to 60° C (-22 to 104° F) | |||||||||||||||||||||||||
| Ambient operating humidity | 5 to 90% non-condensing | |||||||||||||||||||||||||
| Software information | The software version of a product can be checked at https://unifi.ui.com | |||||||||||||||||||||||||
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
|||||||||||||||||||||||||
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
|||||||||||||||||||||||||
| PoE cabling requirements | Category 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
|||||||||||||||||||||||||
| CAN/ULC-60839-11-1 Grade | Grade assignment: I | |||||||||||||||||||||||||
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 | |||||||||||||||||||||||||
| Document number, and issue date and/or revision level | UA-Hub-Gate, V01 |
