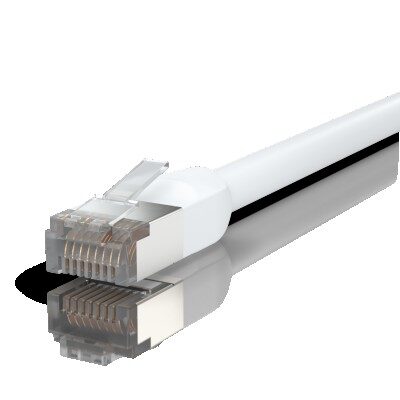

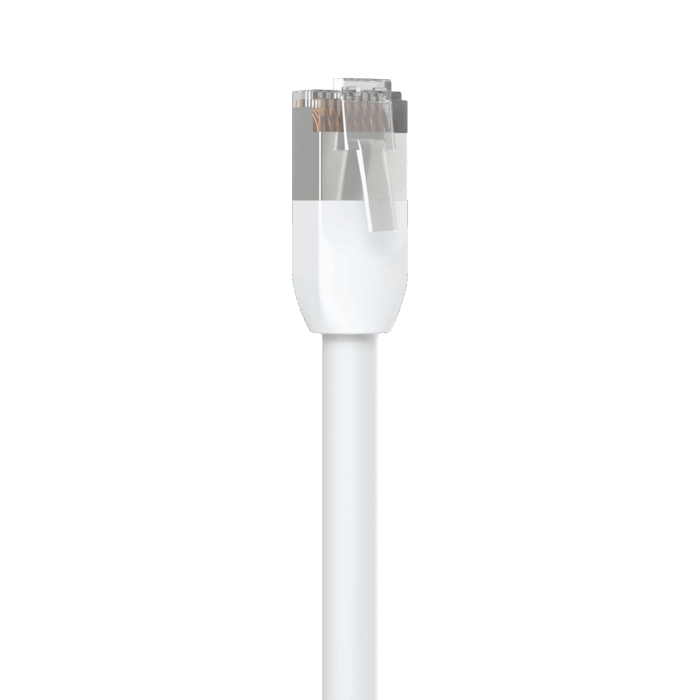

The Ubiquiti UACC-Cable-Patch-Outdoor-C6A-8M-W is a high-performance outdoor patch cable engineered for dependable connectivity across various settings. This cable is part of the Category 5e series and features a shielded twisted pair (STP) configuration to reduce interference and ensure stable data transmission. It boasts a robust thermoplastic elastomer (TPE) jacket that not only protects the internal wires but also offers resistance to weather elements, making it ideal for outdoor installations. The cable is built to withstand tough conditions, with an operating temperature range from -40 to 80°C (-40 to 176°F), ensuring consistent performance even in extreme temperatures.
Depending on its length, the cable weighs between 60 and 315 grams (2.12 to 11.11 ounces) and is available in various lengths from 1 to 8 meters (3.28 to 26.25 feet) to meet diverse installation requirements. It is UV resistant according to ASTM G 151/154 standards, which guarantees durability when exposed to sunlight, and carries a flame rating of VW-1 (UL1581) for added safety against fire risks. The 24 AWG stranded copper conductors provide excellent conductivity, ensuring an efficient and fast network.
The Ubiquiti UACC-Cable-Patch-Outdoor-C6A-8M-W meets the TIA/EIA-568-B.2 and ISO/IEC 11801 standards, making it a reliable option for both residential and commercial settings. Its solid construction and advanced features distinguish it from standard patch cables, ensuring the quality and durability needed for dependable network communication.
| Weight | 60 / 90 / 125 / 200 / 315 g (2.12 / 3.17 / 4.41 / 7.05 / 11.11 oz) |
| Cable length | 1 / 2 / 3 / 5 / 8 m (3.28 / 6.56 / 9.84 / 16.40 / 26.25 ft) |
| Cable color | White |
| Cable type | Category 5e |
| Shielding type | STP |
| Flame rating | VW-1 (UL1581) |
| UV resistance | ASTM G 151/154 |
| Conductor wire gauge | 24 AWG |
| Conductor type | Stranded copper |
| Jacket material | Thermoplastic elastomer (TPE) |
| Jacket diameter | 6.3 mm (0.25") |
| Bend radius | Min. 24 mm (0.94") |
| Storage temperature | -30 to 75°C (-22 to 167°F) |
| Installation temperature | -20 to 60°C (-4 to 140°F) |
| Ambient operating temperature | -40 to 80°C (-40 to 176°F) |
| Anti-crosstalk divider | No |
| Standards | TIA/EIA-568-B.2 ISO/IEC 11801 |
