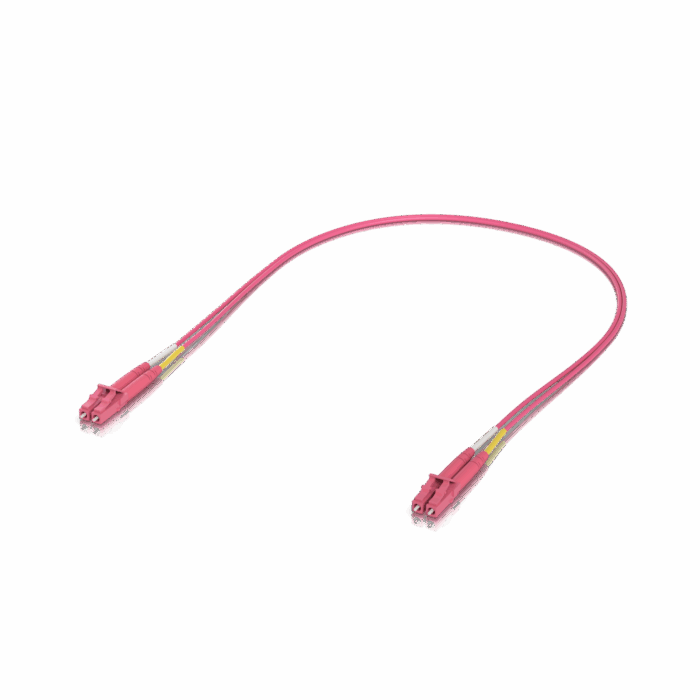

The Ubiquiti UACC-OFC-M2-LULU-1M-50 is a high-performance OM4 Duplex LC-LC Fibre Optic Cable designed for optimal data transmission in data centers and enterprise environments. It offers various length options ranging from 1 to 30 meters, tailored to meet different installation needs while ensuring exceptional signal integrity. The cable features a low smoke zero halogen (LSZH) jacket material, enhancing safety by reducing harmful emissions and contributing to its durability and longevity. With an impressive insertion loss of ≤ 0.3 dB and a return loss of ≥ 35 dB, the cable ensures minimal signal degradation and superior performance.
The cable is equipped with a polish type of UPC to UPC and a wavelength of 850/1300 nm, engineered for enhanced data transmission speeds and reliability. It supports an ambient operating temperature range of -40 to 75° C (-40 to 167° F), making it suitable for various environments, from cooler data centers to warmer installations. Built to withstand up to 1,000 mating cycles with a repeatability of ≤ 0.1 dB, this cable is a robust choice for high-frequency, high-capacity networks.
| Cable length | 1, 3, 5, 10, 15, 30 m (3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft) |
| Connector type | LC-LC |
| Fiber mode | OM4 |
| Fiber type | Duplex |
| Polish | UPC to UPC |
| Wavelength | 850/1300 nm |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| Jacket OD | 2.0 mm |
| Jacket color | Rose |
| Insertion loss | ≤ 0.3 dB |
| Return loss | ≥ 35 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient operating temperature | -40 to 75° C (-40 to 167° F) |
