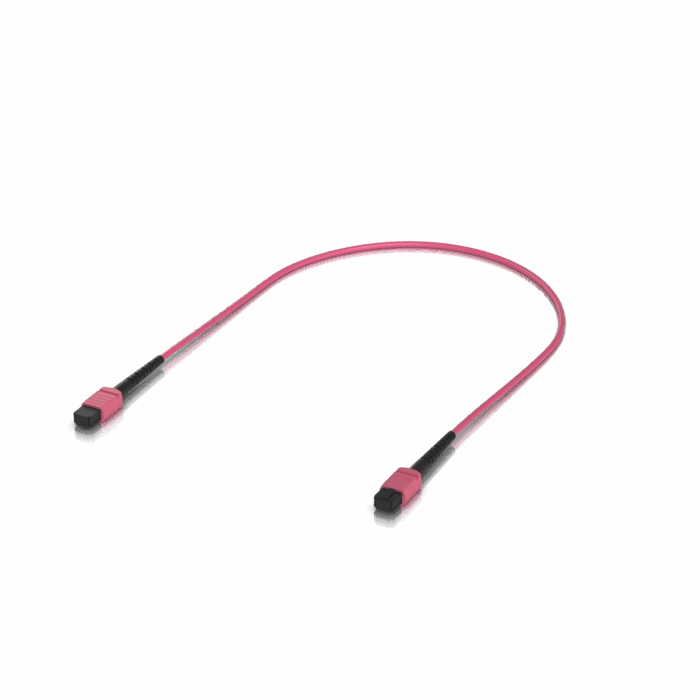

The MPO-MPO OM4 12Fiber Cable by TechCable is a cutting-edge solution for high-speed data transmission in fiber optic networks. This versatile cable is available in lengths ranging from 0.5 meters to 100 meters, catering to various installation requirements while maintaining optimal performance. It features a female-to-female connector configuration and operates at a wavelength of 850 nm, making it ideal for efficient data handling in modern data centers and telecommunications environments.
Constructed with a low smoke zero halogen (LSZH) cable jacket, the MPO-MPO cable reduces toxic emissions in case of fire, providing safety and compliance in critical infrastructure. It exhibits a low insertion loss of ≤ 0.6 dB and a high return loss of ≥ 20 dB. Its durability is evidenced by a minimal loss of ≤ 0.2 dB after 1,000 mating cycles, highlighting its reliability for long-term use. Additionally, the cable performs effectively in a wide temperature range of -40 to 75° C (-40 to 167° F), making it suitable for diverse environmental conditions.
With a sleek rose-colored jacket and a diameter of 3.0 mm, the cable not only offers functional benefits but also adds an aesthetic appeal to your setup. Its repeatability factor of ≤ 0.1 dB ensures consistent performance, distinguishing the MPO-MPO OM4 cable from its competitors. Choose this exceptional product for seamless connectivity in fiber optic applications.
| Cable length | 0.5, 1, 3, 5, 10, 15, 30, 60, 100 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft) |
| Connector type | MPO-MPO |
| Fiber mode | OM4 |
| Fiber type | 12Fiber |
| Gender | Female to female |
| Wavelength | 850 nm |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| Jacket OD | 3.0 mm |
| Jacket colour | Rose |
| Insertion loss | ≤ 0.6 dB |
| Return loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient operating temperature | -40 to 75° C (-40 to 167° F) |
