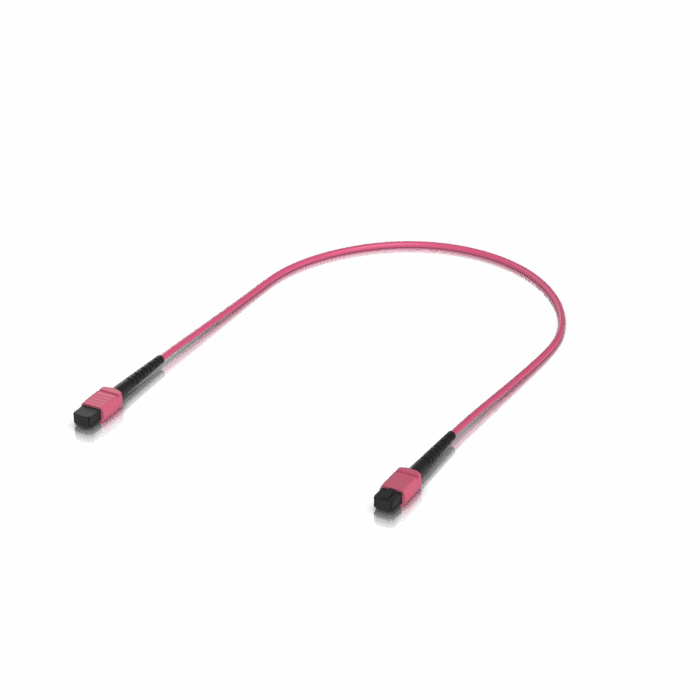

The MPO-MPO OM4 Fiber Optic Cable, manufactured by a well-known company, is an excellent option for high-speed data transmission applications. It comes in several lengths, such as 0.5 m, 1 m, 3 m, 5 m, 10 m, 15 m, 30 m, 60 m, and 100 m, making it a versatile solution for various connectivity requirements. Its advanced 12-fiber configuration provides optimal performance, ideal for settings demanding high bandwidth and minimal signal loss.
This cable is constructed with a Low Smoke Zero Halogen (LSZH) jacket material, meeting safety standards and ensuring a long-lasting lifespan. It features an impressive insertion loss of ≤ 0.6 dB and a return loss of ≥ 20 dB, maintaining strong signal integrity. With an ambient operating temperature range of -40 to 75° C (-40 to 167° F), it is robust enough for industrial and commercial settings, proving to be a dependable choice for any fiber optic network.
The distinct rose-colored jacket not only adds an aesthetic appeal but also makes it easier to identify in network setups. With superior durability rated at ≤ 0.2 dB after 1,000 mating cycles, this cable is built to last, ensuring exceptional performance in your connections. Opt for the MPO-MPO OM4 Fiber Optic Cable to enhance your networking capabilities.
| Cable length | 0.5, 1, 3, 5, 10, 15, 30, 60, 100 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft) |
| Connector type | MPO-MPO |
| Fiber mode | OM4 |
| Fiber type | 12Fiber |
| Gender | Female to female |
| Wavelength | 850 nm |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| Jacket OD | 3.0 mm |
| Jacket colour | Rose |
| Insertion loss | ≤ 0.6 dB |
| Return loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient operating temperature | -40 to 75° C (-40 to 167° F) |
