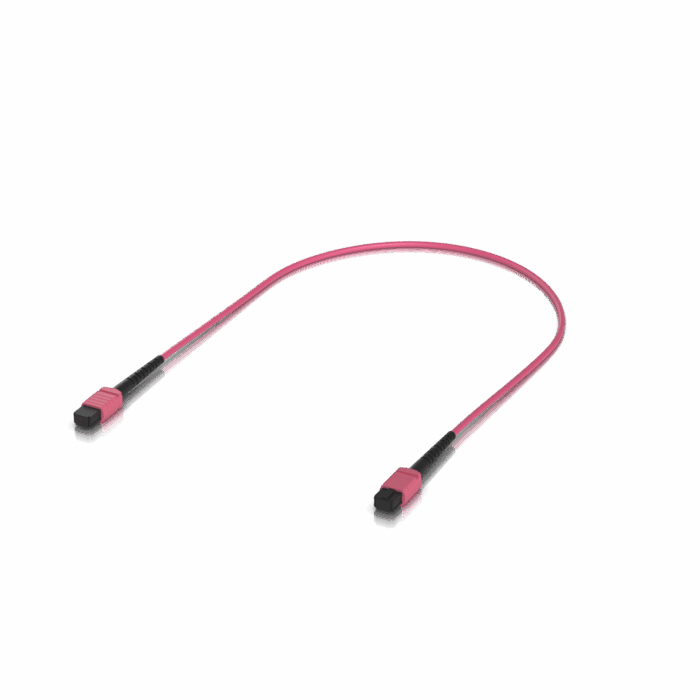

The MPO-MPO OM4 Fiber Cable, crafted by a reputable manufacturer, is designed for top-tier connectivity in contemporary networking settings. It is available in a range of lengths from 0.5 meters to 100 meters, providing flexible solutions for installations both large and small. Operating at a wavelength of 850 nm and featuring a durable low smoke zero halogen (LSZH) jacket, this cable not only delivers outstanding performance but also adheres to safety standards, making it suitable for a wide array of applications.
This cable is engineered for superior performance, with an insertion loss of less than or equal to 0.6 dB and a return loss of greater than or equal to 20 dB, ensuring minimum signal degradation. Its repeatability of less than or equal to 0.1 dB and durability of less than or equal to 0.2 dB after 1,000 mating cycles attest to its reliability and make it a prime choice for long-term use. Additionally, the cable can operate efficiently in temperatures ranging from -40 to 75 degrees Celsius, which allows for consistent performance even in extreme conditions.
The cable's rose-colored jacket adds aesthetic appeal and facilitates easy identification in busy server rooms. The female-to-female connection type enhances compatibility with various setups. Opt for this MPO-MPO OM4 Fiber Cable to ensure a reliable, high-performance networking solution that distinguishes itself in the marketplace.
| Cable length | 0.5, 1, 3, 5, 10, 15, 30, 60, 100 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft) |
| Connector type | MPO-MPO |
| Fiber mode | OM4 |
| Fiber type | 12Fiber |
| Gender | Female to female |
| Wavelength | 850 nm |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| Jacket OD | 3.0 mm |
| Jacket color | Rose |
| Insertion loss | ≤ 0.6 dB |
| Return loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient operating temperature | -40 to 75° C (-40 to 167° F) |
"`
