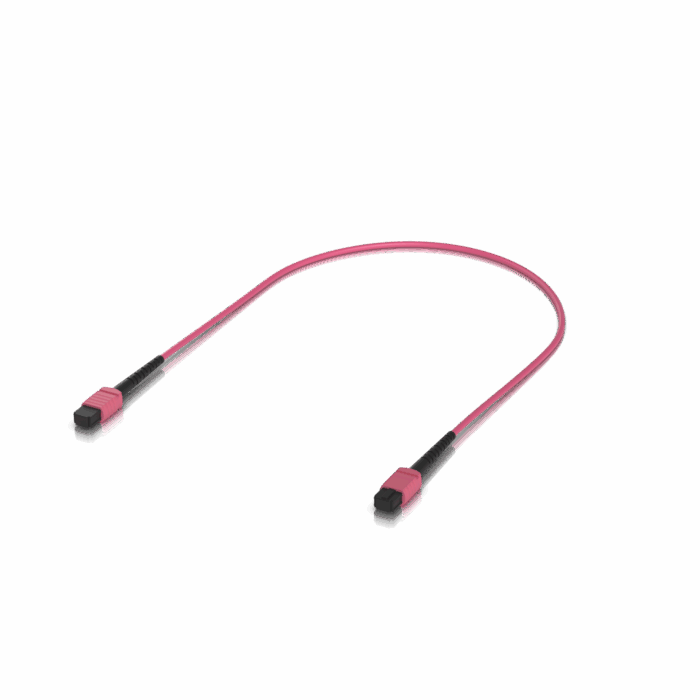

The MPO-MPO OM4 Fiber Optic Patch Cable is engineered to deliver high-performance connectivity for demanding data center and networking applications. Created by [Manufacturer Name], this product model offers a flexible cable length range from 0.5 meters to 100 meters, accommodating various installation needs. Featuring a 12-fiber structure and female-to-female configuration, this patch cable ensures robust and efficient connections.
The cable uses advanced Low Smoke Zero Halogen (LSZH) jacket material, which enhances safety by minimizing smoke and toxic emissions during fire incidents. It boasts a low insertion loss of ≤ 0.6 dB and excellent return loss of ≥ 20 dB, ensuring reliable data transmission with minimal signal degradation. The ambient operating temperature range of -40 to 75°C makes it suitable for diverse environmental conditions, maintaining strong performance even in extreme temperatures.
With a jacket outer diameter of 3.0 mm and a distinctive rose color, this cable not only meets technical specifications but also adds aesthetic appeal to installations. Its impressive durability is highlighted by a repetition tolerance of ≤ 0.2 dB after 1,000 mating cycles, ensuring long-term performance in high-demand applications.
| Cable length | 0.5, 1, 3, 5, 10, 15, 30, 60, 100 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft) |
| Connector type | MPO-MPO |
| Fiber mode | OM4 |
| Fiber type | 12Fiber |
| Gender | Female to female |
| Wavelength | 850 nm |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| Jacket OD | 3.0 mm |
| Jacket color | Rose |
| Insertion loss | ≤ 0.6 dB |
| Return loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient operating temperature | -40 to 75° C (-40 to 167° F) |
