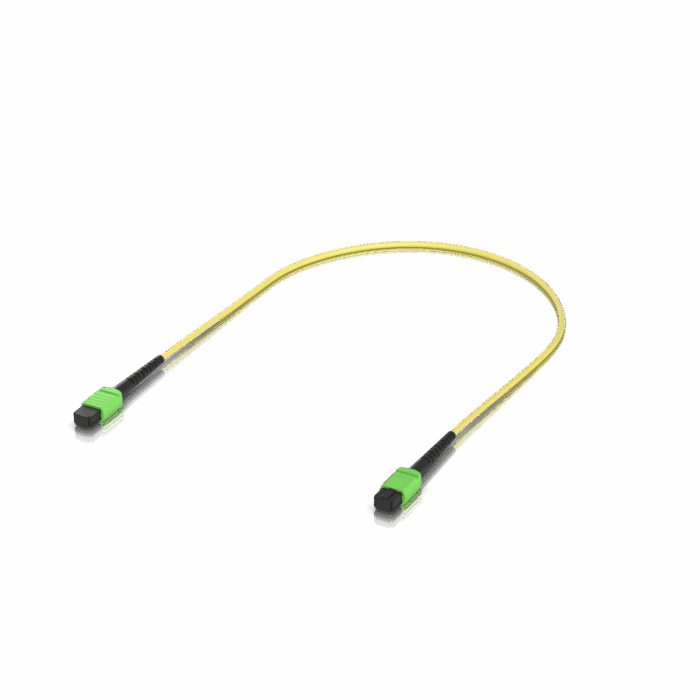

The Ubiquiti UACC-OFC-SA-MPMP-3M-10 is a high-performance MPO/APC fiber optic cable designed for efficient data transmission in high-speed networks. With a length of 10 meters, this cable is an ideal choice for applications that require sustainable performance over distances. It features a single-mode fiber (SMG657A2) configuration with 12 fibers and utilizes advanced technology to provide exceptional bandwidth capabilities.
Constructed with low smoke zero halogen (LSZH) jacket material, the UACC-OFC-SA-MPMP-3M-10 is designed with safety and low environmental impact in mind. It can withstand harsh conditions with an operating temperature range from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). The cable features low insertion loss of 0.6 dB or less and high return loss of 20 dB or more, ensuring reliable signal integrity even after extensive use. Its durability is further enhanced by a repeatability of 0.1 dB or less and the capacity to endure up to 1,000 mating cycles with degradation of 0.2 dB or less.
With a female-to-female gender configuration and standard connector type, the Ubiquiti UACC-OFC-SA-MPMP-3M-10 is an excellent solution for data center interconnects and network setups, ensuring compatibility and ease of installation across various systems. Whether you are building a new network or upgrading an existing one, this product guarantees exceptional performance and reliability, ensuring uninterrupted and efficient data transmissions.
| Cable length | 0.5, 1, 3, 5, 10 m (1.6, 3.3, 9.8, 16.4, 32.8 ft) |
| Connector type | MPO/APC-MPO/APC |
| Fiber mode | SMG657A2 |
| Fiber type | 12Fiber |
| Gender | Female to female |
| Wavelength | 1310/1550 nm |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| Jacket OD | 3.0 mm |
| Jacket color | Yellow |
| Insertion loss | ≤ 0.6 dB |
| Return loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient operating temperature | -40 to 75° C (-40 to 167° F) |
