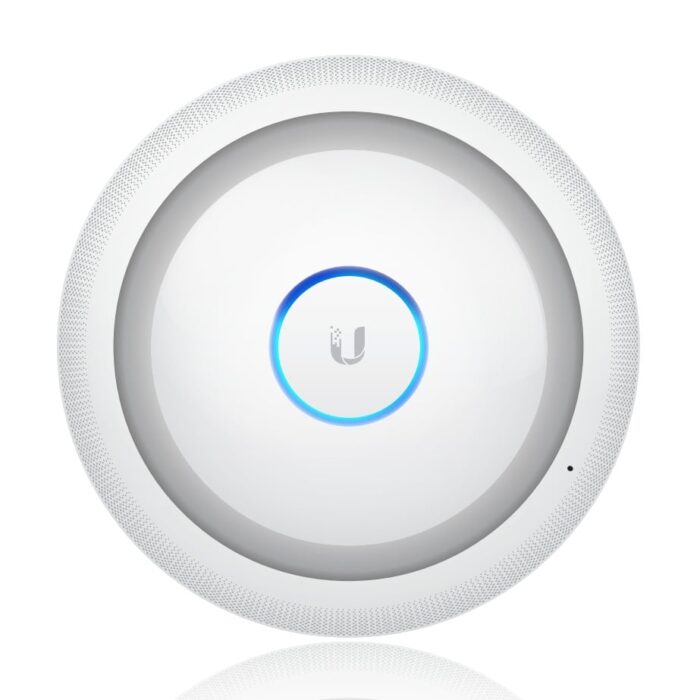

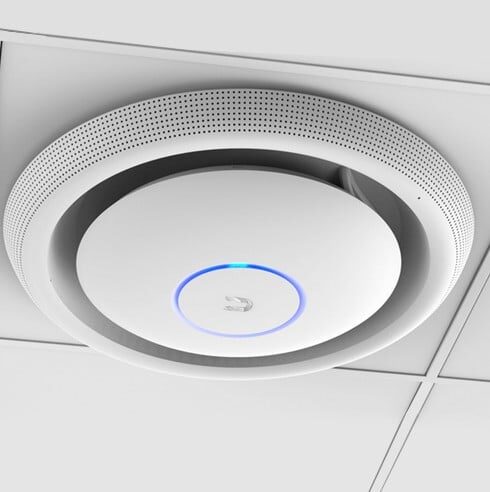

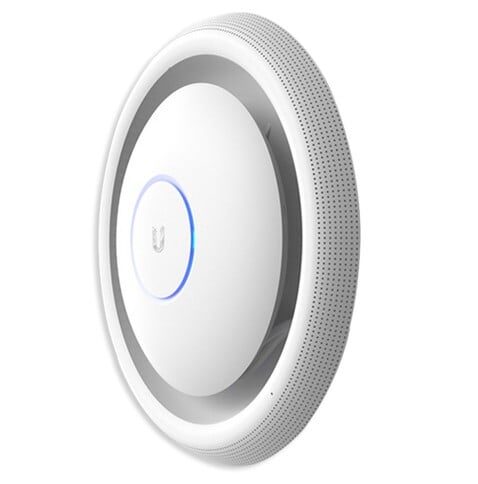

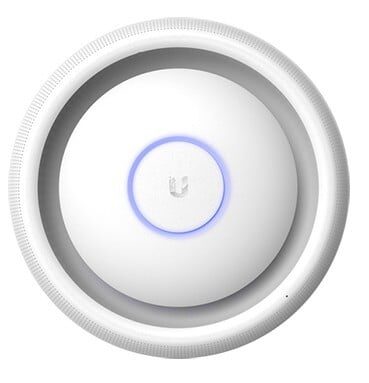

Ubiquiti Networks UAP-AC-EDU Wireless Access Point 1300 Mbps White Power over Ethernet (PoE)

The UAP-AC-EDU by Ubiquiti is designed to meet users' evolving needs. Utilizing Wi-Fi 802.11ac with 3×3 MIMO technology, this access point delivers wireless internet access in public spaces, making it ideal for campuses.

The UniFi UAP-AC-EDU is a groundbreaking device complying with the AC standard, featuring a built-in speaker and microphone. It operates in both the 2.4 and 5 GHz bands, achieving speeds of 450 Mbps and 1300 Mbps respectively. This ensures a robust connection for multiple network users simultaneously, catering to high-demand environments.

Key Features:
– Supports 3×3 MIMO technology for both 2.4 and 5 GHz bands
– Delivers high-quality sound
– Operable via smartphone
– Reliable performance amidst numerous devices
– Offers efficiency and scalability

Usage:
This device excels in complex environments, such as schools, campuses, or restaurants.

Functionality:
Equipped with a speaker and microphone, it can be configured via smartphone, reducing audio system installation costs in venues like cafés and restaurants. Its directional microphone ensures clear sound.

Innovative Design:
The device is fully compatible with the UniFi series, facilitating easy integration into existing setups. Its design reflects Ubiquiti's industrial minimalism, allowing it to blend seamlessly into any setting.

Comparison of Models:
– Environment: Indoor use is typical across models, with outdoor capability in select versions.
– Speed: Offers varying speed ranges with dual-band functionality. The UAP-AC-EDU provides 450 Mbps at 2.4 GHz and 1300 Mbps at 5 GHz.
– MIMO Configuration: Features 3×3 MIMO in the 2.4 and 5 GHz bands.
– Additional Features: Includes a built-in loudspeaker and supports 802.3at PoE+ for power.

Additional Information:
Read further details in the manufacturer's documentation or refer to the device manual for comprehensive specifications.

Features

2.4 GHz
Yes
show more


5 GHz
Yes
show more


Maximum data transfer rate
Maximum data transfer rate
1300 Mbit/s
show more


Wi-Fi data rate (max)
1300 Mbit/s
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Maximum indoor range
Maximum indoor range
122 m
show more

Security

Security algorithms
Security algorithms
AES, TKIP, WEP, WPA, WPA-PSK, WPA2
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more

Power

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


AC input voltage
AC input voltage
48 V
show more


Input current
0.5 A
show more


Power consumption (max)
Power consumption (max)
20 W
show more

Design

Product colour
Product colour
White
show more


Reset button
Yes
show more


Internal
Internal
No
show more

Antenna

Antennas quantity
3
show more


Antenna gain level (max)
Antenna gain level (max)
6 dBi
show more

Certificates

Certification
CE, FCC, IC
show more

Weight & dimensions

Width
Width
287.5 mm
show more


Depth
Depth
287.5 mm
show more


Height
Height
125.9 mm
show more


Weight
Weight
1.8 kg
show more

Packaging content

Mounting kit
Yes
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Operating temperature (T-T)
Operating temperature (T-T)
-10 – 70 °C
show more
