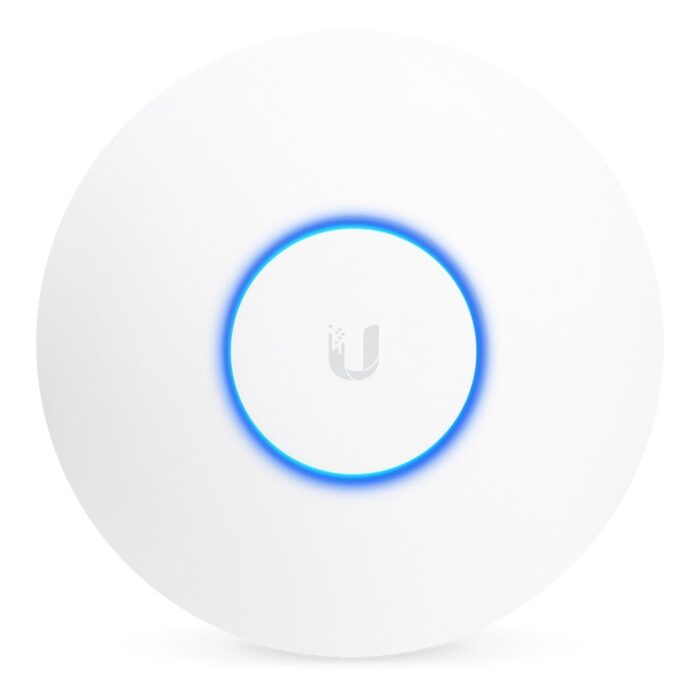

Ubiquiti Networks UniFi AC HD 1733 Mbit/s White Power over Ethernet PoE UAP-AC-HD

Unboxing

PoE Switch Compatibility for UAPs and UVCs

Compatible Models:

– US-8
– US-8-60W
– US-8-150W
– US-16-150W
– US-24-250W
– US-24-500W
– US-48-500W
– US-48-750W

Compatibility Overview:

– UVC-G3: Compatible with switches US-8-60W, US-8-150W, US-16-150W, US-24-250W, US-24-500W, US-48-500W, US-48-750W.
– UVC-G3-DOME: Compatible with all listed switches.
– UAP: Compatible with switches US-8-60W, US-8-150W, US-16-150W, US-24-250W, US-24-500W, US-48-500W, US-48-750W.
– UAP-LR: Compatible with switches US-8-60W, US-8-150W, US-16-150W, US-24-250W, US-24-500W, US-48-500W, US-48-750W.
– UAP-PRO: Compatible with all listed switches.
– UAP-AC-LITE: Compatible with all listed switches.
– UAP-AC-LR: Compatible with all listed switches.
– UAP-AC-PRO: Compatible with all listed switches.
– UAP-AC-M: Compatible with all listed switches.
– UAP-AC-M-PRO: Compatible with all listed switches.
– UAP-AC-IW: Compatible with all listed switches.
– UAP-AC-IW-PRO: Compatible with all listed switches.
– UAP-AC-HD: Compatible with switches US-8-60W, US-8-150W, US-16-150W, US-24-250W, US-24-500W, US-48-500W, US-48-750W.

Notes:
– All listed models are compatible with the UniFi switch.
– UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016 require the Instant 802.3af Gigabit PoE Converter: INS-3AF-I-G or INS-3AF-O-G.
– The UAP-AC-IW and UAP-AC-IW-PRO require 802.3at power; however, the switch only provides 802.3af.
– For the UAP-AC-IW and UAP-AC-IW-PRO, PoE passthrough is supported by all switches in the list except for models US-8 and US-8-60W.
