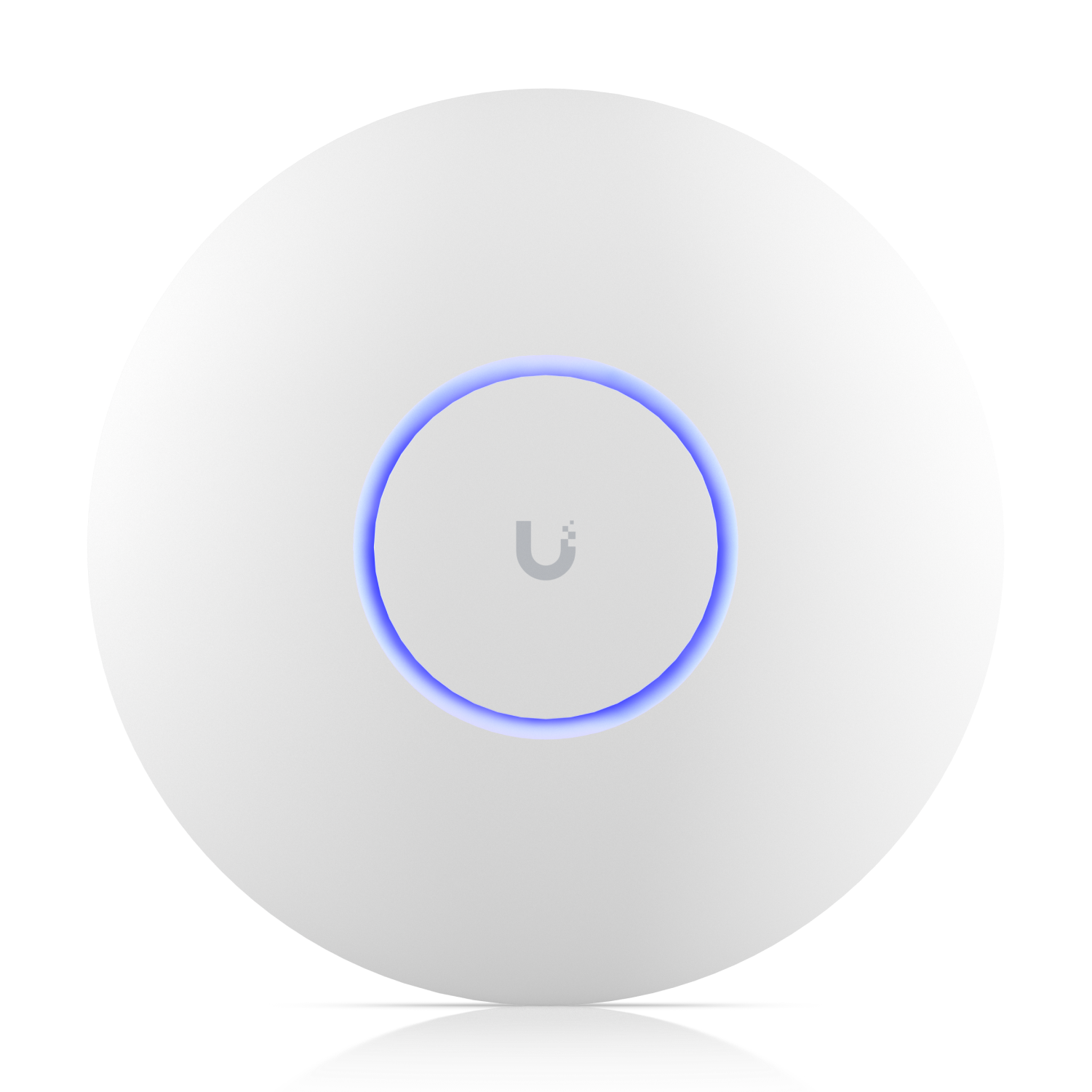

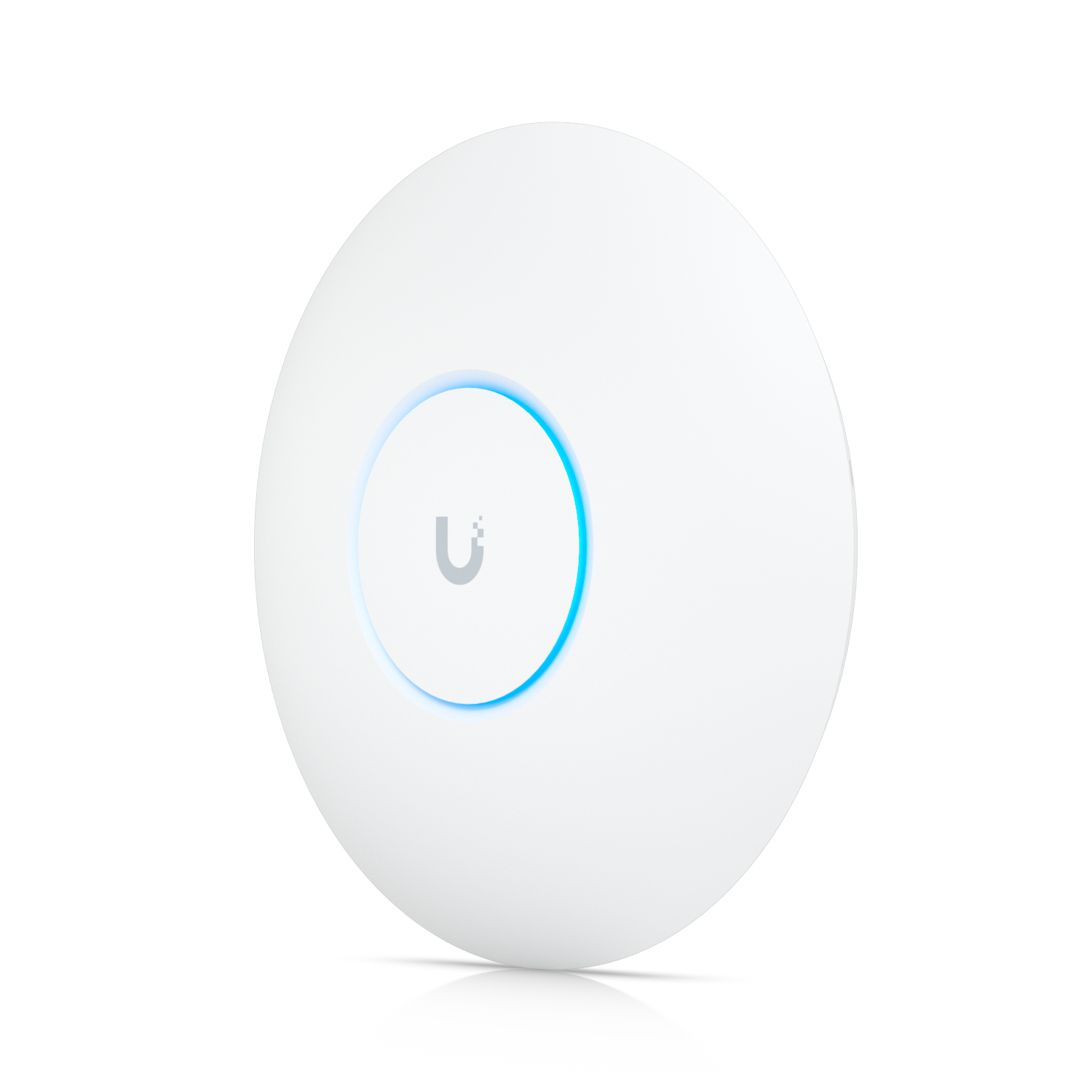

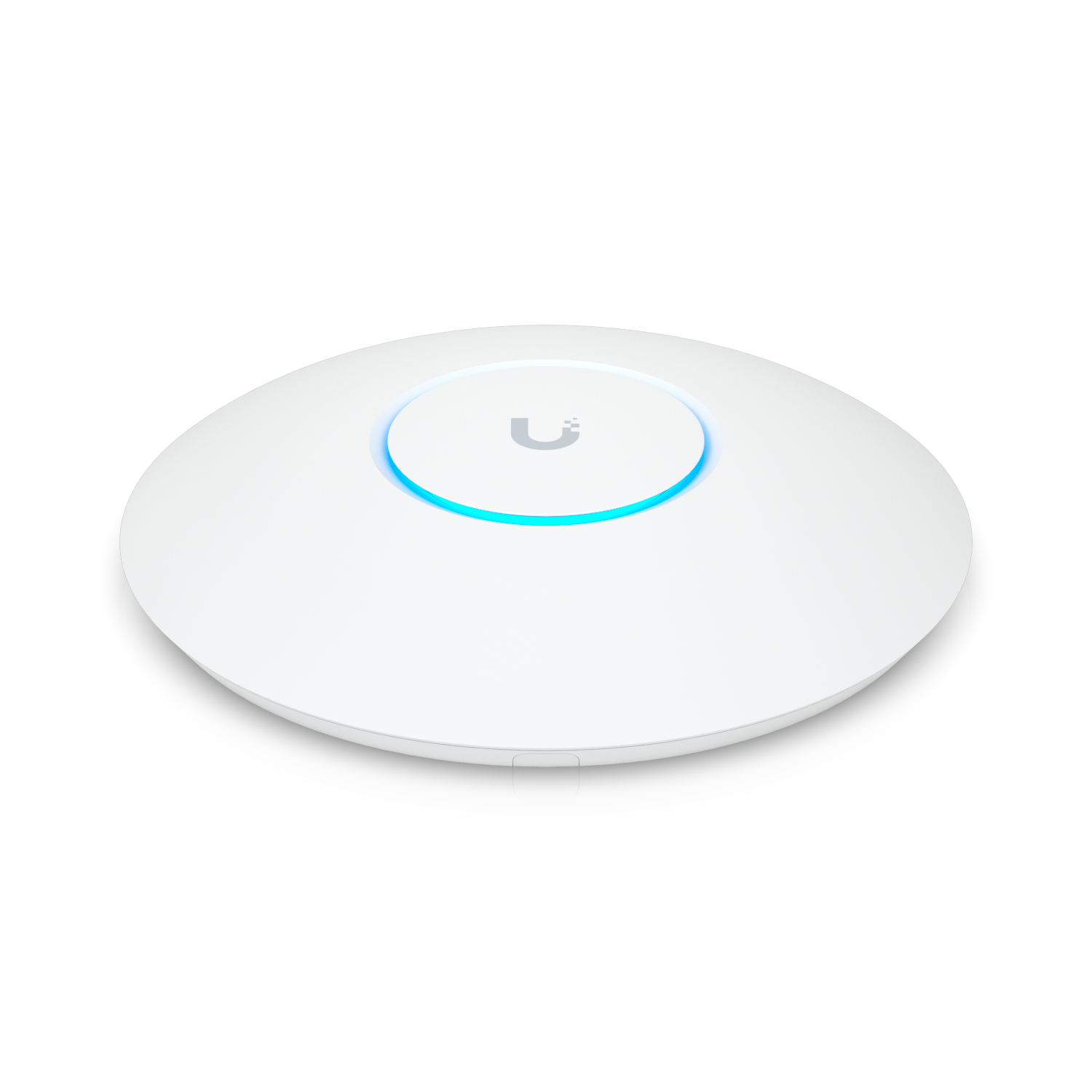

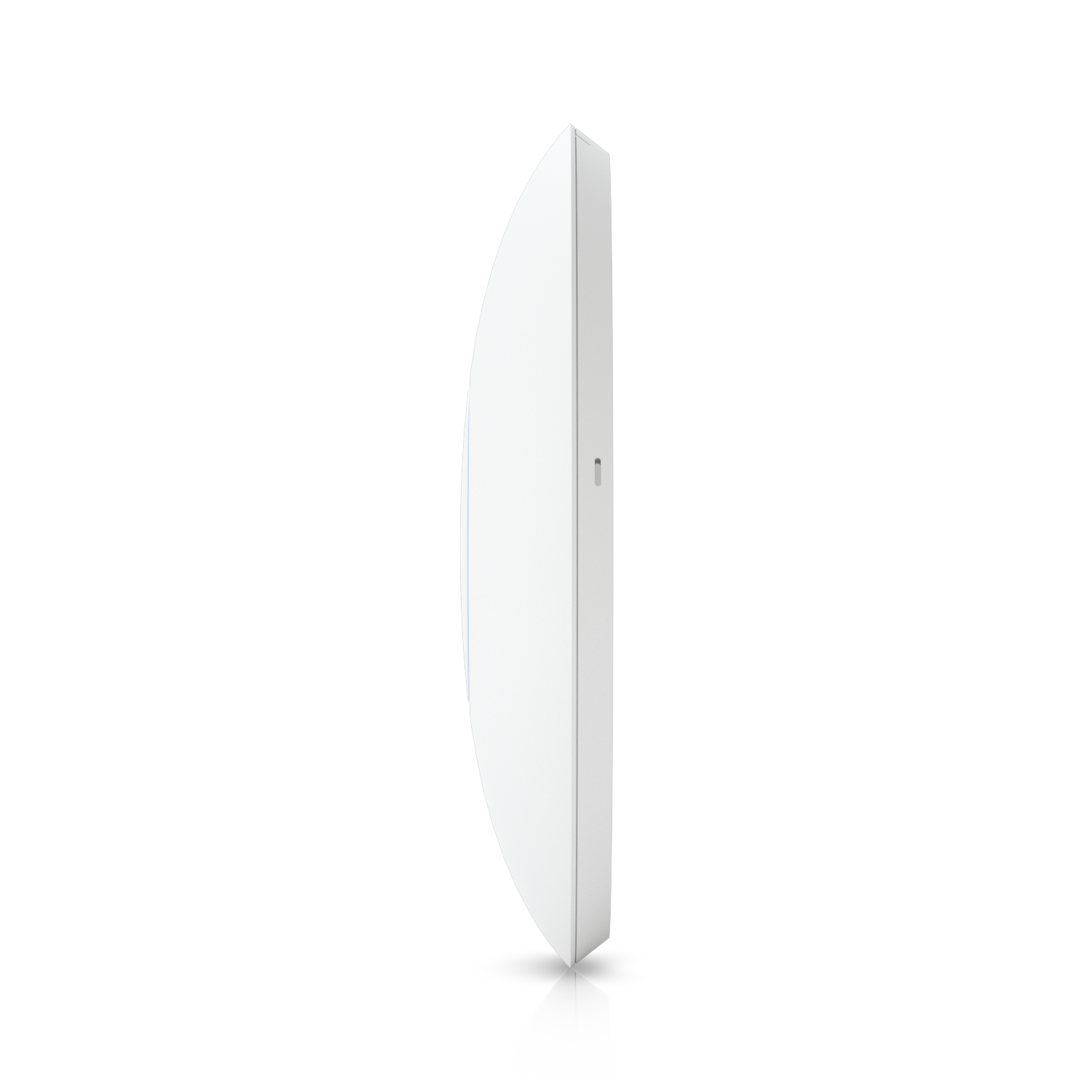

The UAP-AC-PRO is a cutting-edge version of Ubiquiti's revolutionary technology. This versatile access point delivers maximum capacity for wireless networks and features a waterproof casing, making it ideal for both indoor and outdoor use. Utilizing the 802.11ac technology and modern industry designs, the UAP-AC-PRO supports dual-band and 3×3 MIMO technology in the 5 GHz and 2.4 GHz bands. It is part of Ubiquiti's renowned UniFi product line and is known for its resistance to adverse weather conditions.
The UAP-AC-PRO is the fastest access point available from Ubiquiti, offering speeds of up to 450 Mbps on the 2.4 GHz band and 1000 Mbps on the 5 GHz band. It can be powered by a dedicated AC adapter or standard PoE switches, similar to other solutions in the UniFi series.
Key Features:
– Suitable for both indoor and outdoor environments
– High efficiency and intuitive use
– Incorporates 3×3 11AC MIMO technology
– Provides excellent scalability
The UAP-AC-PRO is perfect for various environments that require robust wireless networks, from small to large-scale setups. It ensures high-quality connections for multiple devices simultaneously and is easy to install in any setting.
Comparison:
– The UAP-AC-PRO offers a superior performance compared to other models like UAP-AC-LITE, UAP-AC-LR, and others with features such as simultaneous dual-band operation, greater range, and enhanced MIMO technology.
Specifications:
– Mechanical Dimensions: 196.7 x 35 mm (7.7 x 1.4 inches)
– Weight without mount: 350 g (12.4 oz), with mount: 450 g (15.9 oz)
– Networking Interface: Two GbE RJ45 ports
– PoE Power Supply: 48V, 0.5A PoE adapter included. Five-packs do not include PoE adapters.
– Maximum Power Consumption: 9W
– Operating Temperature: -10 to 70°C (14 to 158°F)
– Certifications: CE, FCC, IC
Software:
– Supports a variety of WiFi standards including 802.11 a/b/g/n/ac
– Offers robust wireless security protocols such as WEP and WPA
– Allows for advanced QoS with per-user rate limiting
– Can accommodate over 250 concurrent clients
The UAP-AC-PRO is your solution for ensuring seamless, high-quality wireless connectivity across different environments.
| Mechanical | |
|---|---|
| Dimensions | Ø196.7 x 35 mm (Ø7.7 x 1.4") |
| Weight | Without mount: 350 g (12.4 oz) With mount: 450 g (15.9 oz) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Management interface | Ethernet |
| Power method | PoE Passive PoE, 48V |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Included)* *5-packs do not come with PoE adapters. |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 9W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 22 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz |
3 x 3 3 x 3 – |
| Throughput rate 2.4 GHz 5 GHz 6 GHz |
450 Mbps 1300 Mbps – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
3 dBi 3 dBi – |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -10 to 70° C (14 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11 a/b/g/n/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 4 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80) |
