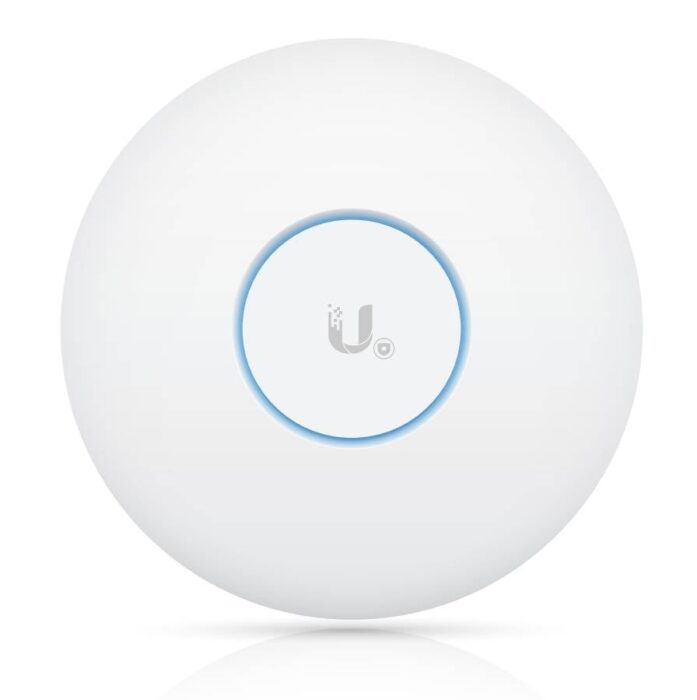

UniFi AC SHD – safety combined with performance
The UAP-AC-SHD by Ubiquiti is the first 802.11ac Wave 2 access point with enhanced protection. With RF monitoring, it is an ideal solution for hospitals, banks, universities, and other facilities that handle confidential information.
Ultramodern solutions
The airView tool analyzes all available RF channels without affecting its performance or customer activity. AirTime analyzes Wi-Fi packets to create a real-time visualization, enabling the UniFi AC SHD AP to automatically select the best channel for optimal performance across the entire installation.
Technology
The UniFi AC SHD AP functions as a Wireless Intrusion Prevention System (WIPS) and Wireless Intrusion Detection System (WIDS). Its MU-MIMO 802.11ac Wave 2 technology allows it to communicate with multiple clients simultaneously, significantly enhancing user bandwidth and the overall quality of service.
UniFi
UniFi is a scalable, comprehensive system of devices deployed in many locations around the world, all controlled by a single interface accessible via the Internet or local network.
Comparison
UAP‑AC‑PRO, UAP‑AC‑HD, UAP‑AC‑SHD
Dimensions:
– UAP‑AC‑PRO: Ø196.7 x 35 mm
– UAP‑AC‑HD: Ø220 x 48.1 mm
– UAP‑AC‑SHD: Ø220 x 48.1 mm
Environment: Indoor/Outdoor for all models
2.4 GHz Radio Rate:
– UAP‑AC‑PRO: 450 Mbps
– UAP‑AC‑HD: 800 Mbps
– UAP‑AC‑SHD: 800 Mbps
5 GHz Radio Rate:
– UAP‑AC‑PRO: 1300 Mbps
– UAP‑AC‑HD: 1733 Mbps
– UAP‑AC‑SHD: 1733 Mbps
PoE Mode:
– UAP‑AC‑PRO: 802.3af PoE/802.3at PoE+
– UAP‑AC‑HD and UAP‑AC‑SHD: 802.3at PoE+
Ports: (2) 10/100/1000 Ethernet for all models
Wi‑Fi Users:
– UAP‑AC‑PRO: 200 Users
– UAP‑AC‑HD and UAP‑AC‑SHD: 500+ Users
airTime:
– UAP‑AC‑SHD: Available
– UAP‑AC‑PRO and UAP‑AC‑HD: Not available
airView:
– UAP‑AC‑SHD: Available
– UAP‑AC‑PRO and UAP‑AC‑HD: Not available
WIPS:
– UAP‑AC‑SHD: Available
– UAP‑AC‑PRO and UAP‑AC‑HD: Not available
Manufacturer's content:
– Read more in the manufacturer's documentation
– Read the manual
| Mechanical | |
|---|---|
| Dimensions | Ø220 x 48.1 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 700 g (1.5 lb) With mount: 830 g (1.8 lb) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | PoE+ |
| Power supply | UniFi PoE Switch* *5-packs do not come with PoE adapters. |
| Supported voltage range | 44—57 VDC |
| Max. power consumption | 20W |
| Max. TX power 2.4 GHz 5 GHz |
25 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
| Max. data rate 2.4 GHz 5 GHz |
800 Mbps 1.7 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
6 dBi 6 dBi |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Ambient operating temperature | -10 to 70° C (14 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, cULus |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ac-Wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w (PMF) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Power save | Supported |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 1000+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) |
