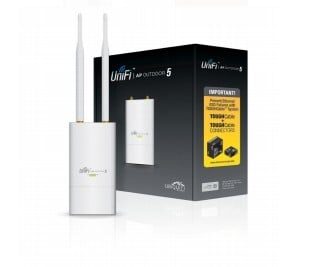

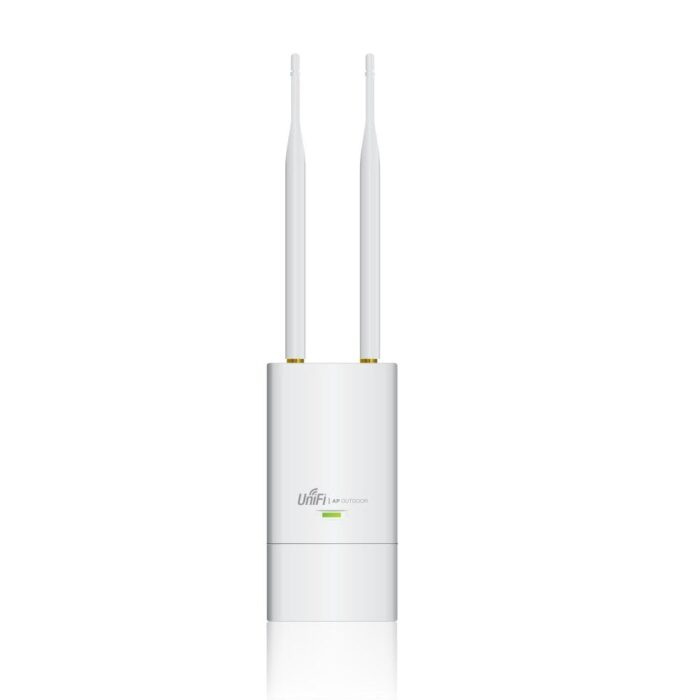

Ubiquiti Networks UAP-Outdoor5 300 Mbit/s White Power over Ethernet PoE

The Ubiquiti UAP-Outdoor5 is an ideal solution for outdoor use, operating in the 5 GHz band with a wireless range of up to 183 meters. It stands out for its sleek design and durability against harsh weather conditions like wind, rain, and snow.

This Ubiquiti access point is known for its robust construction, withstanding temperatures from -30 to 75 degrees Celsius. It is a versatile and scalable solution, performing exceptionally well in environments with high network density.

With superior performance, it offers data transfer speeds of up to 300 Mbit/s and has an emitter power of 27 dBm. The device supports VLAN, QoS, and communication standards such as IEEE 802.11a and IEEE 802.11n. It is powered by PoE technology, ensuring a maximum range of 183 meters. Its quality is assured with certifications from CE, FCC, and IC.

The UAP-Outdoor5 features two Ethernet LAN (RJ-45) ports and offers security through WEP, WPA-PSK, WPA2-AES, and WPA2-TKIP encryption standards. It is equipped with an omni-directional antenna that provides a maximum gain of 6 dBi.

Key Features:

– RF filtering
– Long range
– Scalability
– Wide range of antenna applications
– No software fees
– Minimalist design
– Durable construction, resistant to wind, rain, and snow

This device functions effectively in complex and high-density environments by minimizing interference from other channels. It is designed for use in public areas, conference centers, and campuses.

Explore further information from the manufacturer's documentation and user manual for more details and specifications.

Features

5 GHz
Yes
show more


Maximum data transfer rate
Maximum data transfer rate
300 Mbit/s
show more


Wi-Fi data rate (max)
300 Mbit/s
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


Frequency band
Frequency band
5 GHz
show more


Networking standards
Networking standards
IEEE 802.11a, IEEE 802.11n
show more


Number of users
Number of users
100 user(s)
show more


VLAN support
VLAN support
Yes
show more


Rate limiting
Yes
show more


Quality of Service (QoS) support
Yes
show more


Maximum outdoor range
Maximum outdoor range
183 m
show more


Transmitting power
27 dBmW
show more

Security

Security algorithms
Security algorithms
WEP, WPA-PSK, WPA2-AES, WPA2-TKIP
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more

Power

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


AC input voltage
AC input voltage
47 V
show more


Input current
0.5 A
show more


Power consumption (max)
Power consumption (max)
6.5 W
show more

Design

Product colour
Product colour
White
show more


Reset button
Yes
show more


Internal
Internal
No
show more

Antenna

Antenna direction type
Omni-directional
show more


Antennas quantity
2
show more


Antenna gain level (max)
Antenna gain level (max)
6 dBi
show more

Certificates

Certification
CE, FCC, IC
show more

Weight & dimensions

Width
Width
80 mm
show more


Depth
Depth
30 mm
show more


Height
Height
170 mm
show more


Weight
Weight
230 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Operating temperature (T-T)
Operating temperature (T-T)
-30 – 75 °C
show more
