Ubiquiti Dream features an RJ-45 WAN connection type and offers dual-band Wi-Fi covering both 2.4 GHz and 5 GHz frequencies. It supports the advanced Wi-Fi 6 standard (802.11ax), achieving a maximum WLAN data transfer rate of 2400 Mbit/s. The device includes a Gigabit Ethernet LAN interface with cabling technology that supports 10/100/1000Base-T(X). It adheres to networking standards such as IEEE 802.1Q and IEEE 802.3af. The Ubiquiti Dream is compatible with MicroSD memory cards (TransFlash) and incorporates robust security algorithms including WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, and WPA3 to ensure safe and secure connections.
| Mechanical | |
|---|---|
| Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
| Weight | 1.2 kg (2.5 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Dual-core Arm® Cortex® A53 at 1.35 GHz |
| System memory | 2 GB |
| Expansion slot | Micro SD memory card* *Requires a memory card with at least 128 GB of storage. |
| Management interface | Ethernet Bluetooth |

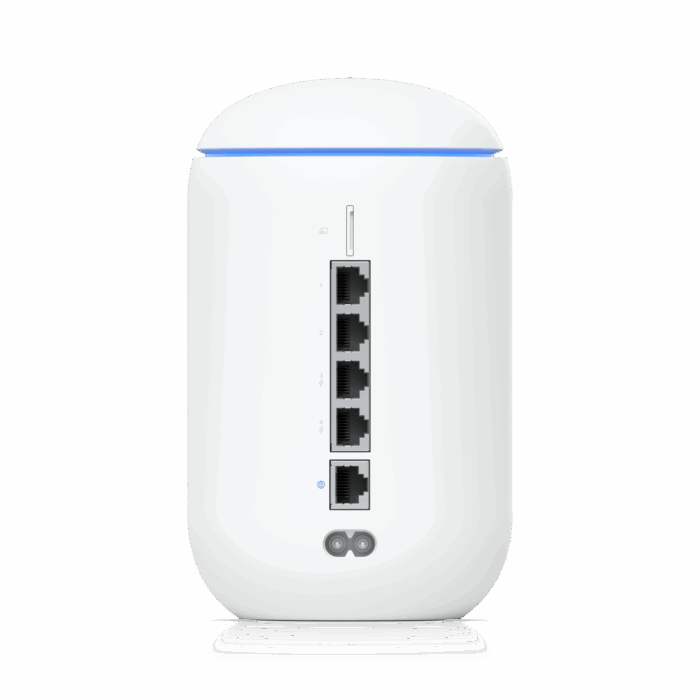

| Networking interface | LAN: (4) GbE RJ45 ports WAN: |
| PoE interface | (2) PoE (Pair B 4, 5+; 7, 😎 |
| Power method | Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 50W |
| Supported voltage range | 100—240V DC |
| Max. power consumption | 19.37W (Excluding PoE output) |
| PoE budget | 40W |
| Max. PoE wattage per port by PSE | 15.4W |
| Voltage range PoE mode | 44—57V DC |
| Max. TX power 2.4 GHz 5 GHz |
26 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz |
600 Mbps 2.4 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
3.4 dBi 4.3 dBi |
| Antenna | (1) Internal, dual-band, quad-polarity antenna |
| LCM display | (1) 0.96" screen |
| Button | Factory reset |
| LEDs | White/blue |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance |
WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
