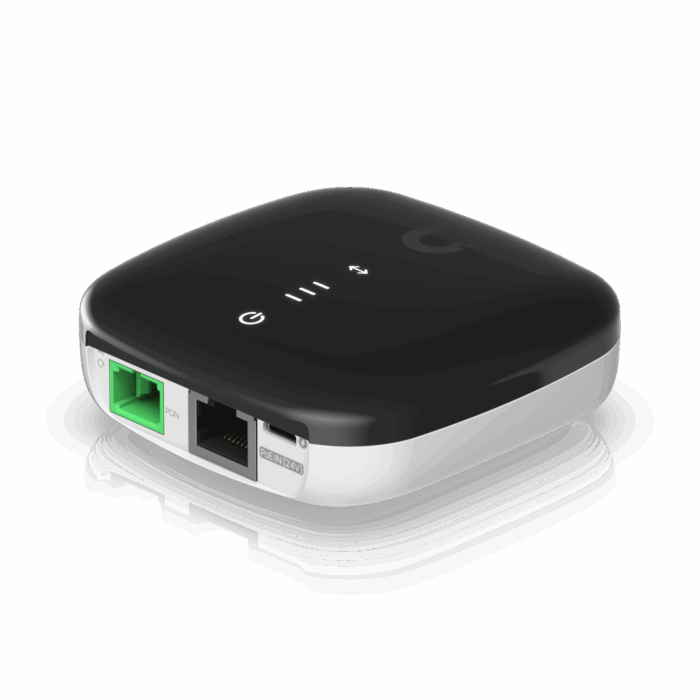

The Ubiquiti UFiber Loco is a compact and efficient network device designed in shades of black and grey. It includes LED indicators to signify power status. The unit is equipped with a processor running at a frequency of 240 MHz, ensuring smooth performance. It supports Ethernet LAN data rates of 10, 100, and 1000 Mbit/s, facilitating flexible network connectivity. The device boasts a substantial data transfer rate of 2.488 Gbit/s, making it suitable for high-speed data transmission. The typical power consumption of the UFiber Loco is 3.5 watts, with an input voltage requirement of 24 volts and an input current of 1 ampere. Its compact size is reflected in its dimensions, with a width and depth of 76.5 mm each, and a height of 26.4 mm.
| Mechanical | |
|---|---|
| Dimensions | 76.5 x 76.5 x 26.4 mm (3 x 3 x 1") |
| Weight | 77 g (2.7 oz) |
| Enclosure materil | Polycarbonate |
| Hardware | |

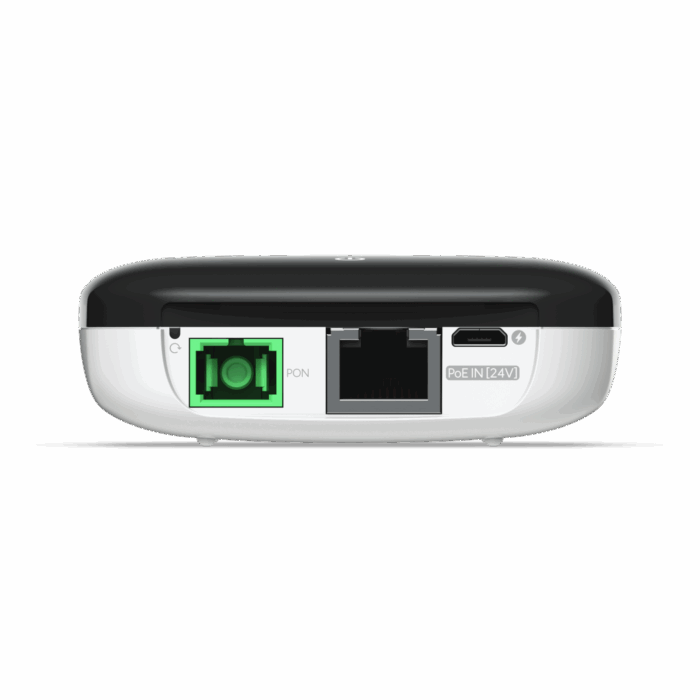

| Networking interface | (1) SC/APC, ITU-G.984 GPON WAN port (1) GbE RJ45 LAN ports |
| Management interface | Ethernet In-Band PON |
| Power method | Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8) |
| Power supply | Micro-USB Power Adapter* *Included only in the single-pack of the UF-LOCO. |
| Supported voltage range | 4.7–5.3V |
| Max. power consumption | 3.5W |
| Total non-blocking line rate Downstream Upstream |
2.488 Gbps 1.244 Gbps |
| Normal range of optical module TX RX |
1.5 to 5 dBm -8 to -28 dBm |
| Button | (1) Factory reset |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |

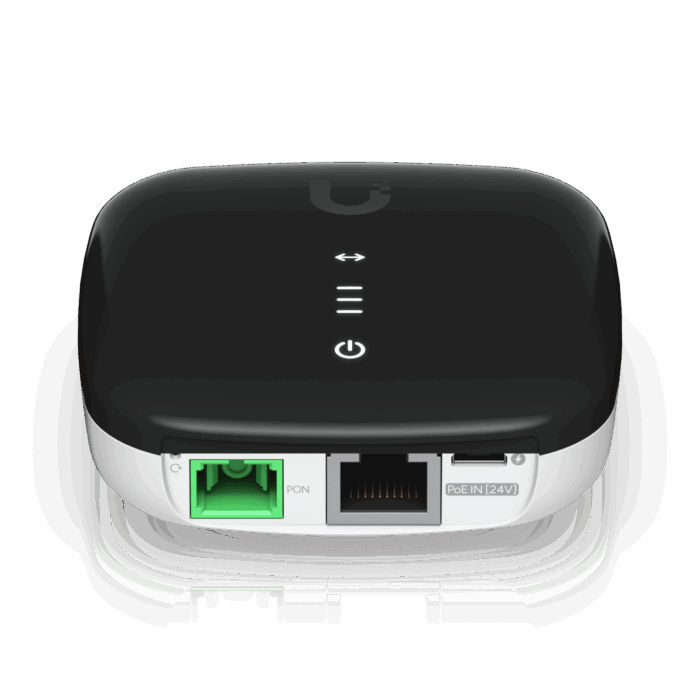

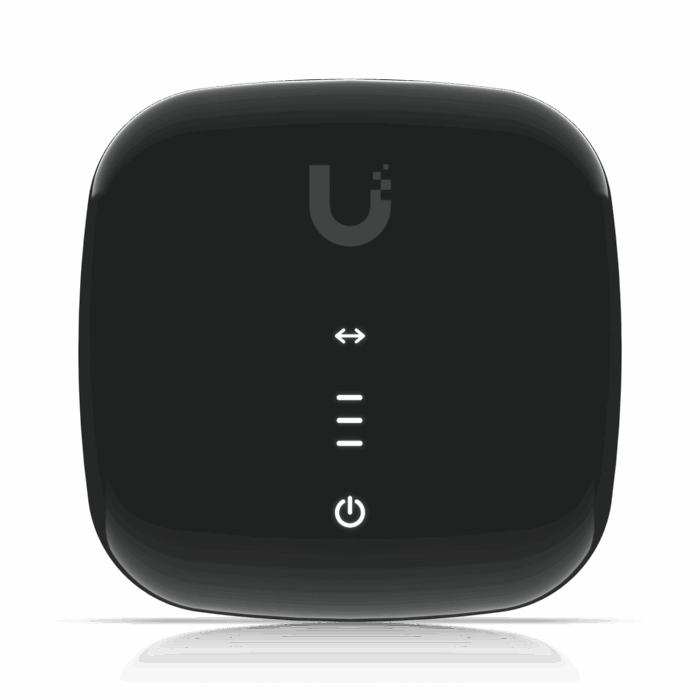

| LEDs | |
| PON status | (3) signal LEDs All-OFF: bootup 1x red: signal too low (< -28 db) 1x white: signal low (>= -28 db) 2x white: signal good (>= -25 db) 3x white: signal strong (>= -11 db) 1x red + 2x white: signal too strong (>= -8 db) 3x red: no signal LEDs alternate between red and a signal strength indicator: No authority |
| Ethernet | Steady white: link up Blinking white: activity OFF: link down |
| Power | White: ON |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti specific features | UISP Mobile App |
| Fiber | |
| Operating wavelength TX RX |
1310 nm 1490 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate Downstream Upstream |
2488.32 Mbit/s 1244.16 Mbit/s |
| Physical reach | 20 km |
