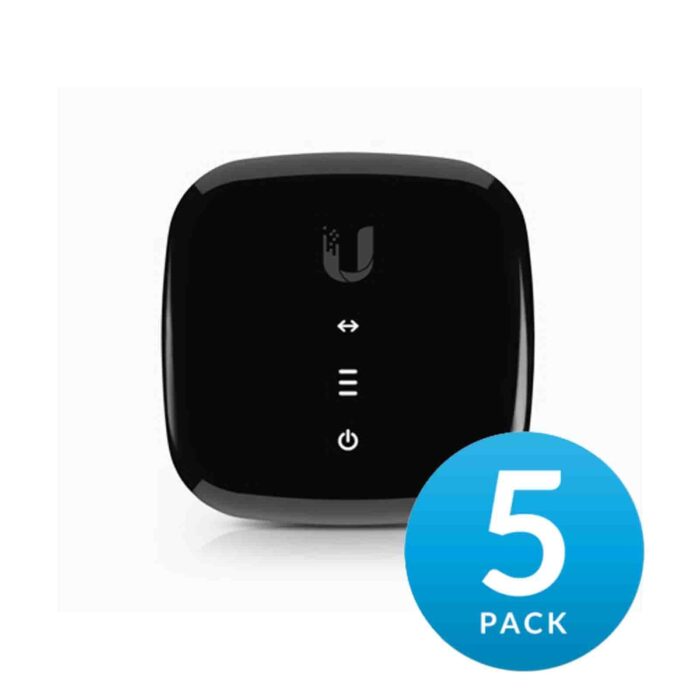

The Ubiquiti UFiber Loco is a device featuring a sleek black and grey design. It includes LED indicators for power status. The processor operates at a frequency of 240 MHz. It supports Ethernet LAN data rates of 10, 100, and 1000 Mbit/s with a maximum data transfer rate of 2.488 Gbit/s. The typical power consumption is 3.5 W. The device requires an input voltage of 24 V and an input current of 1 A. Its dimensions are 76.5 mm in width, 76.5 mm in depth, and 26.4 mm in height.
| Hardware |
| Networking interface | (1) SC/APC, ITU-G.984 GPON WAN port, (1) GbE RJ45 LAN ports |
| Management interface | Ethernet In-Band, PON |
| Power method | Micro-USB: 5V, 1A, 24V Passive PoE (Pins +4, 5; -7, 8) |
| Power supply | Micro-USB Power Adapter* (*Included only in the single-pack of the UF-LOCO.) |
| Supported voltage range | 4.7 – 5.3V |
| Max. power consumption | 3.5W |
| Total non-blocking line rate, Downstream, Upstream | 2.488 Gbps, 1.244 Gbps |
| Normal range of optical module, TX , RX | 1.5 to 5 dBm, -8 to -28 dBm |
| Button | (1) Factory reset |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs |
| PON status | (3) signal LEDs, All-OFF: bootup, 1x red: signal too low (< -28 db), 1x white: signal low (>= -28 db), 2x white: signal good (>= -25 db), 3x white: signal strong (>= -11 db), 1x red + 2x white: signal too strong (>= -8 db), 3x red: no signal, LEDs alternate between red and a signal strength indicator: No authority |
| Ethernet | Steady white: link up, Blinking white: activity, OFF: link down |
| Power | White: ON |
| Software |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti specific features | UISP Mobile App |
| Fiber |
| Operating wavelength, TX, RX | 1310 nm , 1490 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate, Downstream, Upstream | 2488.32 Mbit/s, 1244.16 Mbit/s |
| Physical reach | 20 km |
