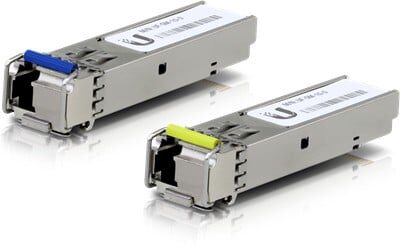

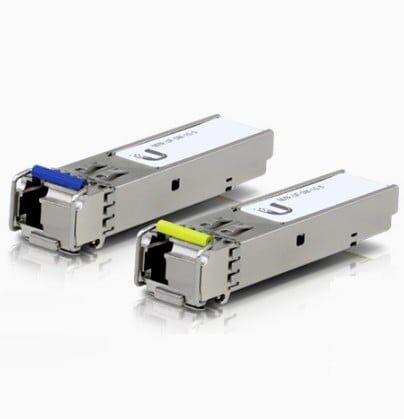

Ubiquiti Networks UF-SM-1G-S-20 Fiber Optic 1250 Mbit/s SFP LC 3000 m 1550 nm

The UF-SM-1G-S-20 by Ubiquiti is designed for optimal use of your infrastructure with U Fiber technology. Ubiquiti provides a diverse selection of module models, and the UF-SM-1G-S-20 set includes 20 items that can enhance the capabilities of your infrastructure. The UF-SM-1G-S model is particularly suited for long-distance applications, making it ideal for infrastructure expansion and the development of new structures.

These modules come in both single-mode and multi-mode versions. Below is a comparison of various models and their features:

1. UF-MM-1G
2. UF-MM-10G
3. UF-SM-1G-S
4. UF-SM-10G
5. UF-SM-10G-S

Supported Media:
– Multi-Mode Fiber: UF-MM-1G and UF-MM-10G
– Single-Mode Fiber: UF-SM-1G-S, UF-SM-10G, UF-SM-10G-S

Connector Type:
– (2) LC: UF-MM-1G, UF-MM-10G, UF-SM-10G
– (1) LC: UF-SM-1G-S, UF-SM-10G-S

BiDi (Bidirectional):
– Supported: UF-SM-1G-S, UF-SM-10G-S

Transmission (TX) Wavelength:
– UF-SM-1G-S: 1310 nm (Blue), 1550 nm (Yellow)
– UF-SM-10G-S: 1270 nm (Blue), 1330 nm (Red)

Reception (RX) Wavelength:
– UF-SM-1G-S: 1550 nm (Blue), 1310 nm (Yellow)
– UF-SM-10G-S: 1330 nm (Blue), 1270 nm (Red)

Data Rate:
– 1.25 Gbps SFP: UF-MM-1G, UF-SM-1G-S
– 10 Gbps SFP+: UF-MM-10G, UF-SM-10G, UF-SM-10G-S

Cable Distance:
– UF-MM-1G: 550 meters
– UF-MM-10G: 300 meters
– UF-SM-1G-S: 3 kilometers
– UF-SM-10G, UF-SM-10G-S: 10 kilometers

Packaging Options:
– UF-MM-1G and UF-MM-10G: Available in 2-Pack and 20-Pack
– UF-SM-1G-S and UF-SM-10G-S: Available in 1-Pair and 10-Pairs

For further details, please refer to the manufacturer's documentation.
