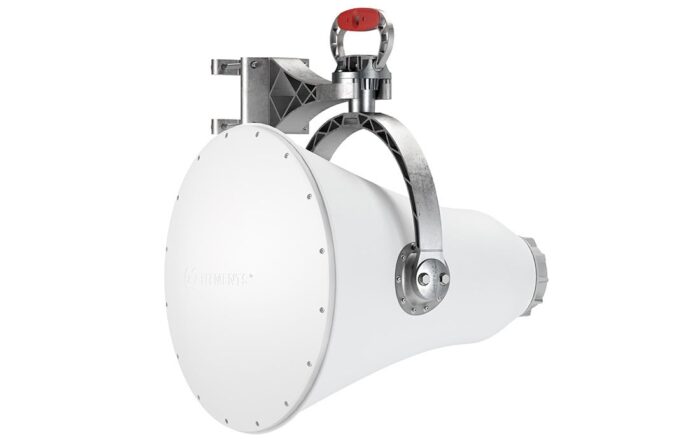

RF Elements UltraHorn TP 5-24 Network Antenna Horn Antenna

The RF Elements UltraHorn TP 5-24 features a gain of 24 dBi, with both horizontal and vertical beam widths at 11° for 2.4 GHz. This horn antenna is designed with an International Protection code of IP55, ensuring durability in various environmental conditions. It can withstand a survival wind speed of up to 160 km/h. The antenna's dimensions are 550 mm in width, 666 mm in depth, and 550 mm in height. The total package weight is 9.2 kg, and it comes with one piece per pack.

Performance

Gain
24 dBi
show more


Vertical beam width (2.4 GHz)
11°
show more


Horizontal beam width (2.4 GHz)
11°
show more

Features

Antenna type
Antenna type
Horn antenna
show more


International Protection (IP) code
International Protection (IP) code
IP55
show more


Survival wind speed
160 km/h
show more


Mounting pipe
30 – 80 mm
show more


Downtilt
25°
show more


Front to back ratio
40 dB
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-30 – 55 °C
show more

Weight & dimensions

Width
Width
550 mm
show more


Depth
Depth
666 mm
show more


Height
Height
550 mm
show more


Weight
Weight
8.2 kg
show more

Packaging data

Package weight
Package weight
9.2 kg
show more

Packaging content

Quantity per pack
1 pc(s)
show more


Manual
Yes
show more
