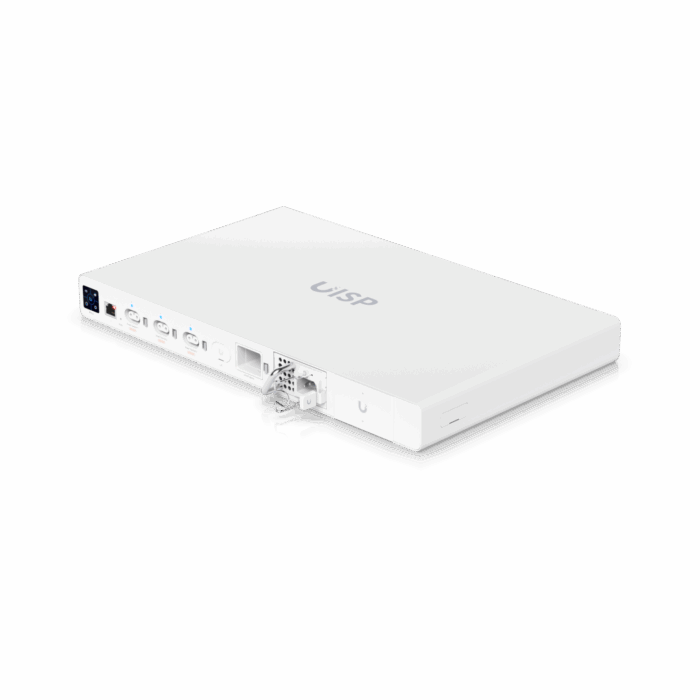

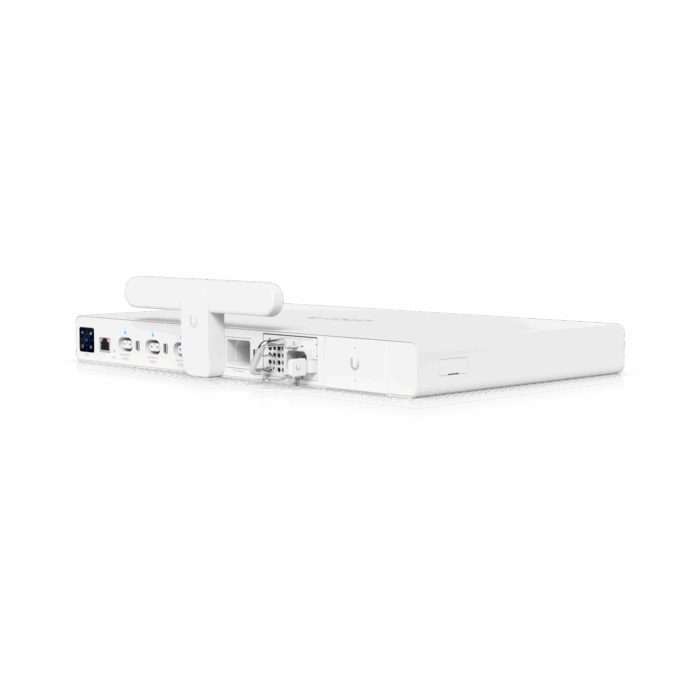

The Ubiquiti UISP-P-Pro is a powerful device with an output power of 480 W. It operates with an input voltage range from a minimum of 100 V to a maximum of 240 V. This product comes in a sleek white color and features a robust housing made from acrylonitrile butadiene styrene (ABS), polycarbonate (PC), and steel. The device is designed with a touch control type for ease of use. It meets compliance standards with CE and Federal Communications Commission (FCC) certifications. Its dimensions are 442.4 mm in width, 267.5 mm in depth, and 43.7 mm in height.
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7") |
| Weight | 4.16 kg (9.2 lb) |
| Enclosure materials | SGCC steel, polycarbonate/ABS |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 LAN port |
| Management interface | Ethernet In-Band Bluetooth |
| Power TransPort interface | (3) Power TransPort ports [up to 250W (27V DC) output each] Total output: 240W (27V DC) with 1 PSU / 480W (27V DC) with 2 PSUs |
| Primary power | (2) Universal AC inputs (100–240V AC, 3.5A Max., 50/60Hz) (1) PSU included (Additional modules sold separately.) |
| Backup power | (1) 24V DC, 20.83A lead-acid battery input* (Battery not included.) *Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Supported voltage range | 100 to 240V AC |
| Max. power consumption | 3W (Excludes Power TransPort output and battery charger.) |
| ESD/EMP protection | Air: ±15 kV / Contact: ± 8 kV |
| LCM display | 1.3" touchscreen |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, PTCRB, AT&T |
| LTE | |
| Antenna | External (included) |
| SIM | Nano-SIM |
| Category | Cat M1 |
| Bands | US/Canada: FDD-LTE Bands 2, 4, 12, 13 (AT&T Network-Ready) EU: FDD-LTE Bands 1, 3, 8, 20, 28 |
| Notification type | SMS (Requires a nano-SIM card from a Cat M1 SMS provider.) |
| Input rating | 5V DC, 0.5A |
| LEDs | |
| System | Status |
| RJ45 data ports | Link/activity |
| Power TransPort | On/Off |
| Compatibility | |
| Supported models | UISP Console UISP Router (installed with UISP Box) UISP Router Pro UISP Switch (installed with UISP Box) UISP Switch Pro |
| Software | |
| Management application | UISP: Version 1.4.8 and later |
