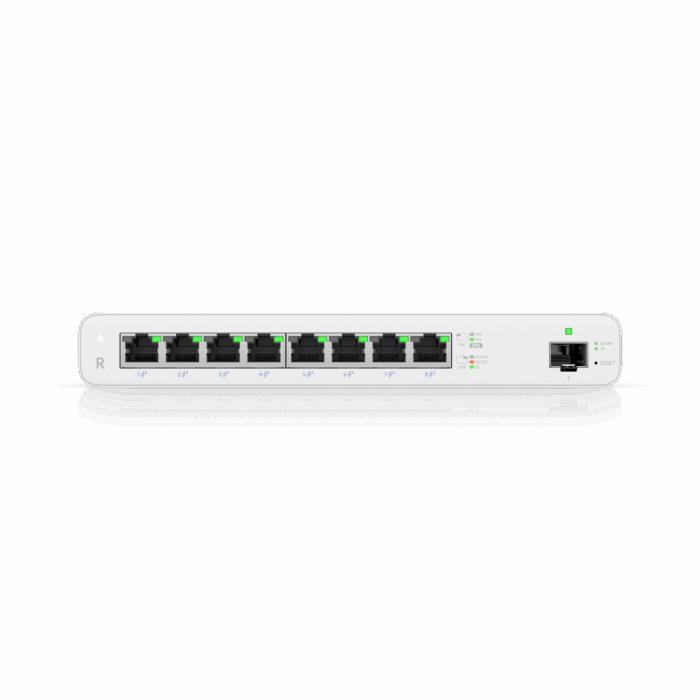

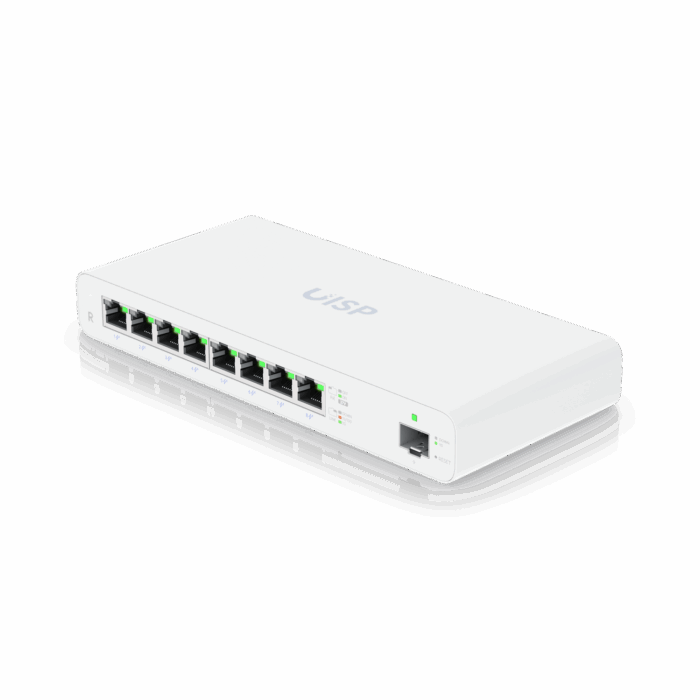

The Ubiquiti UISP Router features a Gigabit Ethernet interface and supports 10/100Base-T(X) cabling technology, ensuring reliable and fast network connections. It is powered by a MIPS 1004Kc processor with a frequency of 880 MHz. The router is equipped with 512 MB of flash memory, providing ample storage for your needs. It comes in a sleek white color and is fitted with LED indicators for activity, LAN, link, PoE, power, speed, WAN, and WLAN, making it easy to monitor device status. The router typically consumes 10 watts of power and can be powered via DC or PoE, with an output voltage range of 24 to 28 volts. Its dimensions are 210.4 mm in width, 95 mm in depth, and 29 mm in height, making it compact and easy to integrate into various environments.
| Mechanical | |
|---|---|
| Dimensions | 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1") |
| Weight | 600 g (1.3 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Dual-core 880 MHz, MIPS1004Kc |
| Memory | 512 MB DDR3 |
| Onboard flash storage | 512 MB NAND |
| Networking interface | (8) GbE RJ45 ports (1) 1G SFP port |
| Management interface | Ethernet In-Band Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power supply | 27V DC, 4.4A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 10W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 😎 or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 😎 |
| Max. Passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| System | Status |
| RJ45 data ports | PoE Speed/link/activity |
| SFP data port | Link/activity |
| Software | |
| Management application | UISP: Version 1.4.0 and later |
