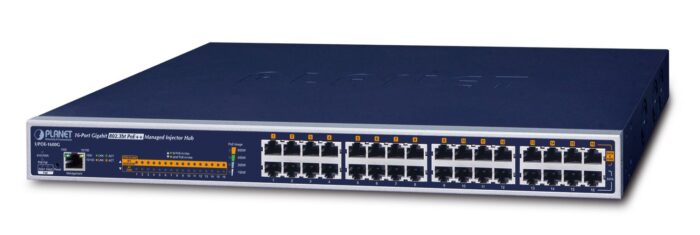

PLANET UPOE-1600G Network Switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue

The PLANET UPOE-1600G is a managed switch designed for efficient network management and connectivity. It features 32 basic RJ-45 Ethernet ports, all supporting Gigabit Ethernet speeds of 10/100/1000 Mbps. The switch complies with a variety of networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3u, ensuring compatibility with a range of network devices. Additionally, it provides Power over Ethernet (PoE) functionality, allowing power to be delivered through the Ethernet cables to connected devices. Designed for installation in a 1U rack mount form factor, this switch is an ideal solution for optimizing your network infrastructure.

Management features

Switch type
Switch type
Managed
show more


Web-based management
Web-based management
Yes
show more


System event log
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
32
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 1000BASE-T, 1000BASE-TX
show more


Cable types supported
Cat5, Cat5e, Cat6
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Broadcast storm control
Yes
show more

Security

DHCP features
DHCP client
show more


Security algorithms
Security algorithms
SNMP
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Blue
show more


Housing material
Housing material
Metal
show more


Reset button
Yes
show more


LED indicators
Yes
show more


Number of fans
Number of fans
3 fan(s)
show more


On/off switch
On/off switch
Yes
show more

Performance

Maximum cable length
100 m
show more


Firmware upgradeable
Yes
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Output current
8 A
show more


Power consumption (max)
Power consumption (max)
800 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
24
show more


Power over Ethernet plus (PoE+) ports quantity
24
show more


Power over Ethernet (PoE) power per port
15 W
show more


Total Power over Ethernet (PoE) budget
600 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
5 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
300 mm
show more


Height
Height
44.5 mm
show more


Weight
Weight
4.8 kg
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more


Rack mount kit
Yes
show more

Packaging data

Rubber feet
Yes
show more


AC adapter included
Yes
show more

Certificates

Certification
FCC Part 15 Class A, CE
show more

Logistics data

Harmonized System (HS) code
85176990
