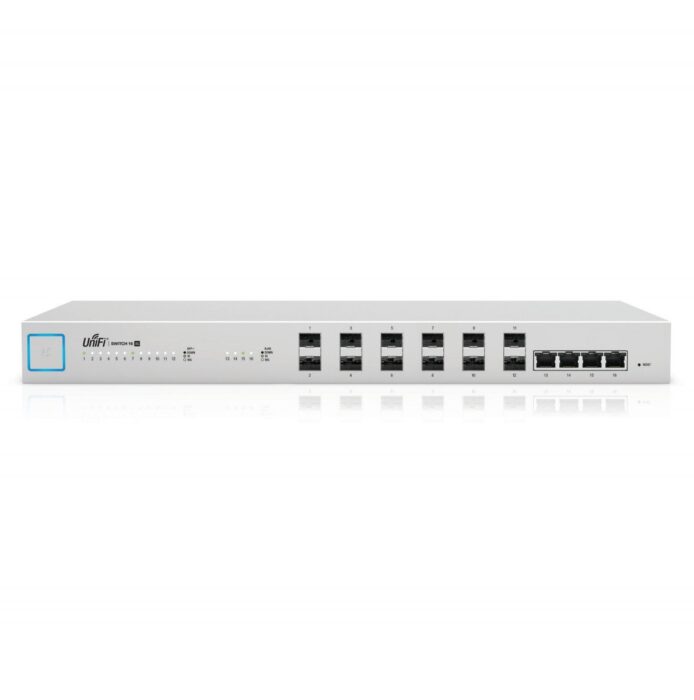

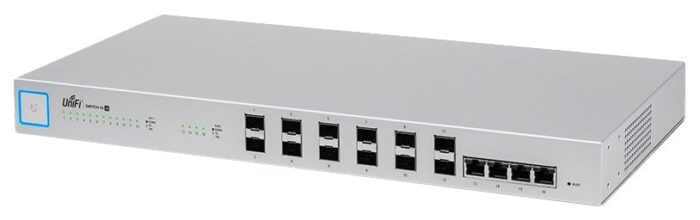

Ubiquiti Networks UniFi US-16-XG Network Switch Managed L2 10G Ethernet (100/1000/10000) 1U Grey

The US-16-XG switch from Ubiquiti's UniFi Enterprise System series is an excellent choice for establishing and expanding network capabilities. This fully manageable 16-port solution offers high bandwidth and superior performance by combining advanced technology with intuitive functionality.

Key Features:
– Twelve 1G / 10G SFP+ ports
– Four 1G / 10G RJ45 ports
– One console serial port RJ45
– Smooth switching at 160 Gbps
– Switching capacity of 320 Gbps
– Data transfer rate of 238.10 Mpps

Usage:
The US-16-XG is designed for enterprise-class environments. It is ideal for setting up networks with various UniFi switches, 1G / 10G by SFP+ routers, and compatible with VM, server, NAS, and other 1G / 10G RJ45 network devices.

High Quality:
This solution offers excellent value for money, being constructed from lightweight yet durable components, weighing in at under 3 kg. It is an attractive option for those seeking innovative and reliable network solutions. Additionally, the product assembly is straightforward, and it can operate independently or as part of a rack when brackets are installed.

Manufacturer's Content:
For further details, refer to the manufacturer's documentation and user manual.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
4
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


SFP+ module slots quantity
12
show more


Console port
RJ-45
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1x
show more


10G support
10G support
Yes
show more


Cable types supported
Cat6
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Spanning tree protocol
Yes
show more


Broadcast storm control
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
320 Gbit/s
show more


Forwarding rate
238.1 Mpps
show more


Jumbo frames support
Yes
show more

Security

Security algorithms
Security algorithms
802.1x RADIUS
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Grey
show more


Housing material
Housing material
Steel
show more


Reset button
Yes
show more


LED indicators
Yes
show more


Number of fans
Number of fans
2 fan(s)
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Input voltage
Input voltage
25 – 16 V
show more


Power consumption (typical)
Power consumption (typical)
36 W
show more


Power consumption (max)
Power consumption (max)
56 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 40 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
443 mm
show more


Depth
Depth
221 mm
show more


Height
Height
43 mm
show more


Weight
Weight
2.62 kg
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more

Packaging data

Screws included
Yes
show more


Package type
Package type
Box
show more


Mounting brackets included
Yes
show more

Certificates

Certification
CE, FCC, IC, ETSI300-019-1.4
show more

Logistics data

Harmonized System (HS) code
85176990
show more
