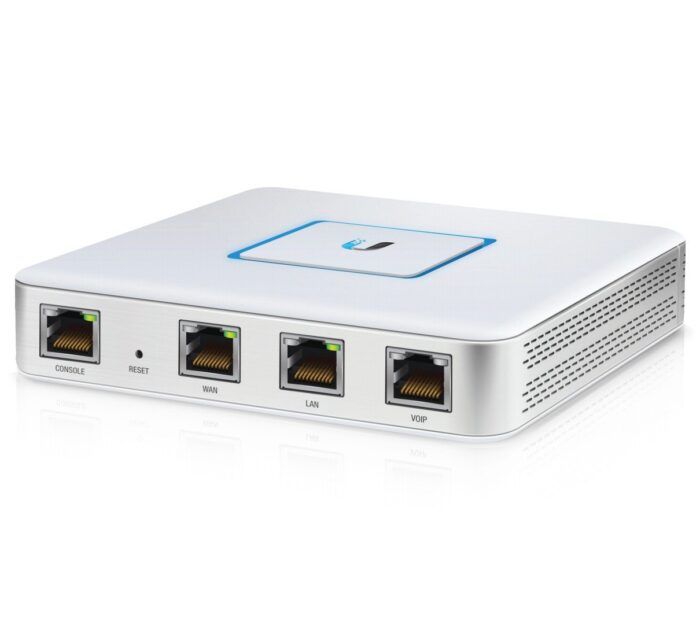

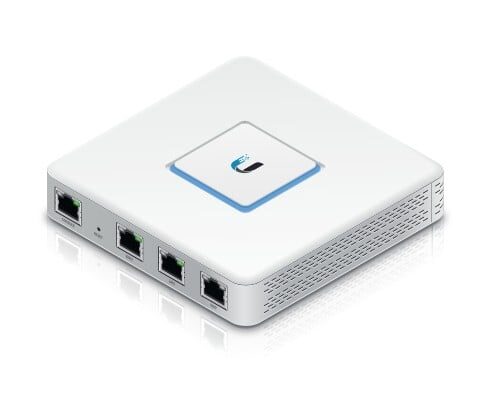

Ubiquiti Networks USG Gateway/Controller (USG)

The USG – UniFi Switching & Routing device is part of the Ubiquiti UniFi series and is designed for wall mounting. It offers both efficiency and reliability. This compact Ubiquiti UniFi Security Gateway device combines advanced security features with routing technologies to enhance the capabilities of the UniFi Enterprise system, providing cost-effective and reliable routing solutions.

The UniFi software is known for its easy configuration and intuitive use. The controller allows users to search for devices and manage other solutions through a central interface. It supports remote security management, command-line interface management, silent fan-less operation, and is compliant with UniFi Controller v4.x.

In terms of protection, the device boasts advanced firewall rules that ensure a high level of network and data security. The UniFi Security Gateway enables the creation of virtual network segments for managing web traffic, combining high efficiency with an affordable price.

Key features include:
– Efficiency
– Affordable price
– UniFi controller integration
– VLAN support
– QoS for Enterprise VoIP

The device facilitates traffic control and protection for UniFi access points, UniFi VoIP phones, and UVC surveillance from a single location. For a comprehensive understanding, users are encouraged to refer to the manufacturer's documentation and manual. Specifications are available for further technical details.

Design

LED indicators
Power
show more

Performance

Built-in processor
Built-in processor
MIPS64
show more


Processor frequency
Processor frequency
500 MHz
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more

Power

Power consumption (typical)
Power consumption (typical)
7 W
show more


Input voltage
Input voltage
9 – 24 V
show more


Input current
1 A
show more

Weight & dimensions

Weight
Weight
366 g
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
135 x 135 x 28.3 mm
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-10 – 45 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

System requirements

Minimum RAM
Minimum RAM
512 MB
show more

Technical details

Ringing voltage
12 V
show more

Certificates

Certification
CE, FCC, IC
show more

Logistics data

Harmonized System (HS) code
85176990
show more
