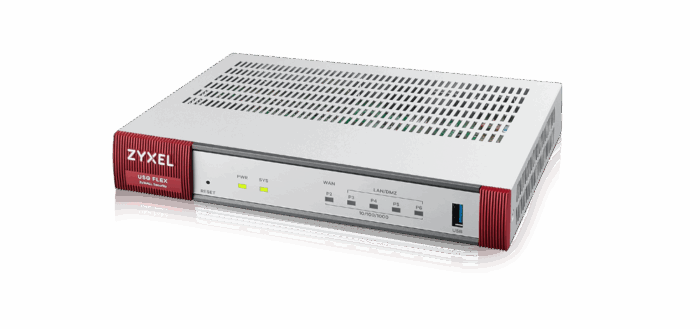

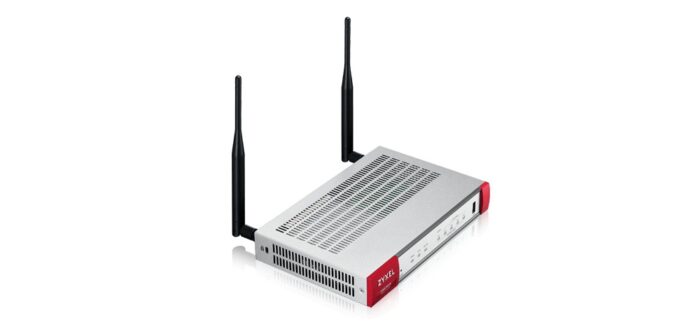

USG FLEX Series, 10/100/1000, 1 WAN, 4 LAN/DMZ ports, WiFi 6 AX1800, 1 USB (device only)

The Zyxel USG FLEX 100AX features a firewall throughput of 0.9 Gbit/s and a VPN throughput of 0.27 Gbit/s. It also offers IPS/IDS throughput of up to 540 Mbit/s. The device has a heat dissipation rate of 55.37 BTU/h. It comes with an external antenna design, providing a maximum antenna gain level of 3 dBi. This model supports a wide range of Wi-Fi standards, including 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), and Wi-Fi 6 (802.11ax), and operates on a dual-band spectrum (2.4 GHz / 5 GHz). For secure connections, it includes VPN support for protocols such as IKEv2, IPSec, SSL, and L2TP/IPSec. In terms of connectivity, the Zyxel USG FLEX 100AX utilizes wireless technology and features an Ethernet (RJ-45) WAN connection.

Data transmission

Firewall throughput
0.9 Gbit/s
show more


VPN throughput
0.27 Gbit/s
show more


IPS/IDS throughput
540 Mbit/s
show more

Performance

Heat dissipation
Heat dissipation
55.37 BTU/h
show more


Antenna design
External
show more


Detachable antenna(s)
Yes
show more


Antenna gain level (max)
Antenna gain level (max)
3 dBi
show more


Antennas quantity
2
show more

Network

Wi-Fi
Wi-Fi
Yes
show more


Wi-Fi standards
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
show more


Wi-Fi band
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
show more


Number of VLANs
8
show more

Security

VPN support
IKEv2, IPSec, SSL, L2TP/IPSec
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wireless
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more


WAN connection
WAN connection
Ethernet (RJ-45)
show more

Power

Input current
2.5 A
show more


DC input voltage
12 V
show more


Power consumption (max)
Power consumption (max)
24.3 W
show more

Certificates

Compliance certificates
BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
10 – 90%
show more

Weight & dimensions

Width
Width
216 mm
show more


Depth
Depth
149.3 mm
show more


Height
Height
33 mm
show more


Weight
Weight
1 kg
show more

Packaging data

Package width
Package width
284 mm
show more


Package height
Package height
190 mm
show more


Package depth
Package depth
100 mm
show more


Package weight
Package weight
1.53 kg
show more

Packaging content

Cables included
Power
show more

Other features

VPN throughput
270 Mbit/s
show more


Firewall throughput
Firewall throughput
900 Mbit/s
show more
