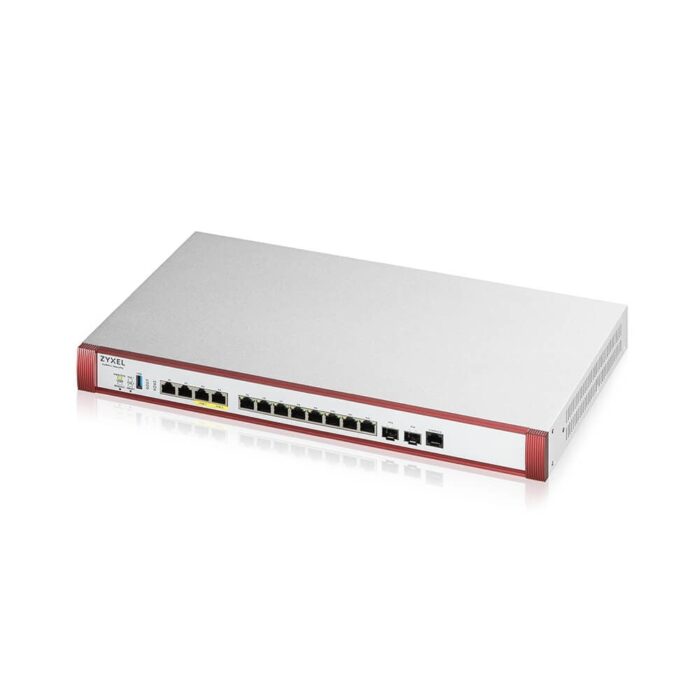

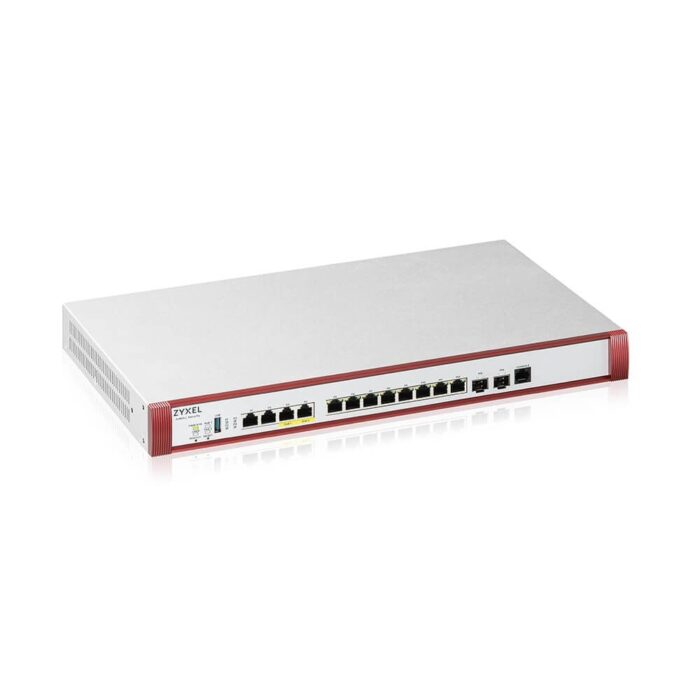

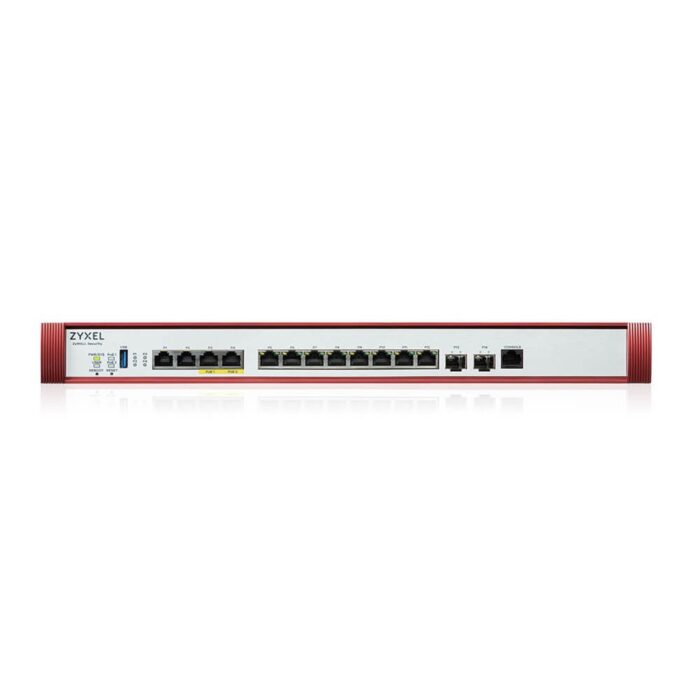

USG FLEX700 H Series, User-definable ports with 2×2.5G, 2x10G (PoE+) & 8x1G, 2xSFP+, 1xUSB (device only)

The Zyxel USG FLEX 700H is a high-performance firewall offering a firewall throughput rate of 15 Gbit/s and a VPN throughput of 3 Gbit/s. For intrusion prevention and detection, it provides an IPS/IDS throughput of 6300 Mbit/s. The device efficiently manages heat with a dissipation rate of 235 BTU/h. It supports various VPN protocols, including IKEv2, IPSec, and SSL, ensuring secure connectivity. The firewall employs wired connectivity technology and supports Ethernet LAN data rates of 10, 100, 1000, and 2500 Mbit/s. It features an RJ-45 console port for straightforward management. The device operates on an AC input voltage range of 100-240 V with an input frequency of 50/60 Hz and requires an input current of 2 A.

Data transmission

Firewall throughput
15 Gbit/s
show more


VPN throughput
3 Gbit/s
show more


IPS/IDS throughput
6300 Mbit/s
show more

Performance

Heat dissipation
Heat dissipation
235 BTU/h
show more

Network

Number of VLANs
128
show more

Security

VPN support
IKEv2, IPSec, SSL
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
12
show more


Console port
RJ-45
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
show more


SFP+ module slots quantity
2
show more

Design

Rack mounting
Rack mounting
Yes
show more

Power

AC input voltage
AC input voltage
100-240 V
show more


AC input frequency
50/60 Hz
show more


Input current
2 A
show more


Power consumption (max)
Power consumption (max)
86.7 W
show more

Certificates

Compliance certificates
BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-30 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
10 – 90%
show more

Weight & dimensions

Width
Width
430 mm
show more


Depth
Depth
250 mm
show more


Height
Height
43.5 mm
show more


Weight
Weight
3.14 kg
show more

Packaging data

Package width
Package width
512 mm
show more


Package height
Package height
395 mm
show more


Package depth
Package depth
162 mm
show more


Package weight
Package weight
4.9 kg
show more

Packaging content

Cables included
Power
show more

Other features

VPN throughput
3000 Mbit/s
show more


Firewall throughput
Firewall throughput
15000 Mbit/s
show more
