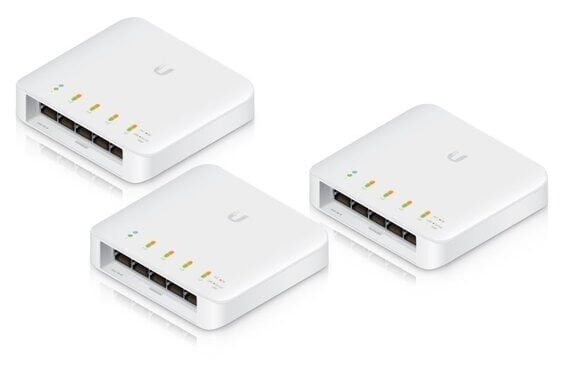

The Ubiquiti UniFi Switch Flex (3-pack) is a managed switch designed for efficient networking. It operates at Layer 2, providing enhanced network performance and management capabilities. Each switch comes equipped with five Gigabit Ethernet RJ-45 ports, supporting 10/100/1000 Mbps speeds for fast and reliable connectivity. The switches support full duplex communication, ensuring smooth data transmission. They are compliant with networking standards IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt, offering Power over Ethernet (PoE) to conveniently power connected devices. Additionally, these switches can be mounted on walls for flexible installation options.
| Mechanical | |
|---|---|
| Dimensions | 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1") |
| Weight | 230 g (8.1 oz) |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (5) GbE RJ45 ports |
| PoE interface | (4) PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 5 Gbps |
| Switching capacity | 10 Gbps |
| Power method | PoE++ |
| Power supply | PoE/PoE+ (Pins 1, 2+; 3, 6-) PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 😎 50V/60W PoE adapter (Not included) |
| Supported voltage range | PoE: 44—57V DC PoE+/PoE++: 50—57V DC |
| Max. power consumption | 5W (Excluding PoE output) |
| Total available PoE | 46W* *When powered with a PoE++ switch or a 60W PoE adapter (Sold separately). |
| Max. PoE wattage per port by PSE | 25W |
| ESD/EMP protection | Air/contact: ± 16kV |
| Button | Factory reset |
| Ambient operating temperature | 46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | Port isolation Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| PoE | Link/activity |
| Application Requirements | |
| UniFi Network | Version 5.10.3 and later |
