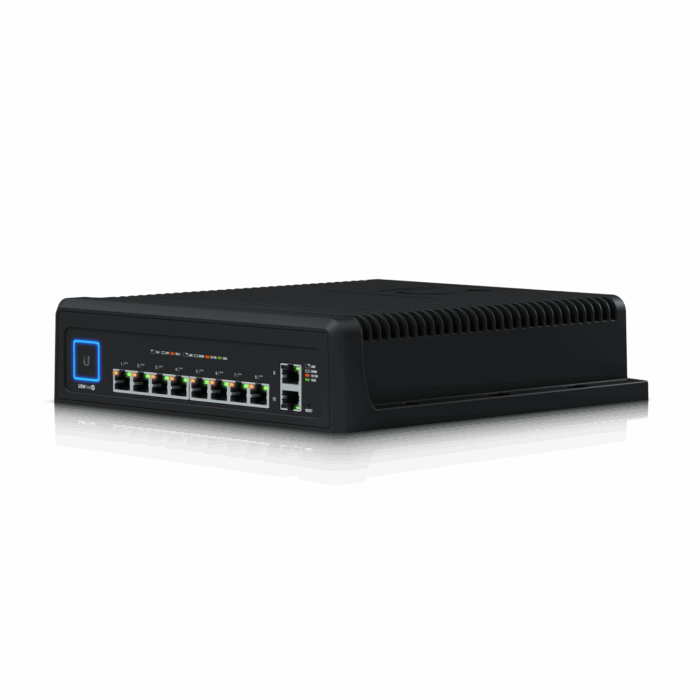

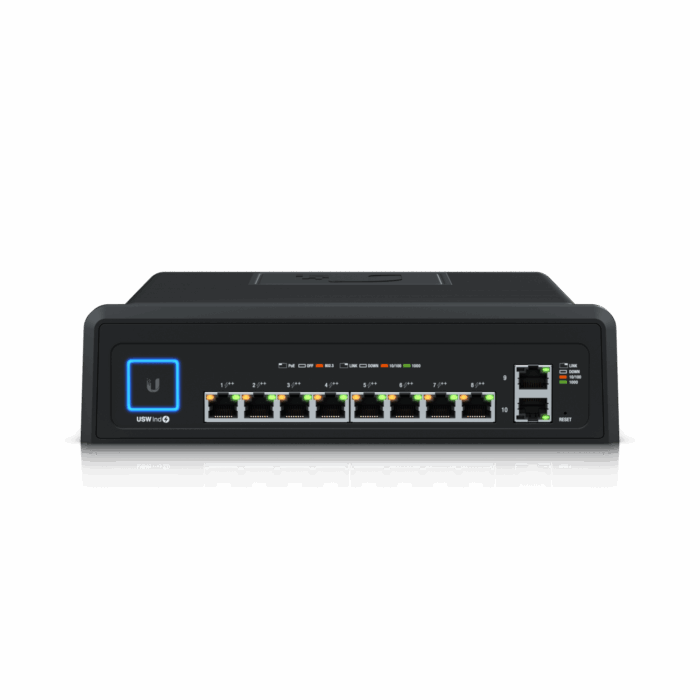

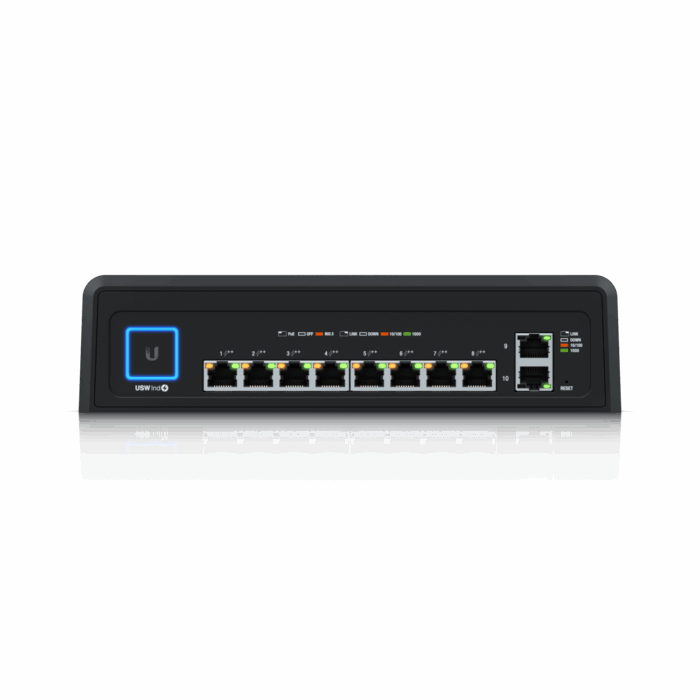

The Ubiquiti UniFi Industrial is a managed switch designed for industrial applications. It operates at Layer 2 and includes 10 Gigabit Ethernet RJ-45 ports, which support speeds of 10/100/1000 Mbps. Additionally, it features an RJ-45 console port for convenient connectivity and management. The switch boasts a switching capacity of 20 Gbit/s, ensuring robust and efficient data handling. Compliant with IEEE 802.3bt networking standards, it is equipped to support Power over Ethernet (PoE), and features an AC-in jack for power connectivity.
| Mechanical | |
|---|---|
| Dimensions | 254 x 235 x 60 mm (10 x 9.3 x 2.4") |
| Weight | 3.9 kg (8.5 lb) |
| Enclosure material | Die-cast aluminium with black powder coated finish |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (10) GbE RJ45 ports |
| PoE interface | (8) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎 |
| Total non-blocking throughput | 10 Gbps |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| Power method | Universal input, 100—240V AC, 6A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 450W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 20W (Excluding PoE output) |
| Total available PoE | 430W |
| Max. PoE wattage per port by PSE | PoE++: 60W |
| Voltage range PoE mode | PoE++: 50—57V |
| ESD/EMP protection | Air: ± 24kV, contact: ± 24kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature |
Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F) Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
