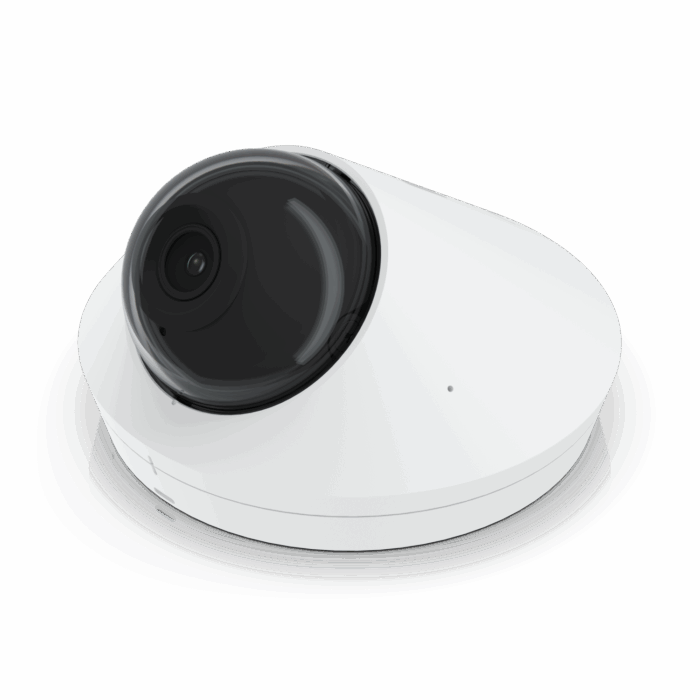

The UVC-G5-Dome is an advanced 2K HD PoE ceiling camera engineered to deliver outstanding performance in a range of settings. Featuring enhanced dynamic range and low-light capabilities, it provides clear and detailed images even in difficult lighting situations. Its compact design makes it ideal for both residential and commercial applications.
Produced by Ubiquiti Networks, this camera model offers a high resolution of 4MP, with 2688 x 1512 pixels, ensuring each captured frame is sharp and vivid. The integrated IR LED illumination and IR cut filter provide excellent night vision, offering a view angle of 102.4° horizontally and 54.9° vertically, ensuring comprehensive coverage.
The UVC-G5-Dome's durable construction, with an aluminum alloy and polycarbonate casing, is built to withstand diverse environmental conditions. It has an IPX4 rating for weather resistance and an IK08 rating for impact resistance, making it suitable for outdoor use. The camera can operate in temperatures ranging from -20 to 40ºC (-4 to 104ºF).
Powered by a robust dual-core Arm® Cortex®-A7 processor, the UVC-G5-Dome ensures smooth operation with a low power consumption of just 5W. It includes various connectivity options, featuring a 10/100 MbE RJ45 port and PoE support for straightforward installation. Compatible with UniFi Protect software, it offers an easy-to-use platform for managing and monitoring your surveillance needs.
| Mechanical | |
|---|---|
| Dimensions | Ø109.2 x 64.5 mm (Ø4.3 x 2.5") |
| Weight | Without mount: 370 g (13.1 oz) With mount: 390 g (13.8 oz) |
| Enclosure material | Aluminium alloy, polycarbonate, hard-coated dome |
| Mount material | Polycarbonate, stainless steel |
| Weatherproofing | IPX4 |
| Resistance | IK08 |
| Optics | |
| Sensor | 5MP CMOS |
| Lens | Fixed focal length |
| View angle | H: 102.4°, V: 54.9°, D: 120.6° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 5W |
| Power method | PoE |
| Supported voltage range | 37–57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Mounting | Wall, ceiling mount |
| Ambient operating temperature | -20 to 40º C (-4 to 104º F) |
| Ambient operating humidity | 0 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | Yes |
| Software | |
| Web application | UniFi Protect: Version 2.2.7 or 2.7.28 and later |
| Mobile app | UniFi Protect iOS™ and Android™: Version 1.10.0 and later |
