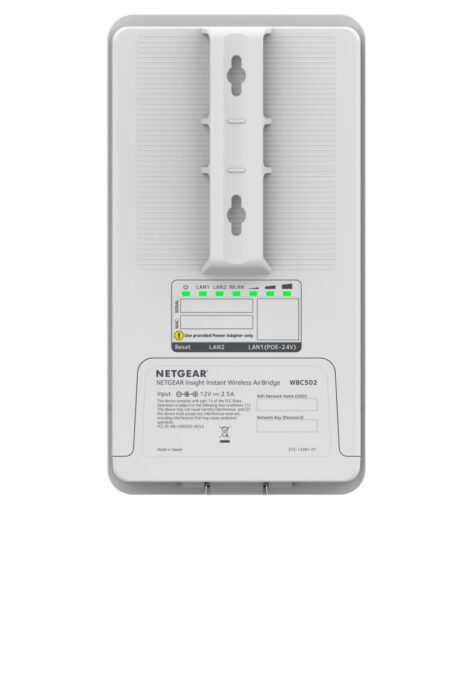

NETGEAR WBC502 1000 Mbit/s Power over Ethernet PoE

⁦NETGEAR WBC502 1000 Mbit/s Power over Ethernet PoE⁩ – תמונה ⁦2⁩

NETGEAR WBC502 1000 Mbit/s Power over Ethernet PoE

Name: NETGEAR WBC502 1000 Mbit/s Power over Ethernet PoE - Tact Technologies Solutions | טאקט | ציוד IT ותקשורות, ציוד תואם OEM ורכיבים אלקטרוניים.
Brand: OWC
Availability: InStock

The NETGEAR WBC502 is a wireless bridge that operates on both 2.4 GHz and 5 GHz frequencies, offering a maximum data transfer rate of 1000 Mbit/s. It supports a range of security algorithms including EAP-TLS, PEAP, SNMP, SSH, SSID, SSL/TLS, TTLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, and WPA2-PSK, ensuring secure connectivity. The device supports Ethernet LAN data rates of 10, 100, and 1000 Mbit/s and is equipped with Power over Ethernet (PoE) capability, allowing for flexible and convenient installation.

Features

2.4 GHz

Yes

5 GHz

Yes

Maximum data transfer rate

1000 Mbit/s

Maximum data transfer rate (2.4 GHz)

11 Mbit/s

Maximum data transfer rate (5 GHz)

54 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Channel bandwidth

5850 MHz

Auto MDI/MDI-X

Yes

MIMO

Yes

MIMO type

Multi User MIMO

Modulation

256-QAM

Fit AP mode features

802.11k & 802.11v smart roaming, Wireless distribution system (WDS)

Wi-Fi Multimedia (WMM)/(WME)

Yes

Wi-Fi roaming

Yes

WLAN channel features

WLAN channel management

VLAN support

Yes

Adaptive bandwidth management

Yes

Band steering

Yes

Airtime Fairness (ATF)

Yes

Security

Security algorithms

EAP-TLS, PEAP, SNMP, SSH, SSID, SSL/TLS, TTLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-PSK

MAC address filtering

Yes

Service Set Identifier (SSID) features

SSID broadcast on/off

Auto Wireless Distribution System (WDS)

Yes

Remote Authentication Dial-In User Service (RADIUS)

Yes

Access Control List (ACL)

Yes

Management features

Web-based management

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

DC-in jack

Yes

Power

Power over Ethernet (PoE)

Yes

Power consumption (typical)

8.93 W

Design

International Protection (IP) code

IP55

LED indicators

Status, System

Antenna

Antenna type

Internal

Antenna features

Integrated antenna

Antenna gain level (max)

14 dBi

Certificates

Certification

FCC/ ISED, Subpart 15 B, Subpart E 15.407, Subpart C/J RSS-102/247
CE, EN 301 893, EN 301 489-1/-17, EN 50385, EN 55032, EN 55024/EN 55034, EN 60950-1/-22, IEC 60529, EN 62368-1, EC 1275

Weight & dimensions

Width

100 mm

Depth

186 mm

Height

29 mm

Weight

504 g

Packaging data

Package width

126 mm

Package depth

234 mm

Package height

103 mm

Package weight

720 g

Package type

Box

Packaging content

Mounting kit

Yes

Operational conditions

Operating relative humidity (H-H)

0 – 90%

Operating temperature (T-T)

-20 – 60 °C

Storage temperature (T-T)

-40 – 80 °C

Storage relative humidity (H-H)

0 – 90%

Logistics data

Harmonized System (HS) code

85176990

Master (outer) case width

273 mm

Master (outer) case length

535 mm

Master (outer) case height

257 mm

Master (outer) case gross weight

8.14 kg

Products per master (outer) case

10 pc(s)
