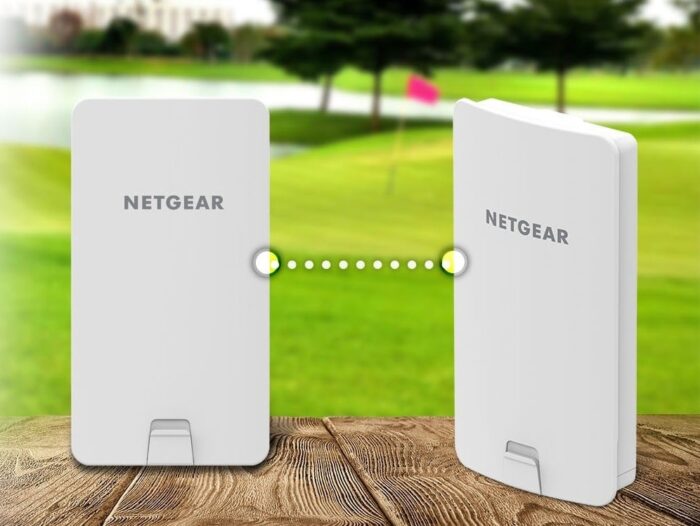

NETGEAR WBC502 Network Bridge 867 Mbit/s White

The NETGEAR WBC502 is a high-performance device offering a maximum data transfer rate of 867 Mbit/s and a transfer distance capability of up to 3000 meters. It supports various data transfer rates, including 802.11a with rates of 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s; 802.11n ranging from 6.5 to 300 Mbit/s (from MCS0 to MCS15); and 802.11ac ranging from 6.5 to 867 Mbit/s. The device features an internal antenna design with a maximum antenna gain level of 14 dBi. It supports Wi-Fi 5 (802.11ac) as its top Wi-Fi standard, with a WLAN data transfer rate reaching up to 867 Mbit/s and a signal strength of 23 dBm. The Ethernet LAN interface supports Gigabit Ethernet with data rates of 10, 100, and 1000 Mbit/s. The device offers both wired and wireless connectivity options.

Data transmission

Maximum data transfer rate
Maximum data transfer rate
867 Mbit/s
show more


Maximum transfer distance
Maximum transfer distance
3000 m
show more


Supported data transfer rates
Supported data transfer rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1 to 2)
show more

Antenna

Antenna design
Internal
show more


Antenna gain level (max)
Antenna gain level (max)
14 dBi
show more


Antennas quantity
1
show more

Wireless LAN features

Wi-Fi
Wi-Fi
Yes
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
show more


WLAN data transfer rate (max)
867 Mbit/s
show more


Signal strength
23 dBm
show more


Modulation
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet LAN interface type
Ethernet LAN interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired & Wireless
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more

Features

Product type
Product type
Network bridge
show more


Product colour
Product colour
White
show more


LED indicators
Yes
show more


Surge protection
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP55
show more


Wall mountable
Wall mountable
Yes
show more


Reset button
Yes
show more

Power

Power source type
Power source type
PoE
show more


Power consumption (max)
Power consumption (max)
8.93 W
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) voltage
Power over Ethernet (PoE) voltage
24 V
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-20 – 60 °C
show more


Operating temperature (T-T)
-4 – 140 °F
show more


Operating relative humidity (H-H)
0 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 80 °C
show more


Storage relative humidity (H-H)
0 – 90%
show more

Certificates

Certification
FCC / ISED, CE
show more

Weight & dimensions

Width
Width
186 mm
show more


Depth
Depth
100 mm
show more


Height
Height
29 mm
show more


Weight
Weight
504 g
show more

Packaging data

Quantity per pack
2 pc(s)
show more
