QSAN Dual-Controller DAS System, 10-Ported 12Gb SAS3 Ports, Redundant Power Supply, Slide Rail Kit (Optional)

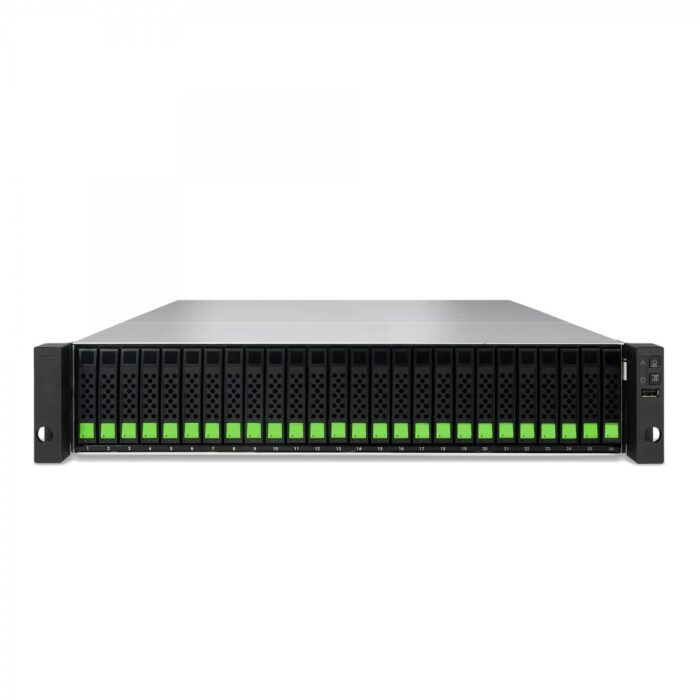

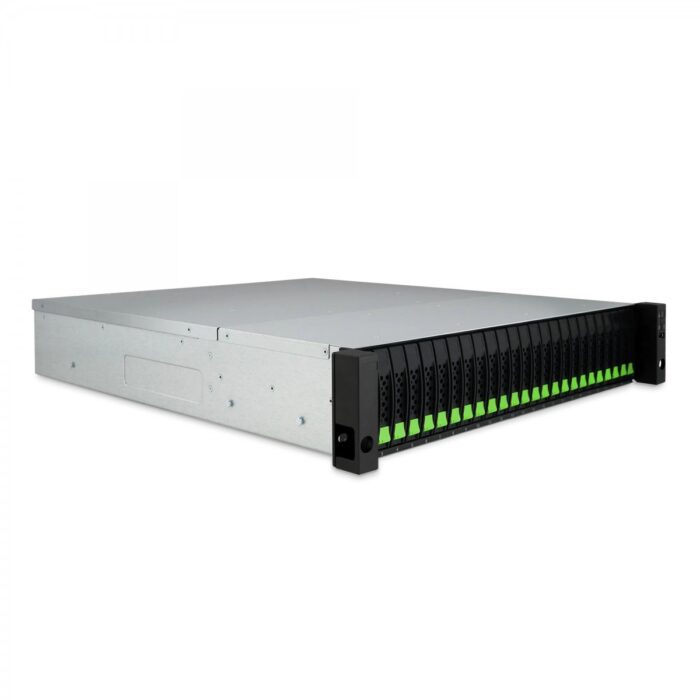

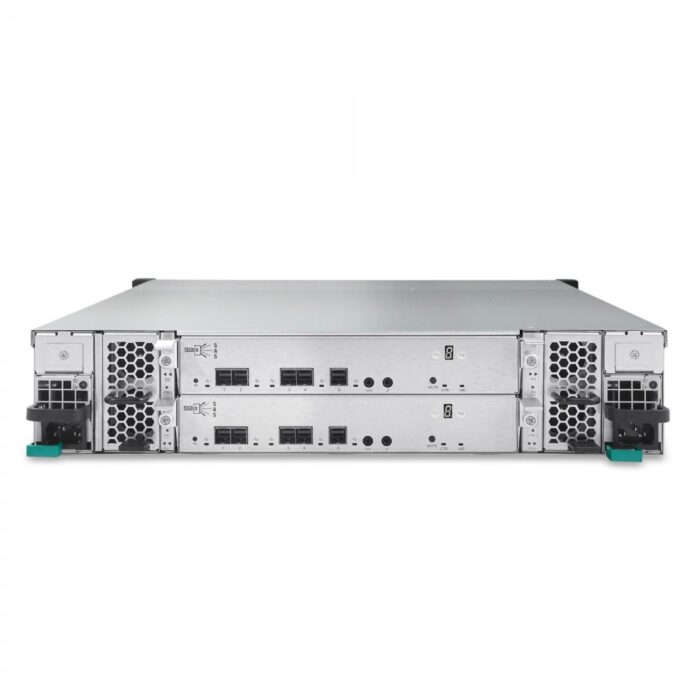

Product Description: The QSAN XCubeDAS XD5326-D is a storage device designed for large enterprise business environments. It features a total installed storage capacity of 0 TB and utilizes a Serial Attached SCSI (SAS) III interface for connecting storage drives. The device comes in a rack-mounted (2U) chassis type, making it suitable for data centers and structured environments. It supports up to 26 storage drives and is compatible with both HDD and SSD types, offering flexibility in storage solutions. The dimensions of the device are 438 mm in width, 491 mm in depth, and 88 mm in height, with a weight of 16.3 kg. The product is black in color, offering a sleek and professional appearance.

Storage

Storage drives installed
Storage drives installed
No
show more


Installed storage drive type
Installed storage drive type
No
show more


Total installed storage capacity
0 TB
show more


Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Number of storage drives supported
Number of storage drives supported
26
show more


Maximum supported storage capacity
Maximum supported storage capacity
399 TB
show more


Storage drive interface
Storage drive interface
Serial Attached SCSI (SAS) III
show more


Data transfer rate
Data transfer rate
12 Gbit/s
show more


Hot-swap drive bays
Hot-swap drive bays
Yes
show more

Ports & interfaces

USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more


SAS host port
Yes
show more

Design

Device class
Device class
Large Enterprise Business
show more


Chassis type
Chassis type
Rack (2U)
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Cooling
Cooling
Yes
show more


Number of fans
Number of fans
4 fan(s)
show more


Certification
CE, FCC, BSMI , VCCI , KCC
show more

Power

Number of power supply units
2
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


Power consumption (typical)
Power consumption (typical)
429 W
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more

System requirements

Server operating systems supported
Windows Server 2008, Windows Server 2012
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more

Weight & dimensions

Width
Width
438 mm
show more


Depth
Depth
491 mm
show more


Height
Height
88 mm
show more


Weight
Weight
16.3 kg
show more

Packaging data

Package weight
Package weight
18.6 kg
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
-10 – 50%
show more


Storage temperature (T-T)
Storage temperature (T-T)
20 – 80 °C
show more


Storage relative humidity (H-H)
10 – 90%
show more
