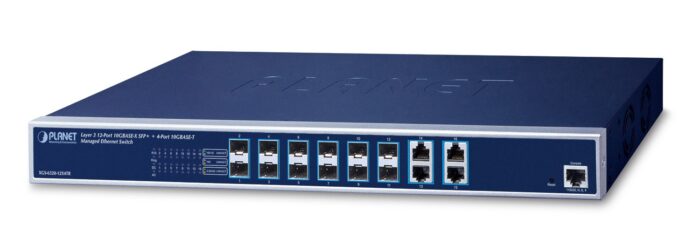

PLANET XGS-6320-12X4TR Network Switch Managed L3 10G Ethernet (100/1000/10000) 1U Blue

The PLANET XGS-6320-12X4TR is a managed switch that operates at Layer 3. It features four RJ-45 Ethernet ports that support 10G Ethernet (100/1000/10000). Additionally, it comes with 12 installed SFP+ modules. The switch supports full duplex communication and has a MAC address table capable of holding 32,000 entries. With a switching capacity of 320 Gbit/s, this switch adheres to various networking standards including IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, and IEEE 802.1x. It requires a DC input voltage ranging between 36 and 60 volts. Designed for rack mounting, it has a form factor of 1U.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more


Cloud-managed
Yes
show more


Web-based management
Web-based management
Yes
show more


Traffic classification
Yes
show more


ARP inspection
Yes
show more


System event log
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
4
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


10G Ethernet (copper) ports quantity
4
show more


Installed SFP+ modules quantity
Installed SFP+ modules quantity
12
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-learning supported
Yes
show more


MAC address auto-aging supported
Yes
show more


Auto-negotiation
Yes
show more


Link aggregation
Yes
show more


Flow control support
Yes
show more


Broadcast storm control
Yes
show more


Spanning tree protocol
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
320 Gbit/s
show more


Throughput
238.1 Mpps
show more


MAC address table
MAC address table
32000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
10240
show more

Security

DHCP features
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Blue
show more


Reset button
Yes
show more


LED indicators
Yes
show more


Number of fans
Number of fans
2 fan(s)
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


DC input voltage
36 – 60 V
show more


Power consumption (max)
Power consumption (max)
40 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
200 mm
show more


Height
Height
44.5 mm
show more


Weight
Weight
2.83 kg
show more

Certificates

Certification
FCC Part 15 Class A, CE
show more
